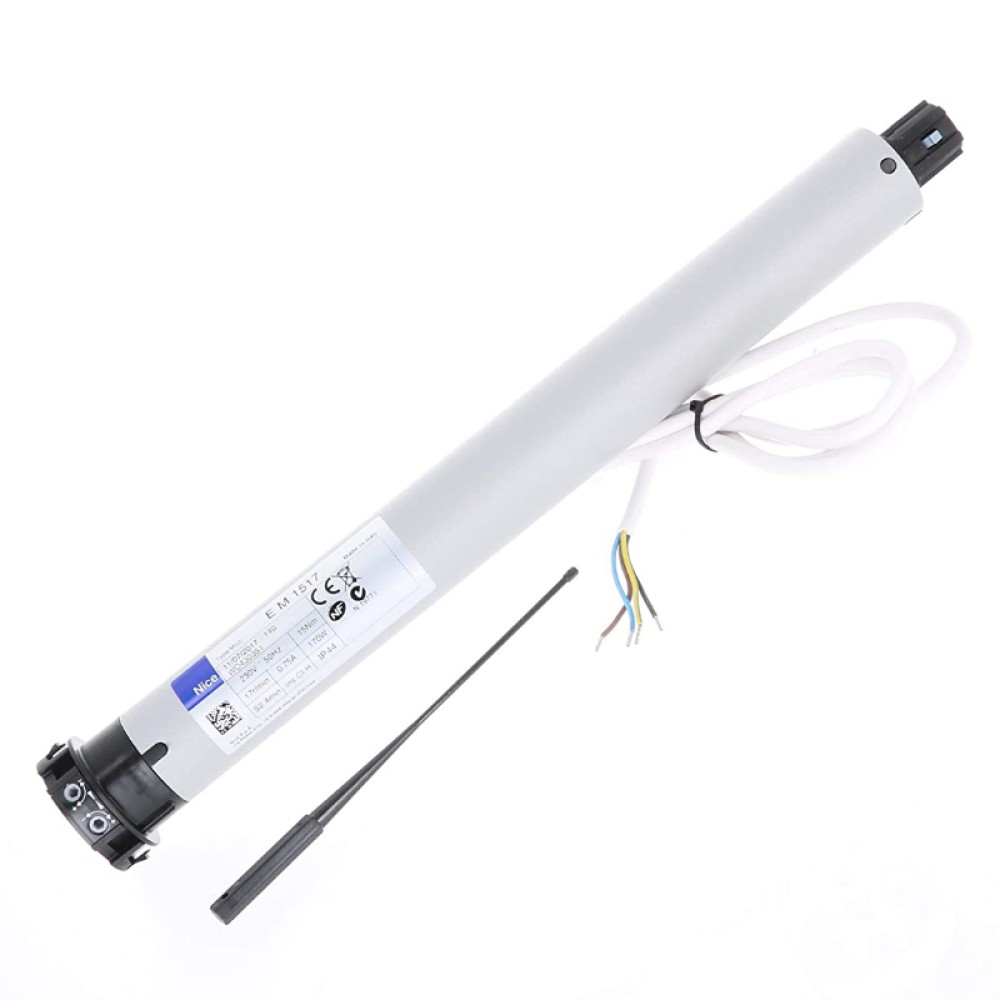

Nice Era roller shutter motorization EM 1517 KIT 15Nm
The

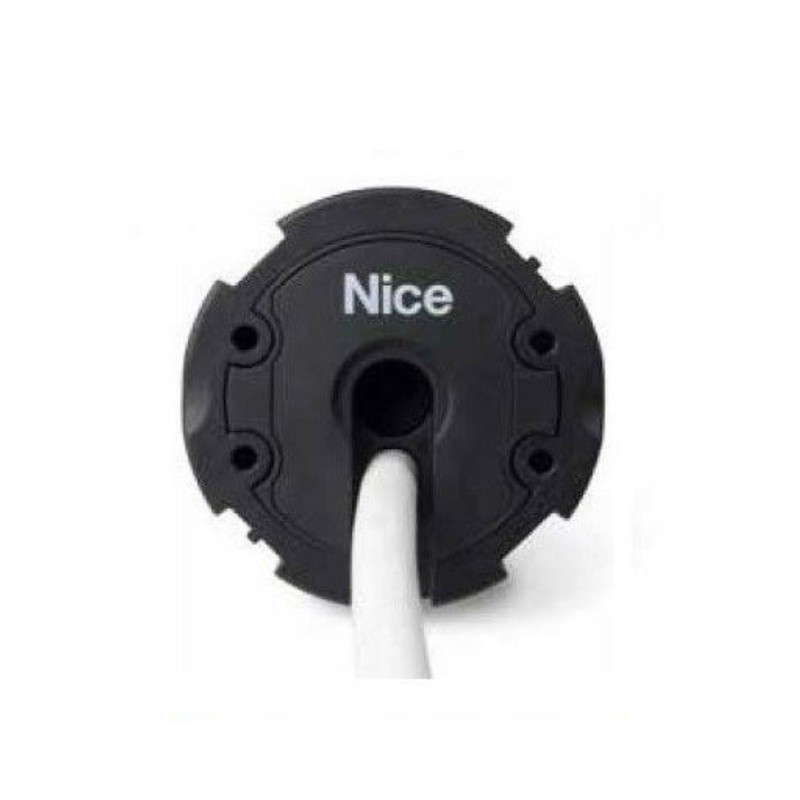

Nice EM 1517 motor is ideal for maintenance and replacement of previous applications, thanks to the new head with a shape compatible with the star-shaped supports.
Easy maintenance and
installation flexibility , thanks to the new extractable power cable.
Intuitive adjustment of the ascent and descent limit positions thanks to the mechanical limit switch.
Easy to install thanks to the new dedicated supports and the coupling drive wheel fixing system.
Advantages of shutter morization Nice Era EM 1517 KIT
- Tubular motor with mechanical limit switch;
- Ideal for curtains and shutters;
- Suitable for every need, usable both for large applications;
- Particularly suitable for compact applications: useful length of 426 mm;
- Simple and practical;
- Intuitive adjustment of the ascent and descent limit positions thanks to the mechanical limit switch.
Technical features Nice Era EM 1517 KIT
- Nice Era EM 1517 KIT tubular motor for rolling shutters;
- Size M: Ø 45 mm;
- Protection index IP44.
ELECTRICAL DATA
- Power supply (Vac / Hz): 230/50;
- Absorption (A): 0.75;
- Power (W): 170.
PERFORMANCE DATA
- Torque (Nm): 15;
- Speed (rpm): 17;
- Weight lifted * (kg): 28;
- Number of laps before the stop: 27;
- Operating time (min): 4.
DIMENSIONAL DATA
- Length (L) (mm): 451;
- Motor weight (kg): 1.75;
- Packaging dimensions (mm): 90x90x440.
Nice automation systems for rolling shutters
Nice wants to improve people's quality of life by
simplifying everyday movements.
An
automation system for roller shutters is the simplest solution for a functional and always well protected home.
Make yourself comfortable, with Nice comfort and practicality are at your fingertips!
