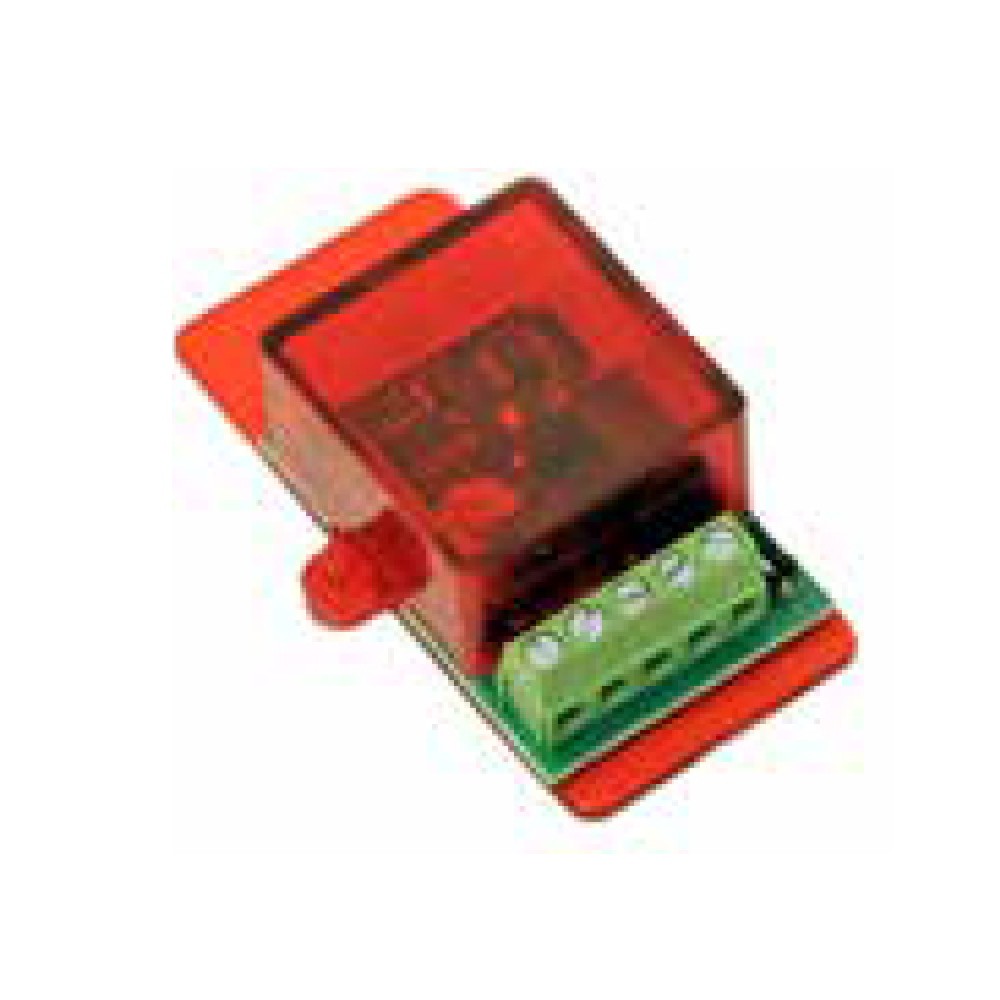

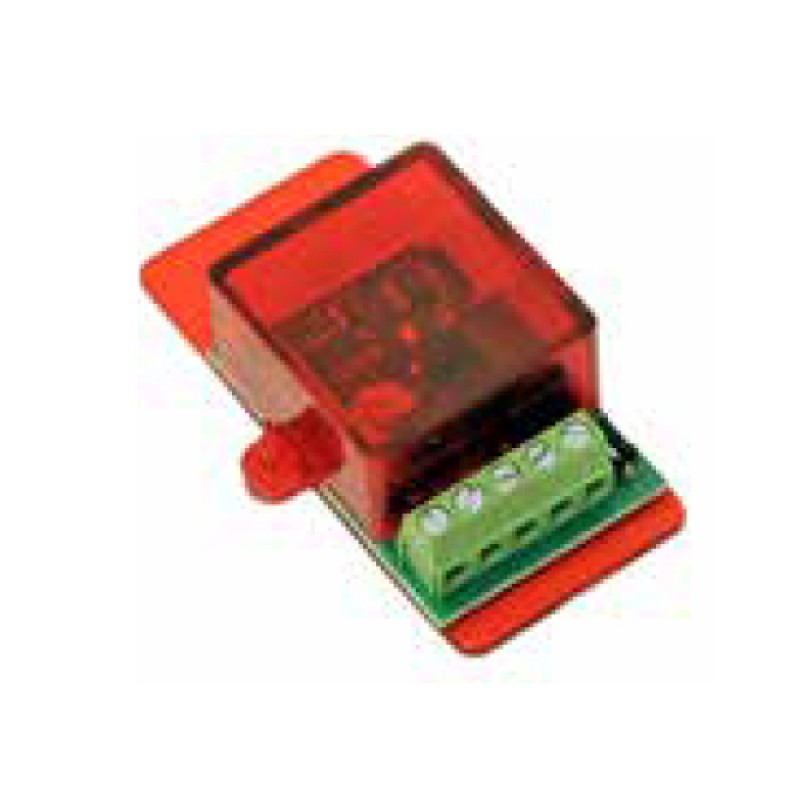

Mini Single Channel Receiver for Electric Locks 55418 Opera Profilo Series
Single channel receiver for door opening command.
It allows, in an extremely simple way, to control any electric lock via a radio control without the aid of an additional power supply. For this reason it can also be applied to already installed electric locks.
Features Mini Single-Channel Receiver for Electric Locks
- Black ABS box - Dimensions: mm. 77 x 37 x 21.
- Power supply: 12/24 Vac/dc.
- Current: 50 mA max with relay active.
- Frequency: 433.92 MHz.
- Memorable codes: 23 different fixed or Rolling Codes.
- Output: via C./NO relay contacts in stable or bistable mode.
- Range: 50/80 meters with wire antenna supplied in the package.

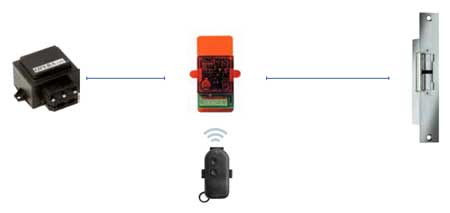

Application example mini receiver Opera 55418
Opera Profile Series
- Elegant and innovative series of indicator lights.
- High efficiency LED lighting.
- Standard version Red/Green as door status indicators.
- White / Blue version as lighting system or step light.
- Small size for insertion in narrow door profiles.
- Intercom porter version with the same dimensions.
