Mini Safety Electromagnet 300 Kg in Aluminum to be inserted 13500 Opera Safety Series

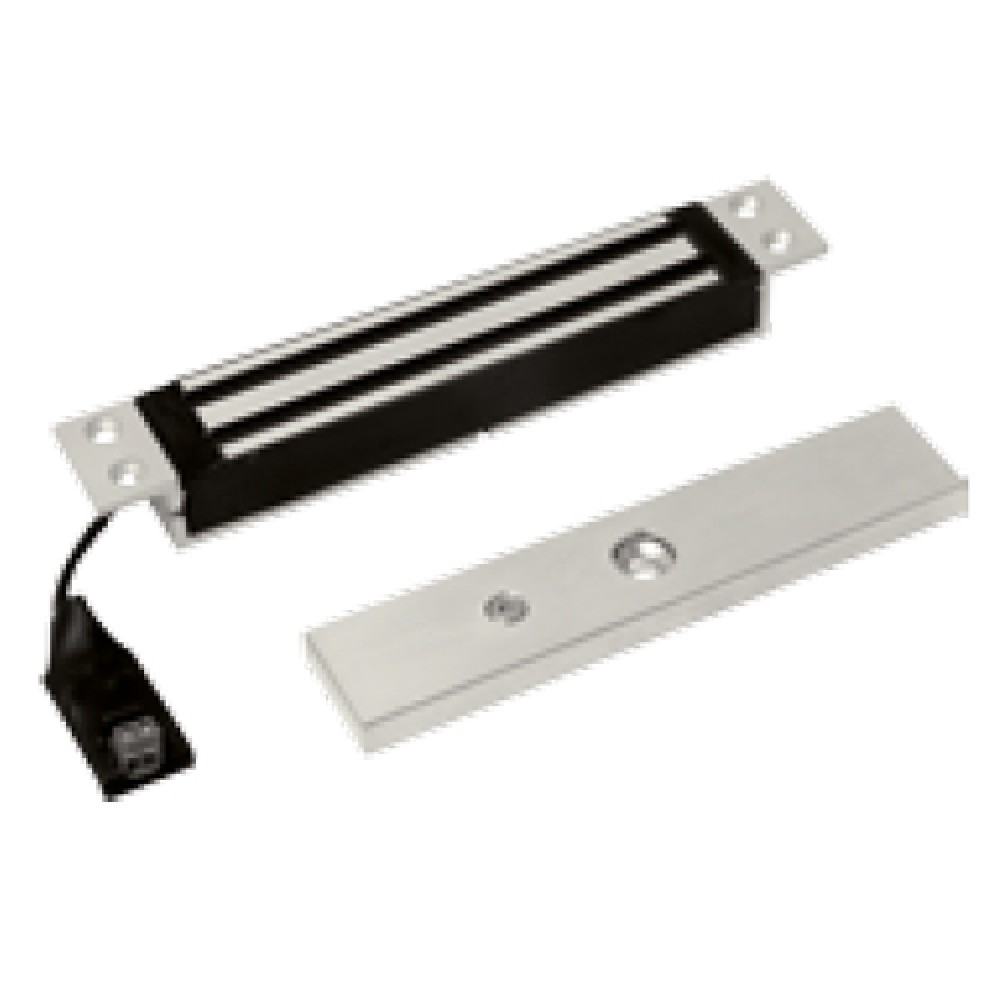

Mini safety electromagnet , Opera code 13500 (300 Kg) is a closing system for sliding doors. Version: to be inserted.
The Mini Opera 13500 electromagnet is a closing device designed for sliding doors, offering a traction force of up to 300 kg. This electromagnet is part of Opera's Safety Series, known for its reliability and quality.
Technical characteristics Mini safety electromagnet
- Silver anodized aluminum support brackets
- Dimensions: mm. 227 x 38 x 27
- Strike plate with anti-residual magnetism pin: mm. 185 x 37 x 12
- Power supply: 12/24 Vdc (useful for the French market)
- Current: 500mA at 12V/250mA at 24V
- Traction force: up to 300 kg.
Packaging
Electromagnet, counterplate and mounting accessories
Discover the products of the Safety Opera Series
- Safety electromagnets
- Ideal for emergency exits and newel doors of condominiums
- Silent and resistant
- Tractive forces from 150 to 1,500 kg.
- Applicable on pre-existing doors
Electromagnets Opera Operating Access
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century.
The company is characterized by continuous expansion in world markets but with strong roots in Italy.
