Mini Electromagnet with Handle and Closing Timer for Condominium Doors - 14700TD Opera Safety Series

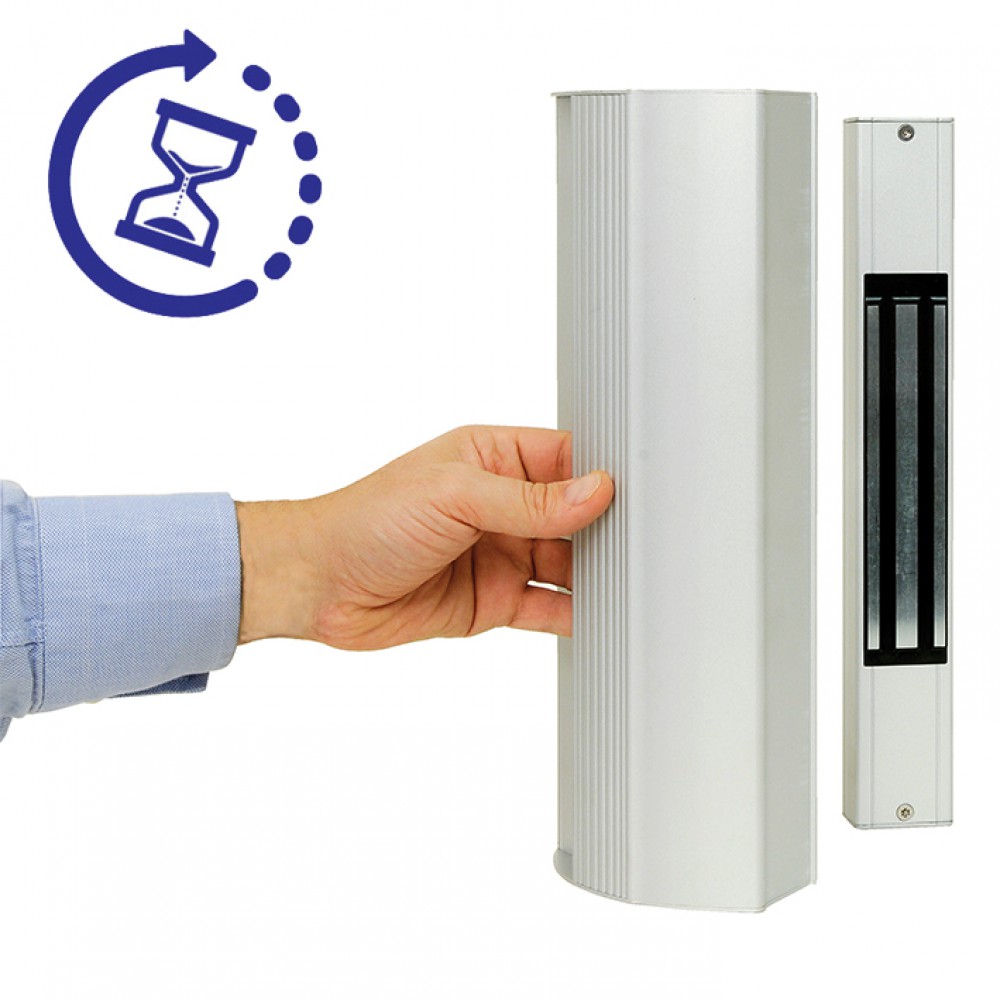

Mini electromagnet with handle Opera 14700TD is a safety locking system for swing doors (e.g. condominium doors).
The Opera 14700TD Mini electromagnet with handle is an
innovative safety locking system designed specifically for swing doors , such as condominium doors. This device is part of
Opera's Safety Series , renowned for its quality and reliability.
Mini Opera 14700TD electromagnet version
- To apply;
- With status sensor and reclosing timer.
Technical characteristics Mini Electromagnet with Handle Opera 14700TD
- Anodized aluminum body
- Electromagnet body and handle in aluminium
- Dimensions of the magnet body mm. 324 x 48 x 29
- Dimensions of the handle cover mm. 333 x 124 x 62
- Strike plate with anti-residual magnetism pin inserted in the handle body
- Power supply: 12/24 Vdc (useful for the French market)
- Current: 500mA at 12V/250mA at 24V
- Hall effect electronic status sensor for checking whether the door is locked/unlocked
- Relay output with C./NO/NC contacts
- Traction force: up to 300 kg.
- Internal reclosing timer adjustable by trimmer from 1 to 90 sec.
Pack 14700TD Opera
Opera 14700TD Mini Electromagnet with Handle, counterplate and mounting accessories.
Electromagnet color of your choice
System for condominium doors
Inward 14700TD Opera
- Intercom
- Opening button for disabled people
To the outside 14700TD Opera
- Entrance with lock and key
- Opening/closing LED traffic light
- Opening with remote control
- Opening with magnetic card reader
The electromagnets of the Modena blacksmith
Why do many condominiums in Modena have electromagnets? In the 1960s in Modena there was a locksmith who wanted to improve the locking of condominium doors. In fact, many condominium owners complained about the continuous maintenance costs. One day the blacksmith arrived with a magnet that would solve that annoying problem. Word of mouth did the rest and to this day Modena maintains this primacy, obviously no longer with simple magnets, but with modern and more effective electromagnets.
Safety Opera Series
- Safety electromagnets
- Ideal for emergency exits and newel doors of condominiums
- Silent and resistant
- Tractive forces from 150 to 1,500 kg
- Applicable on pre-existing doors
Mini Opera 14700TD electromagnet by Opera Operating Access
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
Electromagnets Made in Italy
Over 40% of the turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and the quality of work. We are proud to produce and live in Modena, a town in northern Italy which has been included in the UNESCO world heritage site since 1997.
