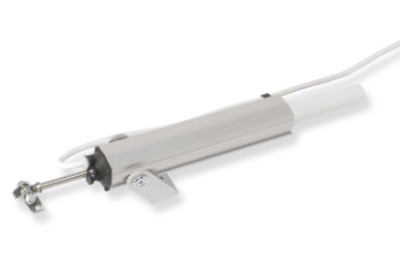

Mingardi D4 Fce - Rod Actuator for Windows - T-connection - Stroke 180mm

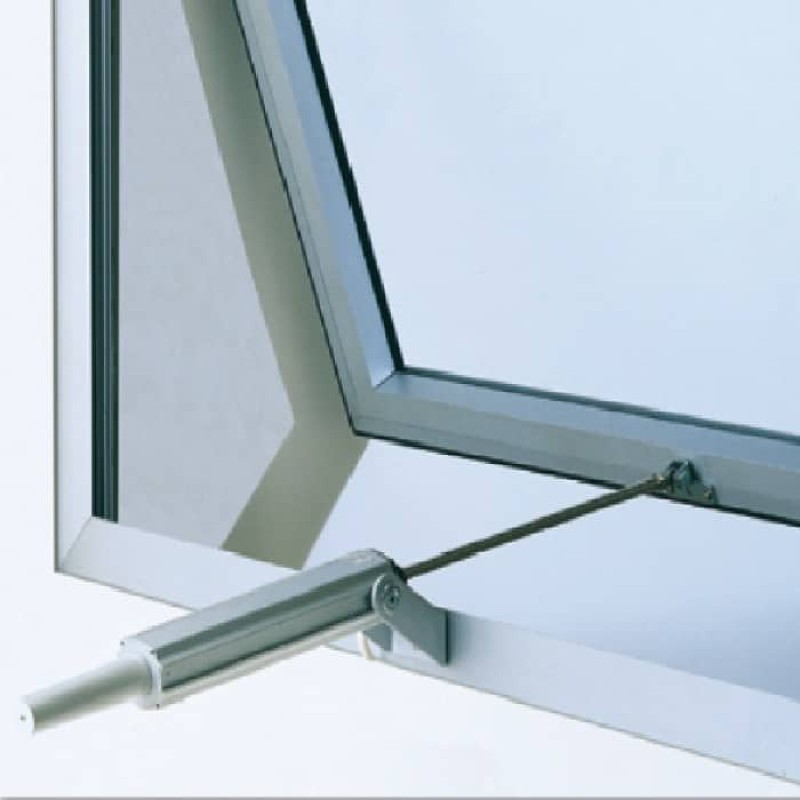

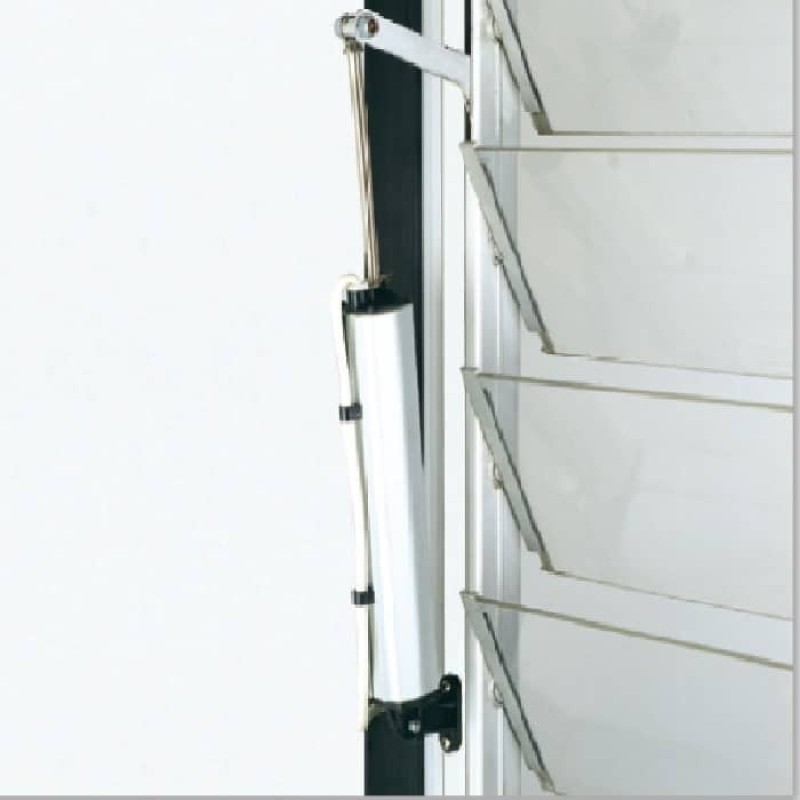

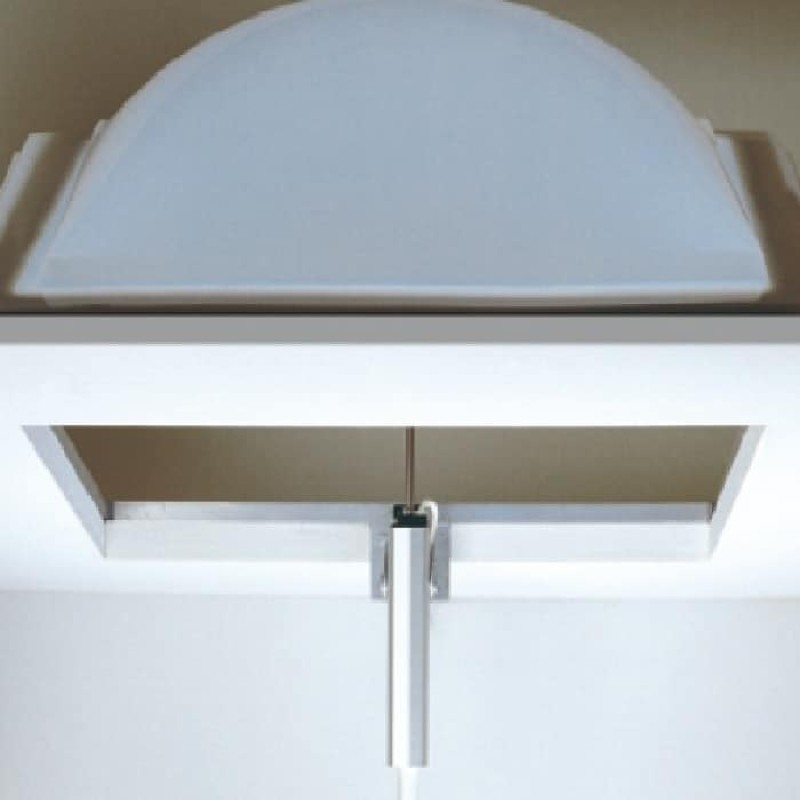

Mingardi D4 Fce is a small size electric actuator for window automation. It is a high-strength model, equipped with a fixing bracket that slides along the body of the actuator.
Mingardi electric linear actuator with
rigid rod movement with high resistance to peak loads . Operation with 230V~ / 50Hz power supply voltage.
- Compliant with Directives 2006/95 LVD - 2004/108 EMC.
- Equipped with limit switch microswitches and relays for parallel connection.
- Built-in thermal protection.
- Color: anodized silver. Complete with fixing accessories.

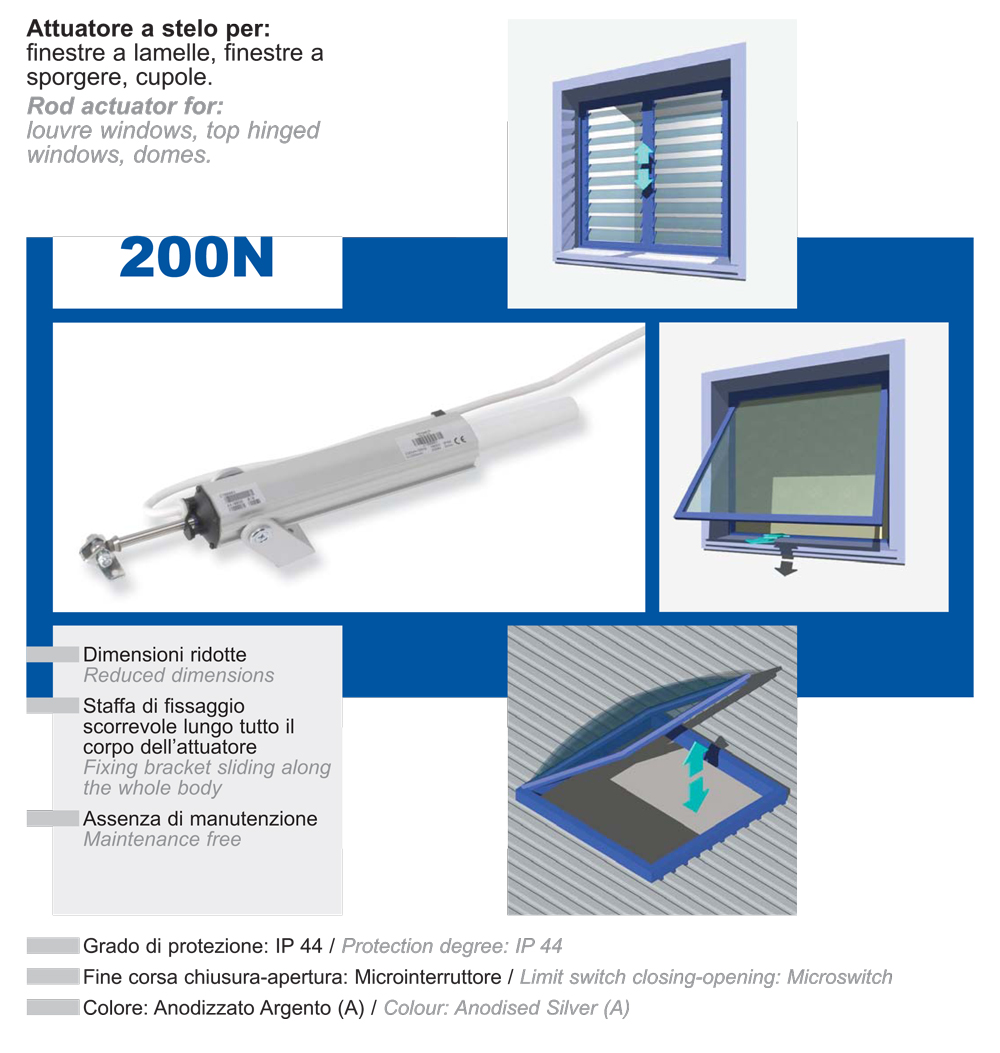

Mingardi D4 Fce - Technical features:
- Small size;
- Fixing bracket sliding along the whole body of the actuator;
- Absence of maintenance;
- Degree of protection: IP 44;
- Closing - opening limit switch: microswitch;
- Color: anodized silver.
Technical data*
| Code |
Description |
Voltage |
Push Traction |
Race |
Max absorption |
Minimum speed |
| 2700002 |
D4 180mm "T" - (A) |
230V ~ /50Hz |
200N |
180mm |
160W |
approx. 30mm/s |
*The performance values shown in the table are verified at a temperature of -10°C/+40°C, with a maximum relative humidity of 60%.

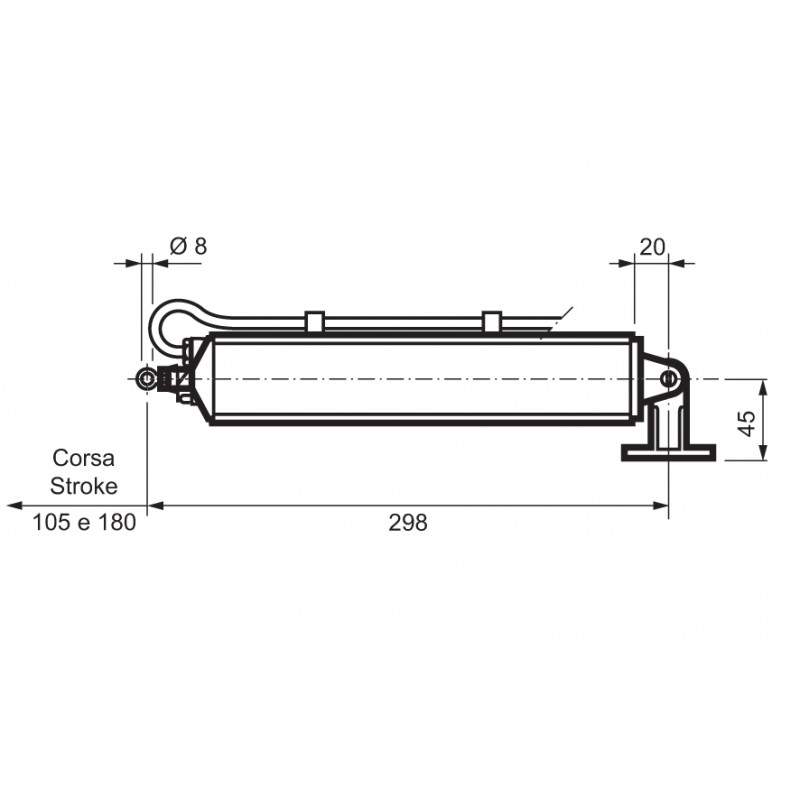

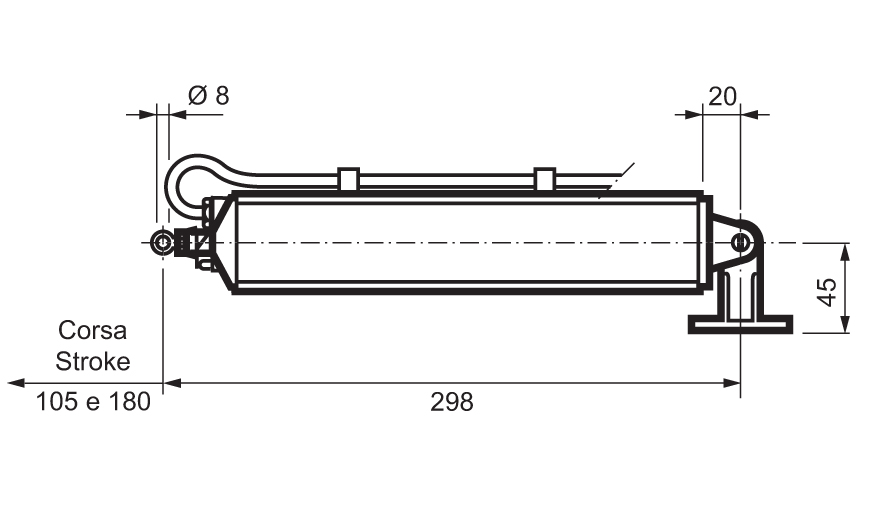

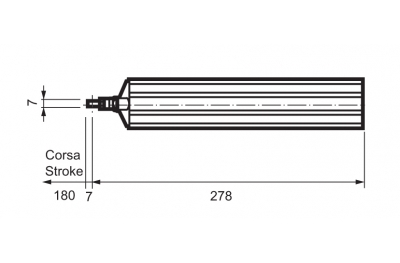

Mingardi D4 Fce - Rod Actuator for Windows - Technical Drawing
