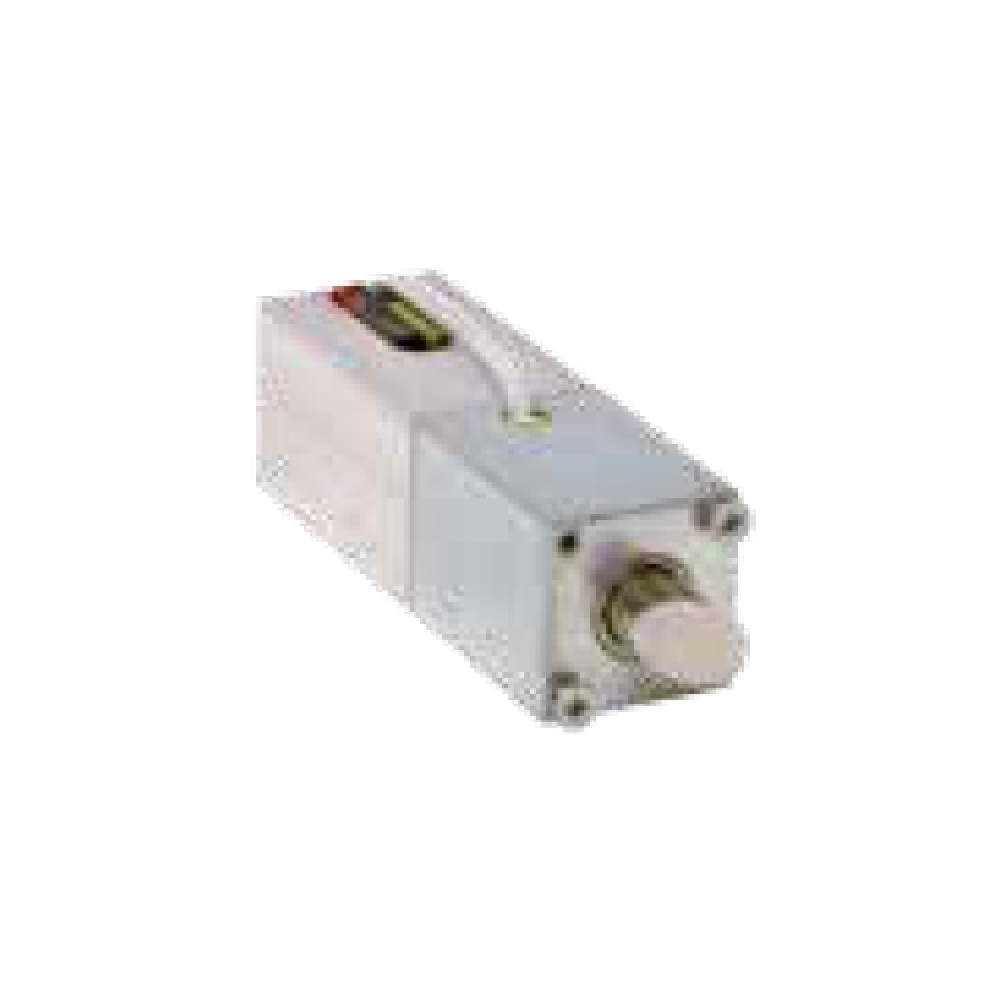

Micro Solenoid Lock With Latch Closed Without Power 20913-12 Quadra Series Opera
Use
Micro solenoid lock with latch closed without power.
Available alimentation:
- 12V
- 24V
Characteristics
Closed without power.

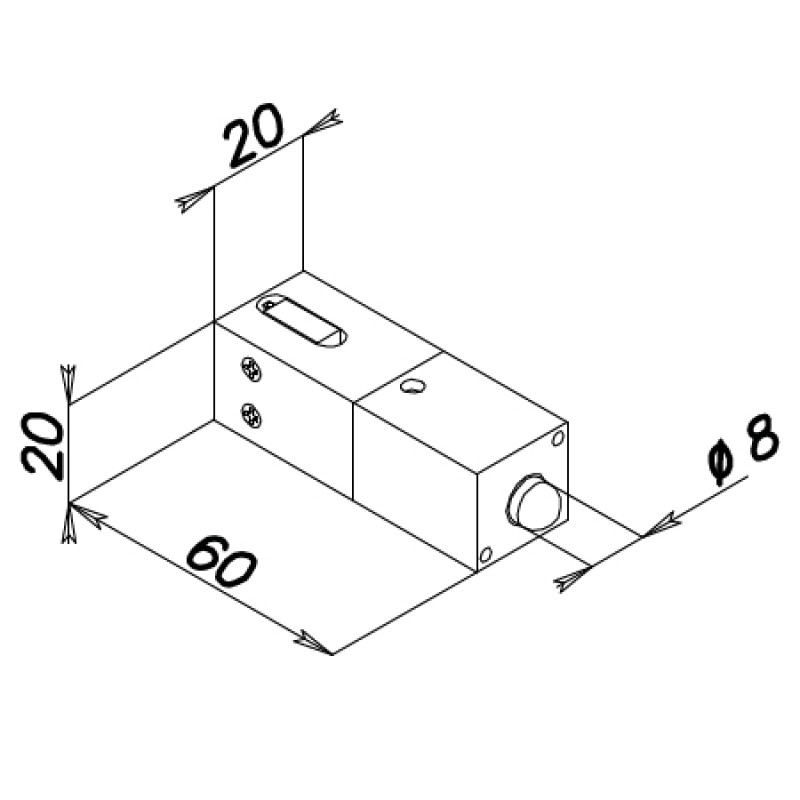

Latch diameter (mm) 8, extension 12 (8 mm. stroke).
Operating voltage: 12 Vdc/400mA or 24Vdc/200mA - ED 100%.
Mode of operation: horizontal (vertical on request).
Deadbolt position micro-switch C./N.O./N.C.
IMPORTANT
The Quadra Micro series solenoid lock, due to the high operating temperatures, are not suitable for mounting on wood or PVC doors.
Quadra Series Opera
Horizontal security solenoid locks.
Application on doors and rolling shutters.
Micro version for cabinets and windows application.
Manual activation with European cylinder.
Easy installation.
