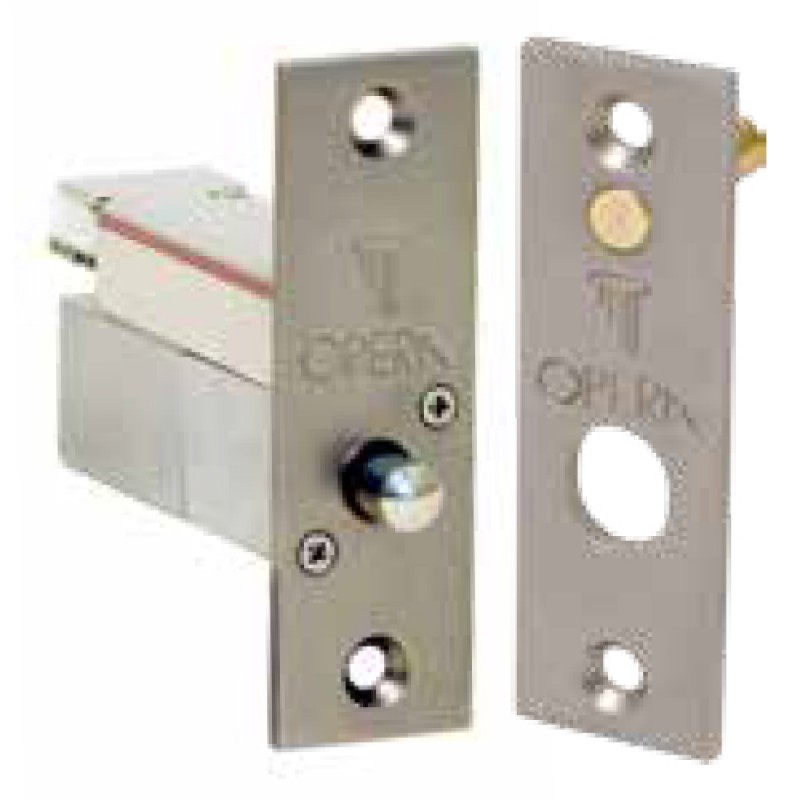

Micro Solenoid Lock With Internal Electric Fail Secure Closed Without Power 20812 Quadra Series Opera
Use
Micro solenoid lock with internal electric fail secure closed without power.
Characteristics
Fail secure
Front plate and striking plate in stainless steel mm 80 x 25 x 4.
Striking plate with adjustable magnet for door status position.
Bolt dimensions: diameter 8mm, extension 8.
Operating voltage: 12Vdc - 400 mA peak, 270 mA for maintenance 24Vdc - 300 mA peak, 150 mA for maintenance.
Internal microprocessor control electronic.
Rapid plug-in connector.
Bolt position free voltage contact C. / N.O. / N.C.
Push buttons for monitoring and adjustment of reclosing times from 0-5 sec. to approach of door and from 0-60 sec. if the door is not opened.
Mode of operation: horizontal (vertical on request).
IMPORTANT
The Quadra Micro series solenoid lock, due to the high operating temperatures, are not suitable for mounting on wood or PVC doors.
Quadra Series Opera
Horizontal security solenoid locks.
Application on doors and rolling shutters.
Micro version for cabinets and windows application.
Manual activation with European cylinder.
Easy installation.
