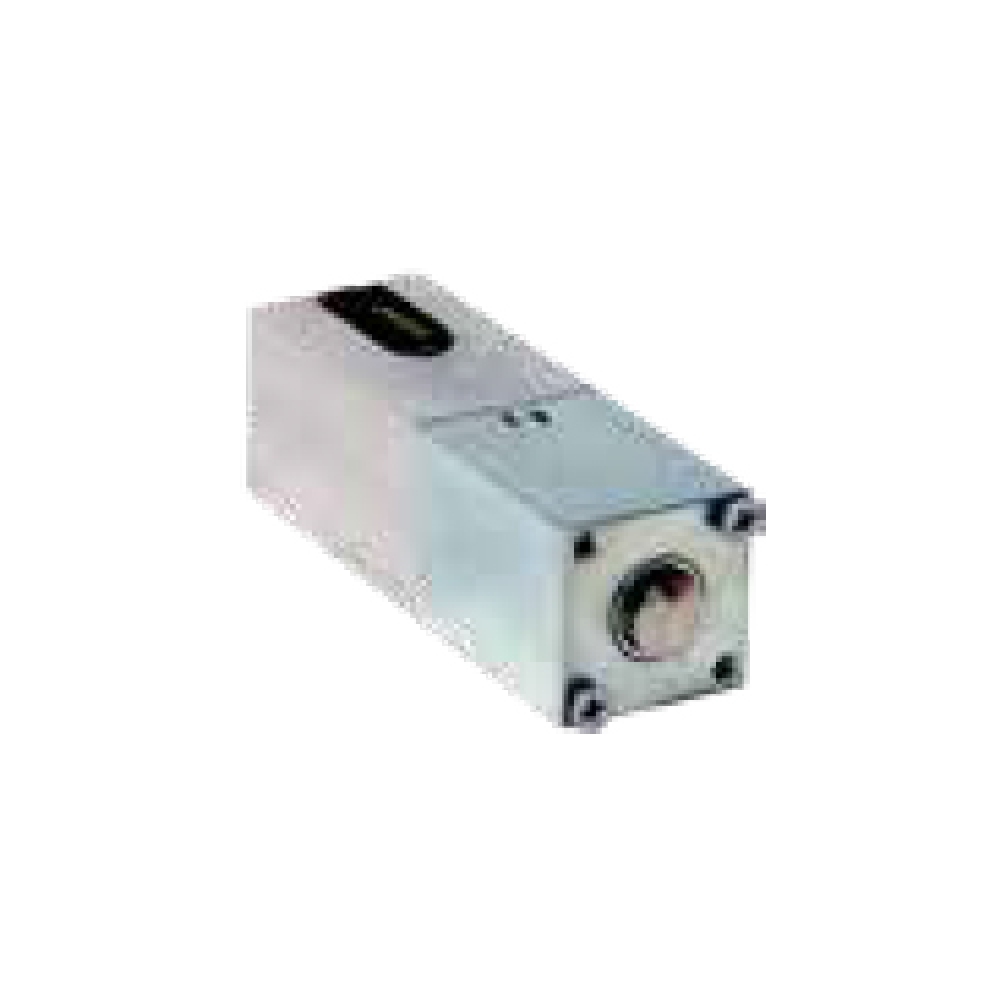

Micro Solenoid Lock 20613-12 Opera - Open in the absence of power
Micro electropiston open in the absence of power.
Available Power Supplies 20613-12 Opera
Features Micro Solenoid Lock 20613-12 Opera
- Open when power is off.

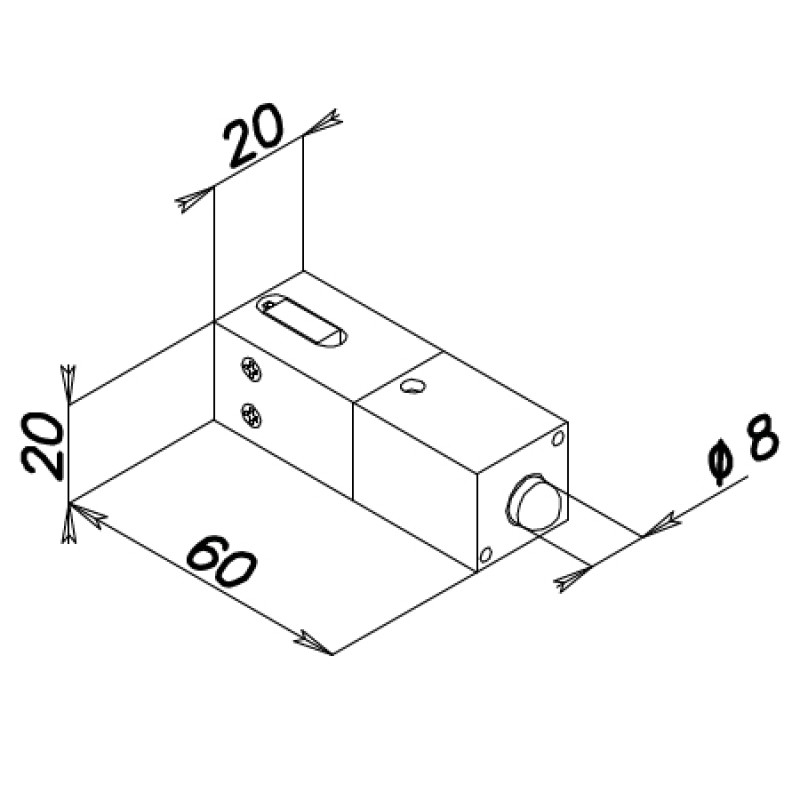

- Deadbolt diameter 8 mm, extension 11 mm (8 mm of travel).
- Power supply: 12 Vdc/400 mA or 24 Vdc/200 mA - ED 100%.
- Operation: horizontal (vertical on request).
- Microswitch C./NA/NC for deadbolt position.
IMPORTANT Micro Electropistons Opera
Due to their high operating temperatures, the Quadra Micro series electrolocks are not suitable for mounting on wooden or PVC doors.
Quadra Opera Series
- Horizontal safety solenoids.
- Applicable on doors and shutters.
- Micro version for application on shop windows and windows.
- Manual operation with European cylinder.
- Easy to install.
