Meeting Giesse Auctions Cremonesi Third Closing EC Series Silver Plus

Giesse
Brands: Giesse
Code: 01314K
€ 4,00
Prices excluding VAT
Availability: available in stock

- +
Meeting Giesse Auctions Cremonesi Third Closing EC Series Silver Plus
Silver Plus Series for EC (European Chamber)


FEATURES
Designed to be applied on the top and bottom of the frame of fixtures to one or more wings with the function of receiving the ferrules of the bolts and the terminals Giesse, or the operating rods appropriately shaped.

TECHNICAL FEATURES

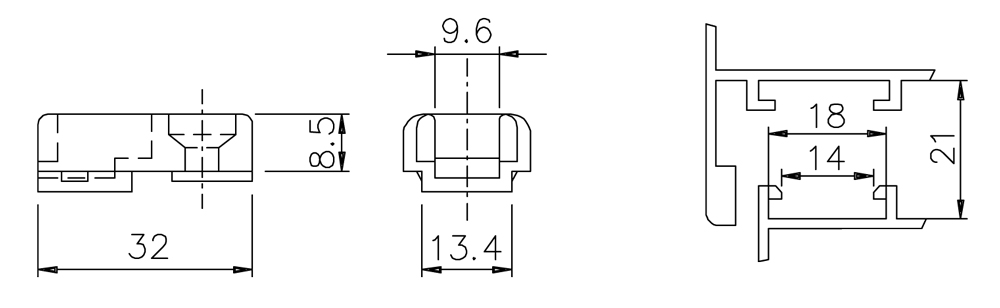

Specific to be applied on looms with overflow channel of 14 / 18mm.

On infix two hinged doors will have to combine two meetings on the riser bottom and two on the upper upright (one for the terminal and one for the deadbolt).

Quick Fixing achieved through cam plate and screw.

It can be used as a third closing, using the appendix drawn on the blocks connecting Cremonese or in combination with additional locking pins.

Sized to receive both terminals operated by Cremona and cariglioni Giesse, both deadbolts Giesse series Giap and Supergiap.

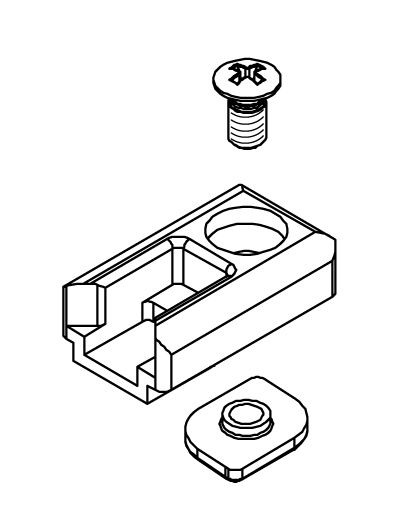

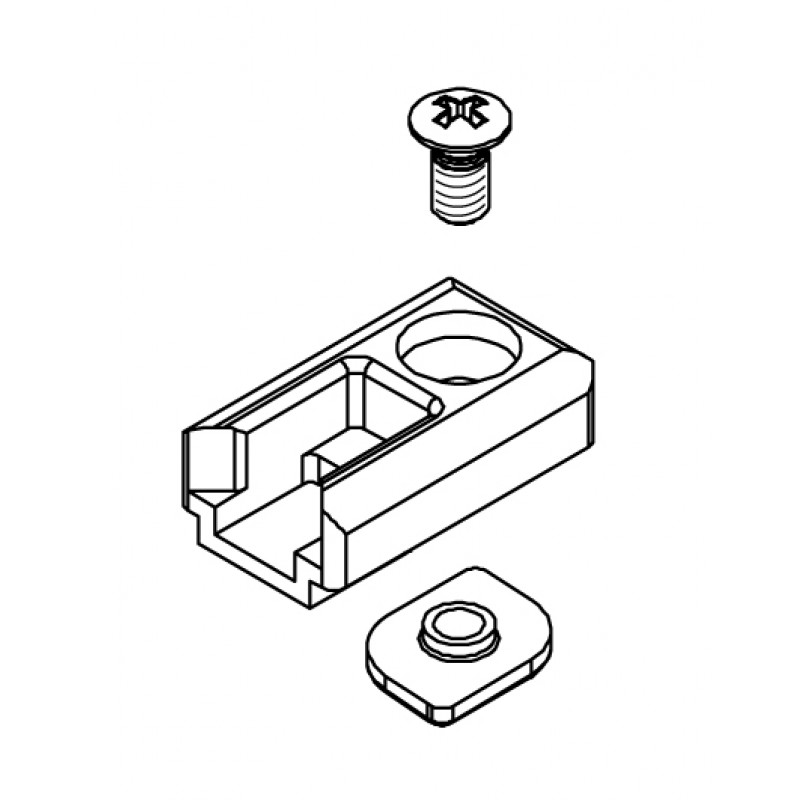

EQUIPMENT
1 plate cam threaded.
TGS 1 Screw M5 x 10 cross cutting.

MATERIALS
  • Galvanized steel screw.
  • Especially zinc die GS PLUS SILVER.
  • Plate cam in stainless steel.
