Adjustable Shutters Mechanism - KATIA MINI Crank - Rotary Chamber 25 or 36
The

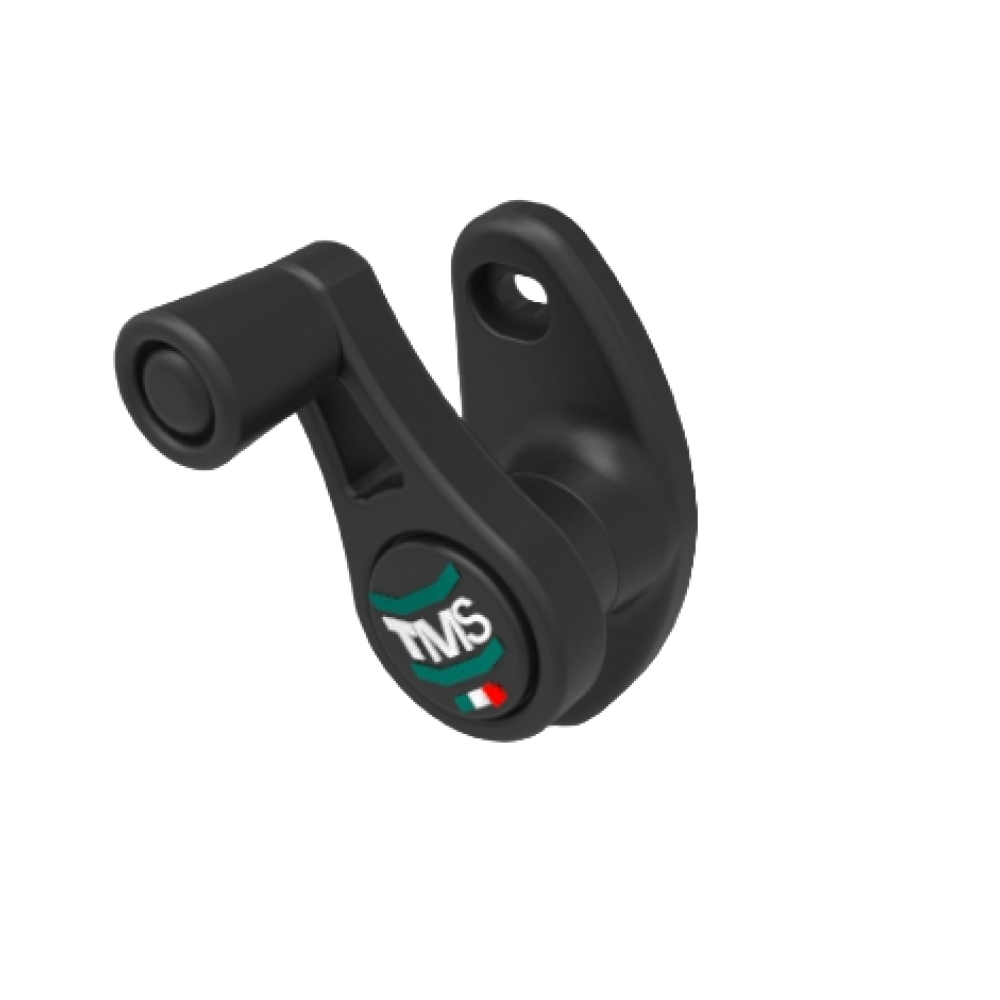

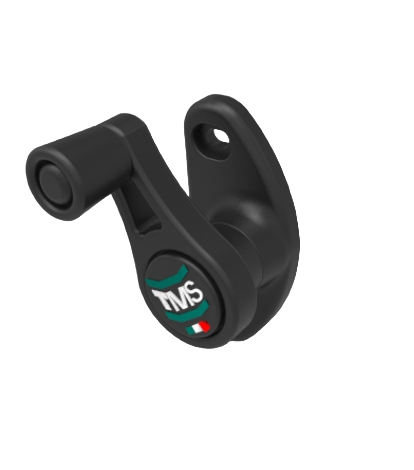

KATIA MINI TMS handle is the mini version of the Katia shutter handle, in fact, its length is
only 46 mm .
It can be mounted on
all Tecnometalsystem adjustable shutter mechanisms , it is assembled with the
rotary mechanism mounted on both bedroom doors 24-25 and bedroom doors 35-36 (select the variant you want).

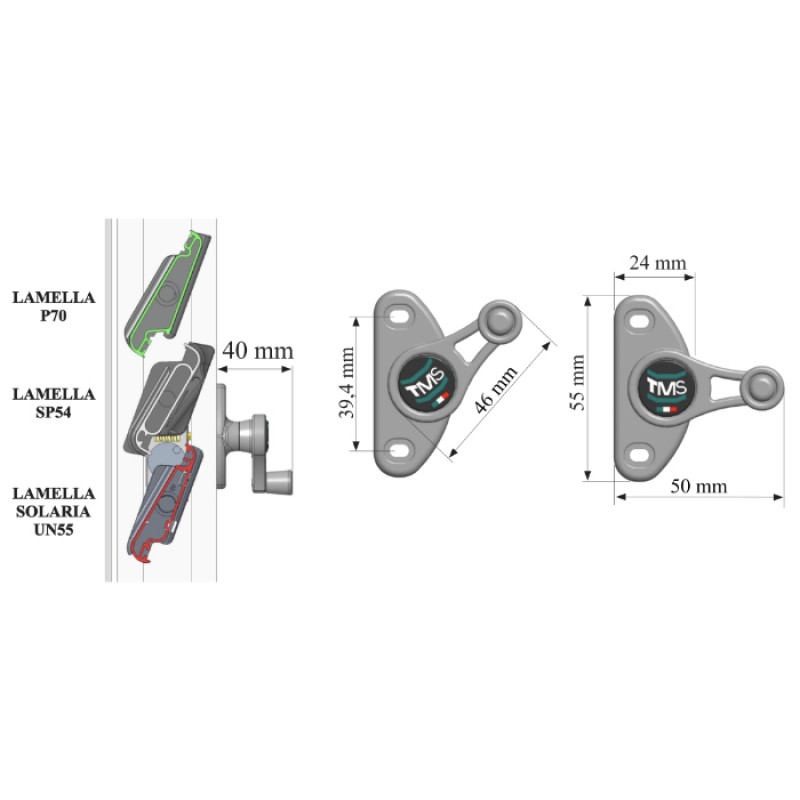

It has a footprint from the top of the door of 40 mm.
TMS adjustable shutter handles can be mounted on all types of slats.
Hole position for handle assembly
The rotary positioning hole is made using a 9 mm diameter drill bit and drilling according to the profile.
KATIA MINI Tecnometalsystem shutter crank versions
There are 2 different
versions of the KATIA MINI Tecnometalsystem crank.
You can select the version you want according to your need.
What are the versions of the KATIA MINI Tecnometalsystem crank? Here's the list:

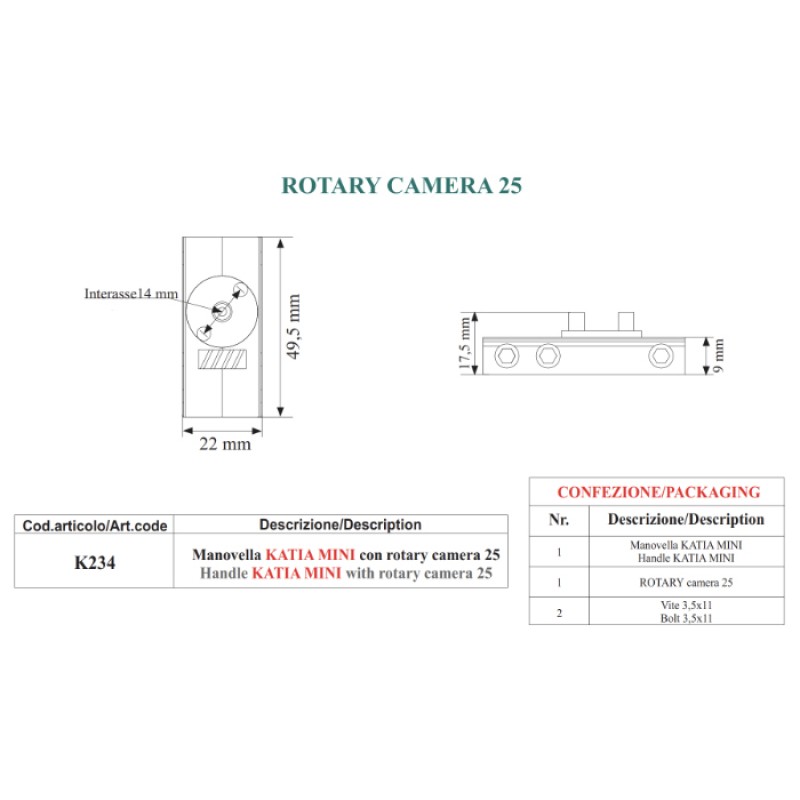

- K234 : KATIA MINI crank with rotary camera 25;

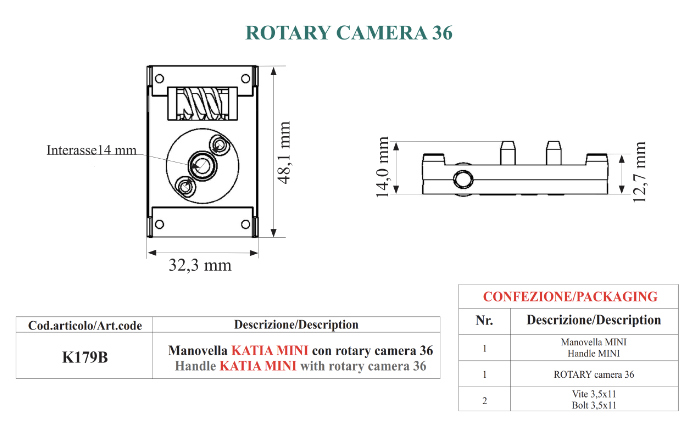

- K179B : KATIA MINI crank with rotary camera 36.
The package includes the KATIA MINI crank of the selected code and two 3.5x11 mm screws.
Choice of colors Tecnometalsystem Persian crank
Each version can be ordered in black or colored version.
The
standard version is black . The colors of
the colored version are: white, gray, brown, dark brown or green.
If you decide to buy the colored door stop we will ask you later which of these colors you would like to receive.
Tecnometalsystem shutter cranks for sale online
Tecnometalsystem (TMS) produces
mechanisms for moving the adjustable shutters .
TMS's goal is to help customers find the best solution by guaranteeing the quality and functionality of the product.
