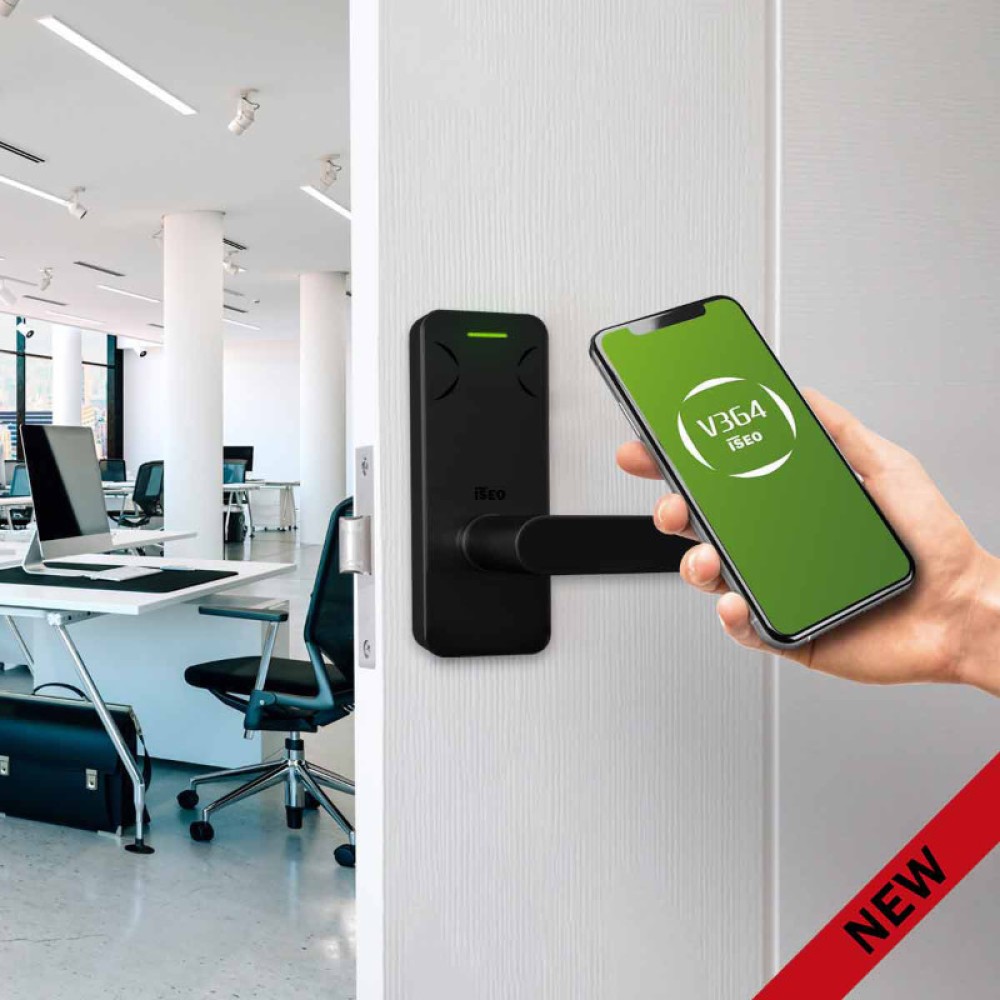

MA1A ISEO - Smart Connected Handle for V364 System - Ease. Functionality. Safety.
MA1A ISEO represents the latest innovation in the field of
smart locks of the ISEO Connected line, offering effective entrance management for companies, coworking spaces, utilities and hotel facilities.

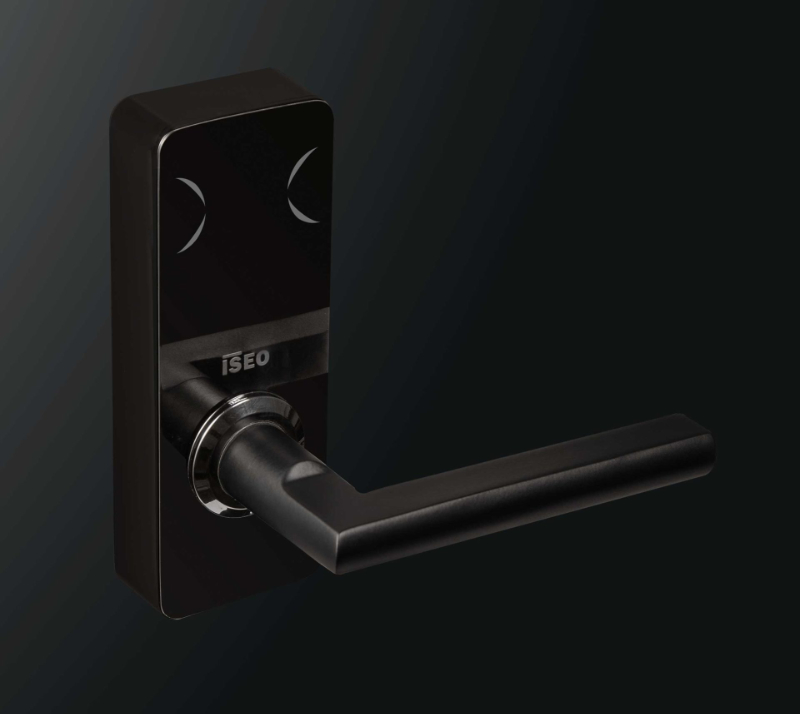

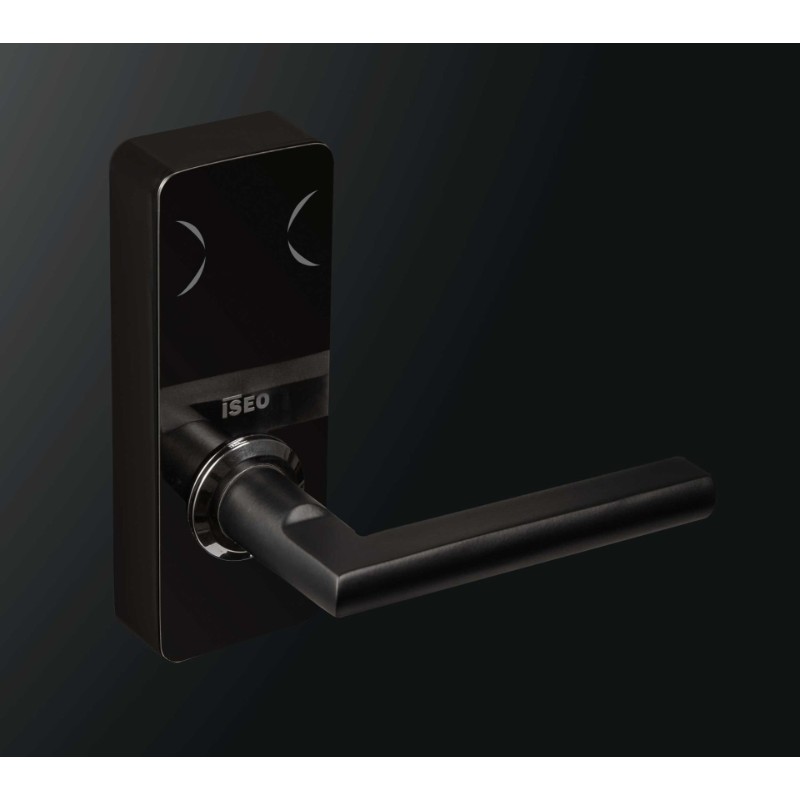

MA1A ISEO is an
electronic handle plate with RFID and Bluetooth 5.0 technology. Use in the local and remote management of gates in companies and commercial activities, co-working spaces, hotel contexts, utilities.
On Windowo you will also find the
MA1A Smart ISEO version for sale, ideal for managing access in small-sized environments, such as private homes, B&Bs, small hotels, professional studios, shops and small businesses.
MA1A ISEO - Technical characteristics
The
compact and elegant shape , typical of Made in Italy, makes the MA1A ISEO connected lock an excellence in the sector and the ideal solution for upgrading internal doors.
The
installation of the handle is quick and intuitive , and is compatible with all existing DIN mechanical locks.
MA1A ISEO is
battery powered , ensuring reliable operation even in the event of power outages.
Electronic handle plate with Multistandard RFID technology, compatible with Mifare Classic or Mifare DesFire, and Bluetooth 5.0, usable with Badge, Keyfob, Bracelet and iOS and Android Smartphone credentials with Bluetooth Smart Ready with ISEO V364, Luckey and LSA application, system management locally and remotely.
CE, UKCA, EN16867:2020, EN1634-1 certified device. Protection degree IP54, HR 95% max without condensation.
Can be combined with locks. Min. entry. = 35 mm, Max. diameter of the ring nut = 52 mm, min. distance between centres. = 70 mm, DIN holes = 38 mm, Angle of rotation max. handle angle 40° 7, 8 and 9 mm handle follower (*), Latch only locks with automatic deadbolt recommended, Door thickness = 40 125 mm, Max. of the door = 250 Kg, 1320 x 2520 mm (WxH).
Operating temperature -20°C ÷ +60°, storage temperature -20°C ÷ +70°C.
Technopolymer material, glossy black colour. 3-colour LED lights: green, red, blue. Multi-frequency buzzer. Device dimensions Height 147 mm, Width 56 mm, Depth 24 mm. Door installation. Power supply: 3 1.5V AAA alkaline batteries.
MA1A ISEO - Functional characteristics
- Power on by RFID detection and BLE smartphone
- Low energy consumption device
- Real Time Clock/Calendar
- Luminous and acoustic signals
- Opening function (office function)
- Field upgradeable software
MA1A ISEO - Supply included
MA1A module, 3 alkaline batteries (1.5V AAA), anti-tilt kit, 2.5x5 Torx key.
MA1A ISEO is compatible with various suites
Depending on the environment in which it is installed, the MA1A Connected Smart Handle
can be integrated with the various ISEO suites , including V364, Luckey and LSA:
- V364 is a web-based, user-friendly access control system suitable for managing access to doors, both online and offline, for small and medium-sized buildings.
- Luckey is a cloud-native platform designed specifically for real estate entry management, including coworking, co-living, and condominium spaces.
- LSA is a customizable and secure suite aimed at companies operating in specific sectors such as electricity, gas, water, solar energy, wind and telecommunications.
Discover this innovative and versatile smart handle, which offers the convenience of
keyless access and the security of a reliable system, guaranteeing total freedom of movement.
For access control in more confined spaces, such as private homes, B&Bs, small hotels, professional studios, shops and small businesses, it is possible to opt for the
Argo system .
