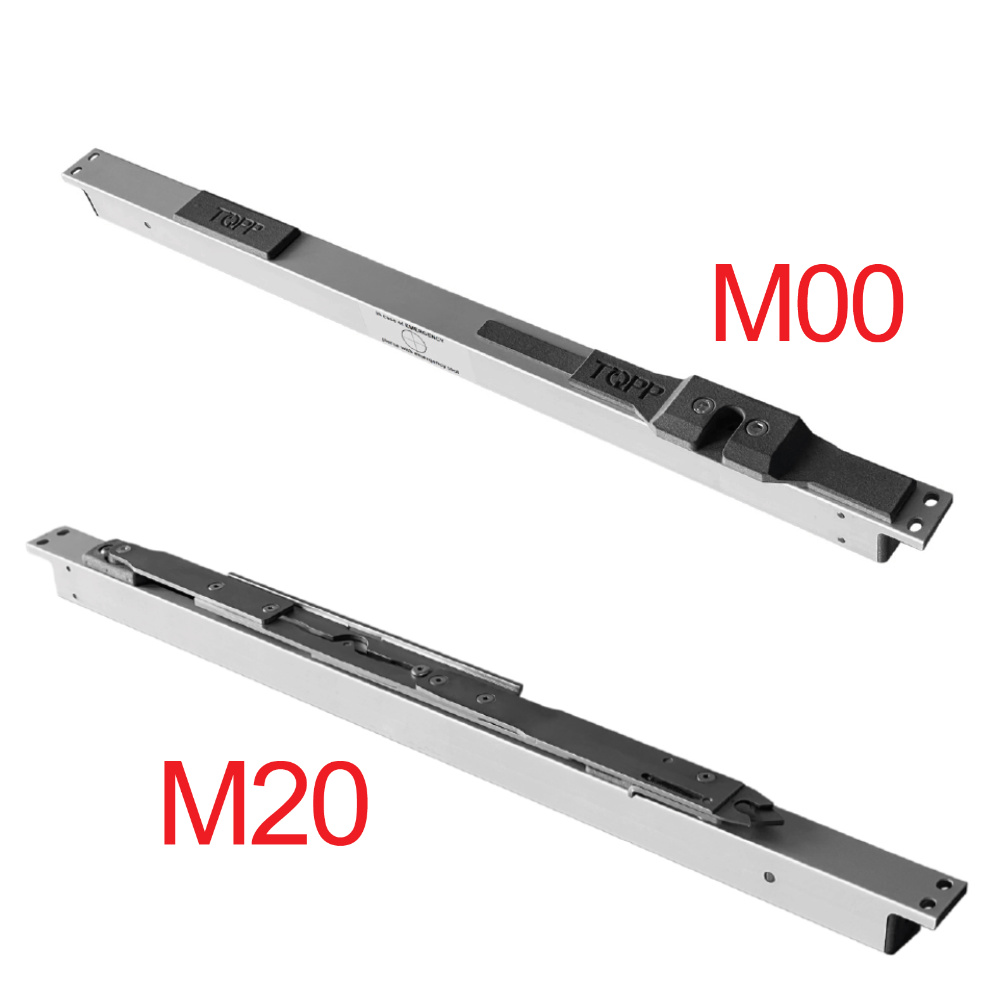

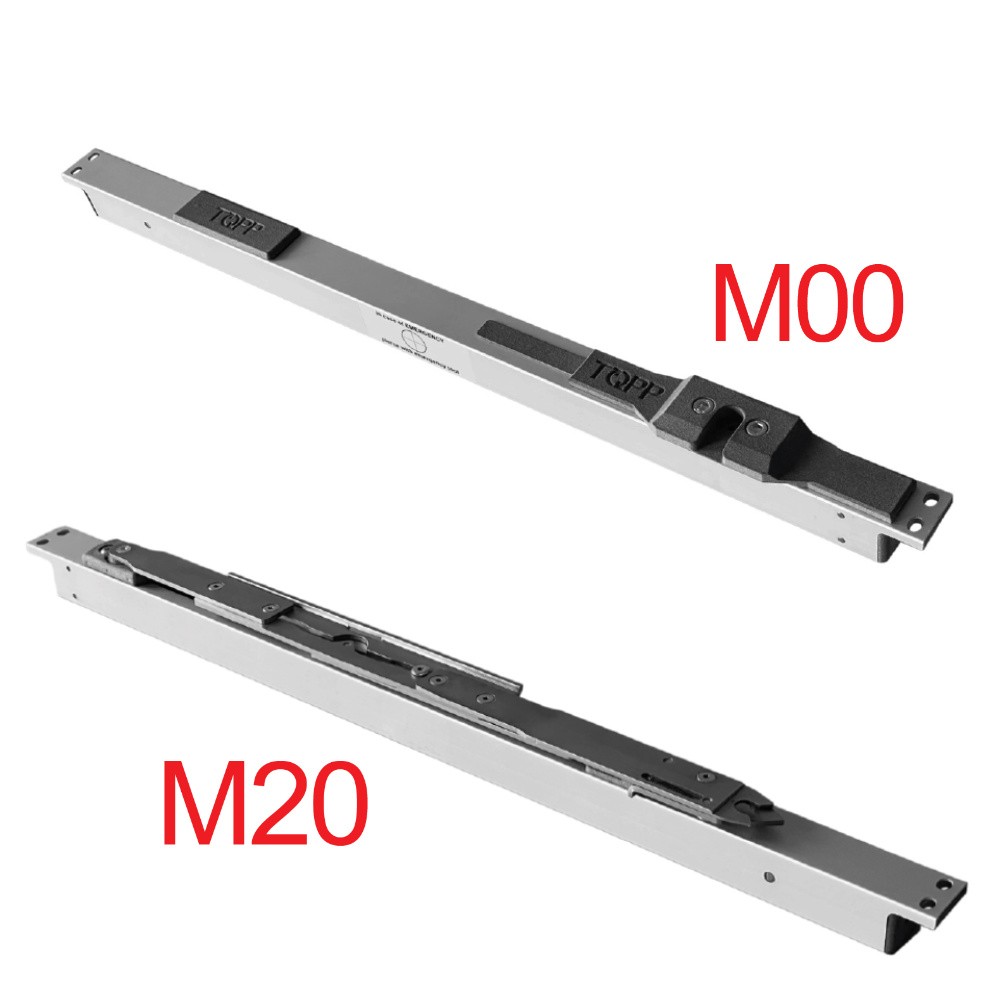

M00 M20 Topp - Concealed actuators with multi-locking
M00 M20 Topp 24V - Concealed motors with integrated multi-lock and maximum stroke 200 mm
- Automation for retractable windows;
- Integrated multi-locking system;
- Manual swing opening in tilt and turn systems;
- Emergency release.
M00 Topp: concealed electric multi-lock
Maximum load 600N - Stroke 18-36mm
TOPP electric actuator
model M00 for perimeter multi-closing movement of the window , characterized by minimum dimensions, to allow concealed installation inside the profile.
24V operation, maximum applicable load 600N, multi-closing pawl movement stroke 18 and 36mm (automatic horizontal movement which, by means of a coupling device, moves the pawls of the perimeter hardware to allow the hermetic closure of the window in several points).
Can be combined with the chain actuators of the TOPP range for bottom hung and top hung opening.
CE marked device.
M20 Topp: concealed actuator with integrated multi-lock
Maximum load 300N - stroke 130-200mm
Integrated perimeter multi-locking movement mechanism

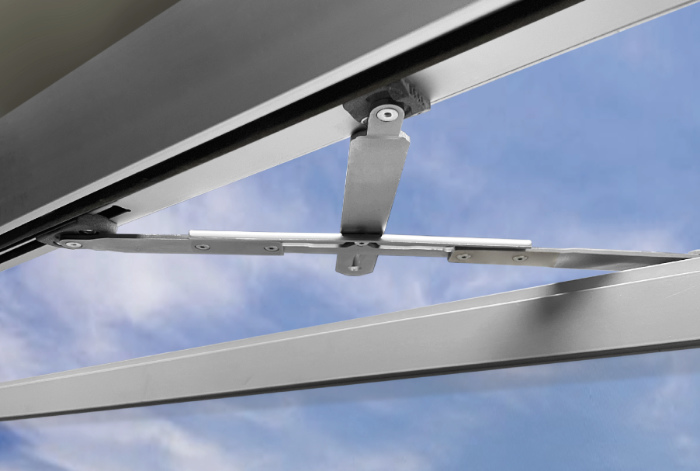

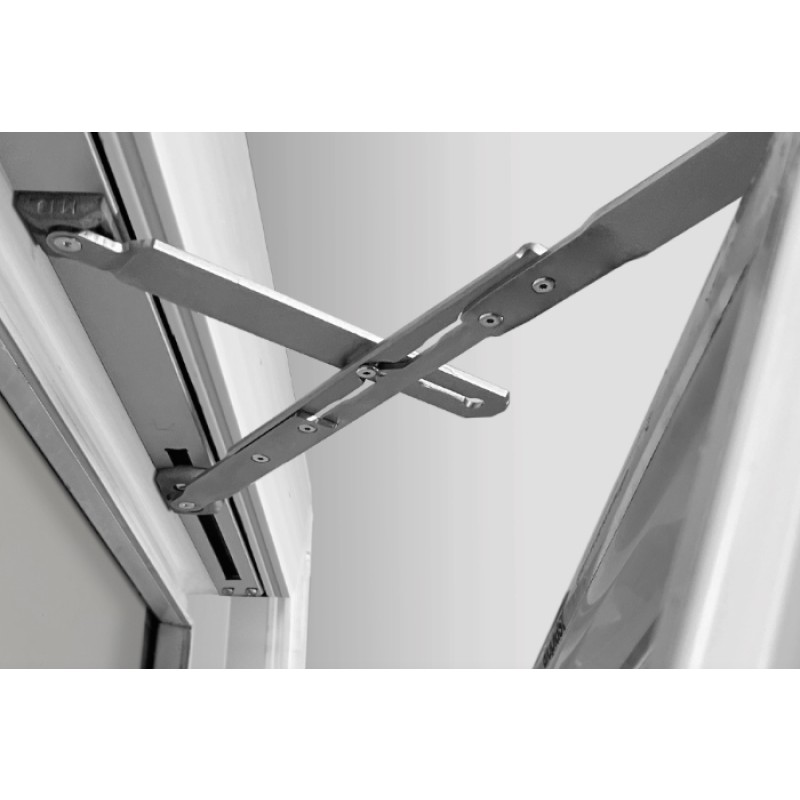

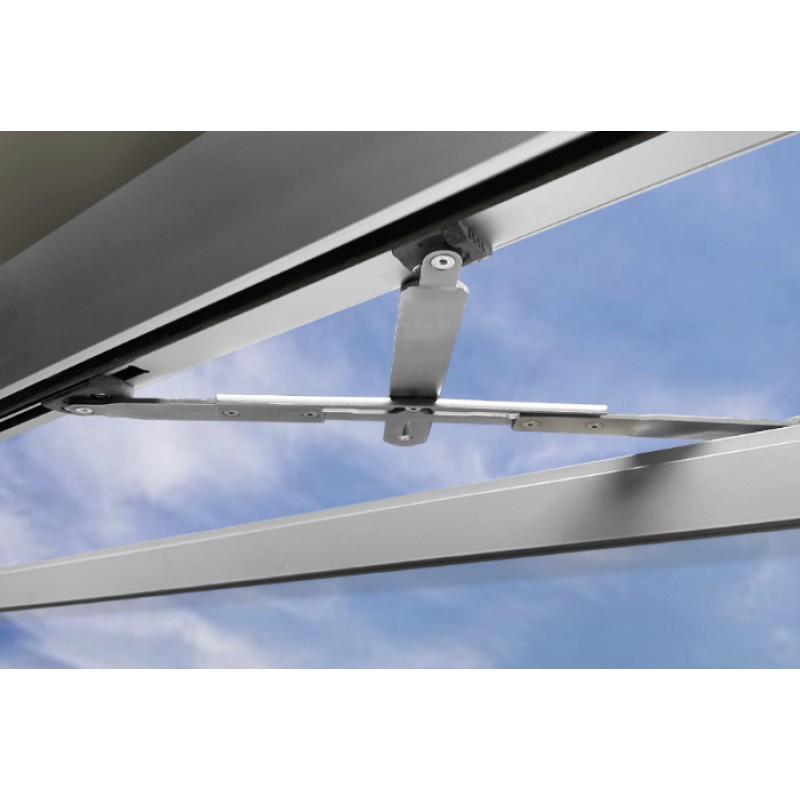

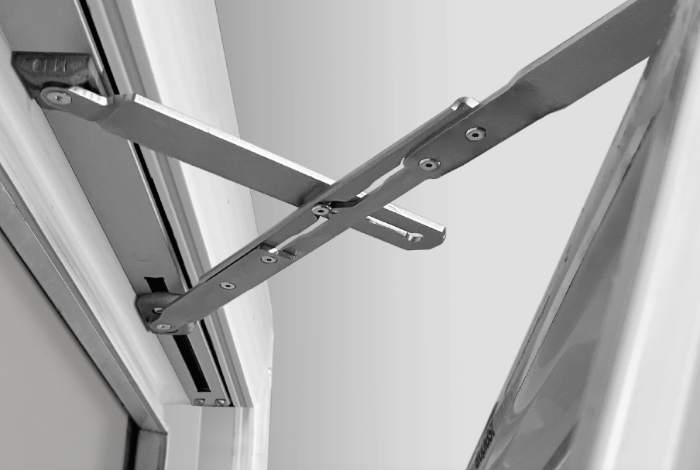

Actuator characterized by minimum overall dimensions to allow concealed installation inside the frame profile, complete with accessories for outward opening and bottom hung. Equipped with a scissor release mechanism to allow manual swing opening on the tilt and turn window.
24V operation, maximum applicable load 300N, strokes 130 and 200mm.
Integrated manual emergency release in the event of a power failure or breakdown.
CE marked device.

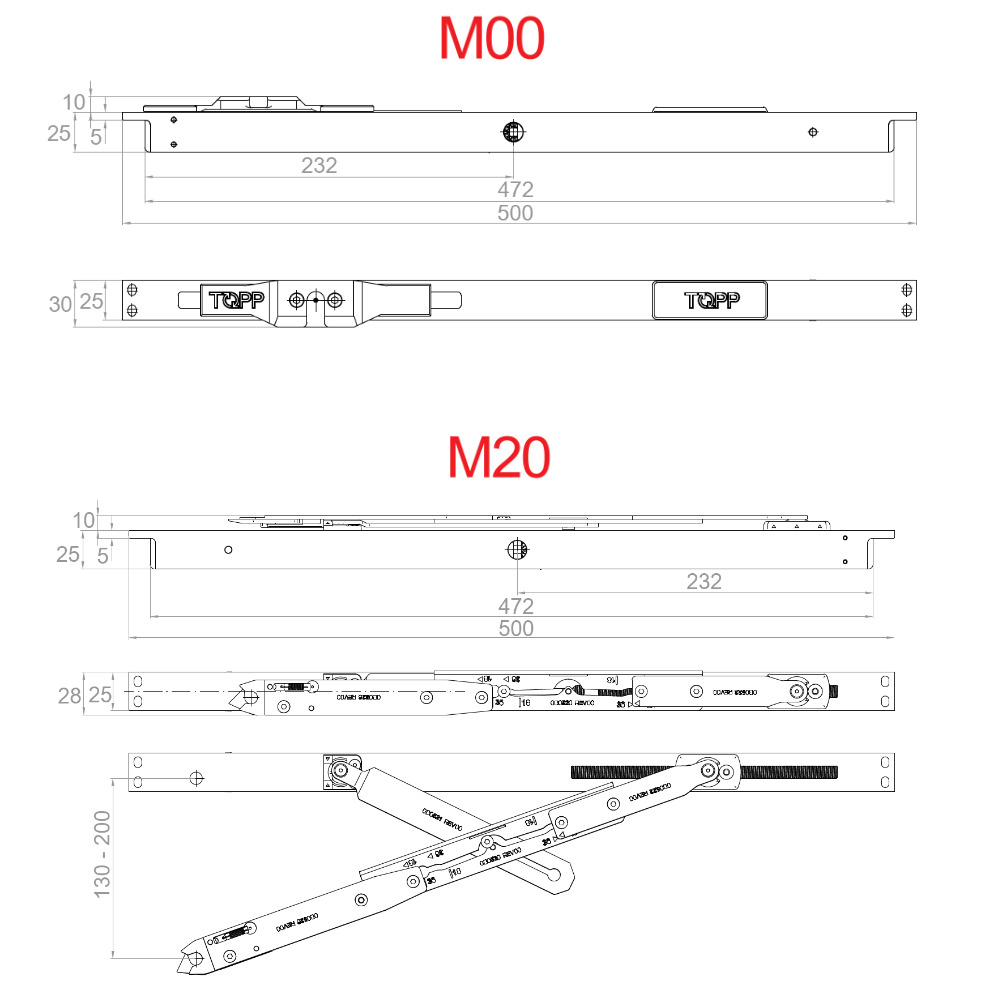

M00 M20 Topp actuators technical drawing

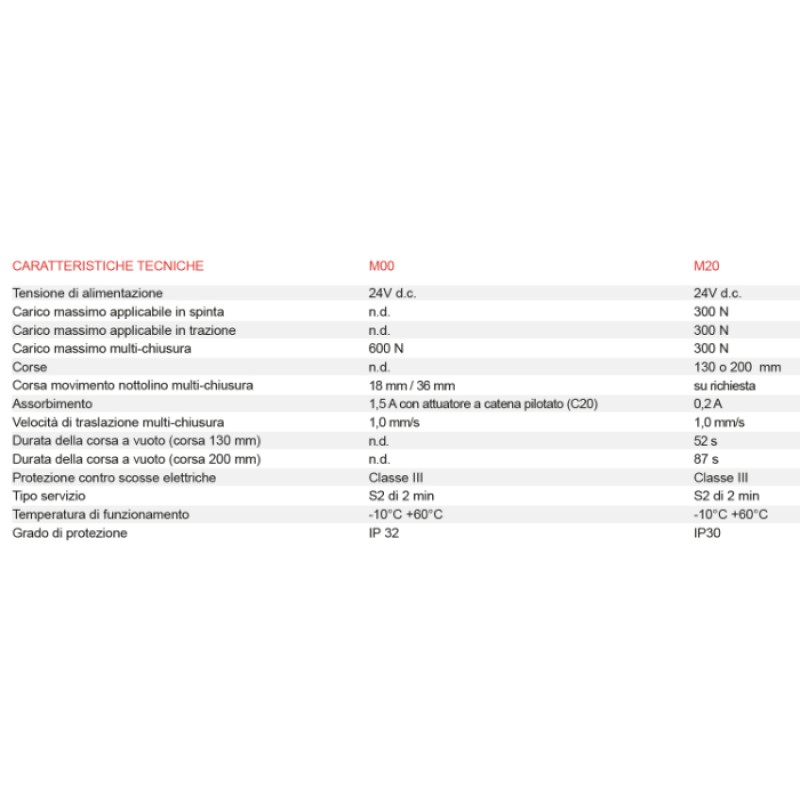

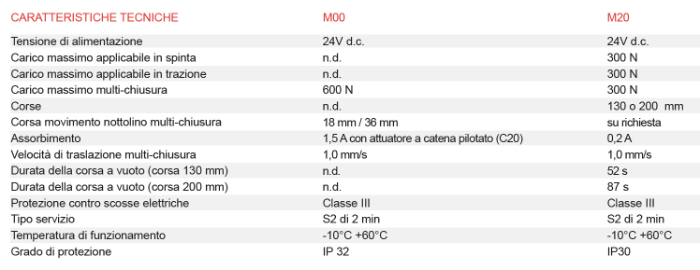

M00 M20 Topp actuators technical characteristics
Topp window motors with Made in Italy technology
For more than two decades, the Italian company Topp has been offering a
wide range of systems for window automation .
The many international patents are indispensable tools for the protection of Topp solutions, giving life to the product known all over the world as
Made in Italy .
Discover the quality of Topp concealed actuators
Each window motor is individually tested to deliver on Topp's commitment to quality.
