Traverso Inferiore Small PosaClima: thermal break on the lower crosspiece of the subframe

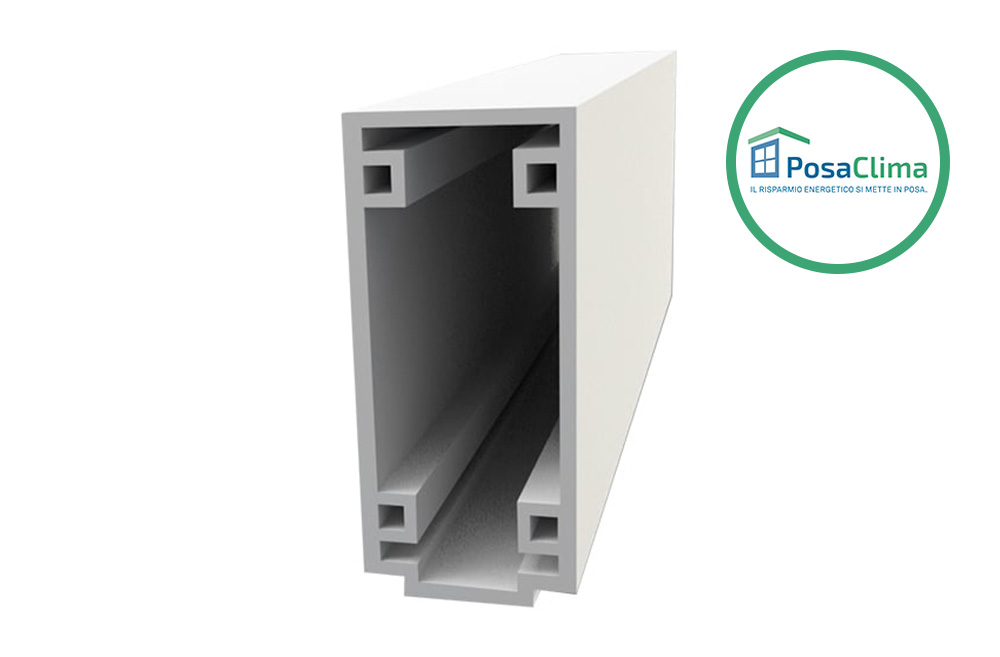

20x45 mm PVC extruded box profile Small PosaClima
Small PosaClima is the PVC extruded box profile to be used as a thermal break on the lower crosspiece of the subframe. It is designed with internal ribs to the profile to accommodate the fixing screws. To be used as a thermal break in temperate zones due to its reduced section compared to the Klima version.
Thanks to its reduced section, however, it can also be used with smaller window profiles, from which it is easily hidden during the installation phase.
The profile has a lower shape that allows it to be superimposed on the Klima version in order to increase the thickness of the lower crosspiece when necessary and to build a real thermal break on the French windows. This cross member must be fixed with the special brackets directly to the sides of the subframe (code KLTRAV20P100).
Dimension
- Measurements: 20 x 45 mm
- Bar length: 3 m
What is the purpose of installing the thermal window frame?
The Small lower crosspiece is used in the counterframes of the Posaclima system for the construction of the 4th side with thermal break in all those cases where a reduced thermal break section is needed (for reasons of space or for thermal reasons).
The advantages of the Traverso Inferiore Small PosaClima
- Smooth surface particularly suitable for the application of sealing materials and air and vapor sealing film;
- It does not deform , does not rot if it comes into contact with rain or if exposed to high humidity situations (eg new walls);
- Excellent resistance to salt and corrosive agents (plasters, etc.);
- Great speed and ease of assembly;
- Easy handling thanks to low weight;
- Absence of metal protrusions that avoid any injury in handling;
- It is easily reached and therefore avoids waste;
- Walkable .
Small PosaClima certifications and energy performances
- Specific weight - ISO 1183 - 1,5 gr / cm³
- Hardness - ISO 868 - 80 Shore D
- Tensile strength - ISO 137- 35 N / mm²
- Elongation at break - ISO 37 - 100%
- VICAT grade 1 Kg - ISO 306 -> = 80 ° C
- Flammability - UL 94 - Class V0
- Coefficient of linear expansion - ISO 11359-2 - 7.1 10-5 K-1
- Maximum operating temperature -10 ° C + 50 ° C
- Thermal conductivity - 0.17 W / mK
PosaClima: the best products for the installation of windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
