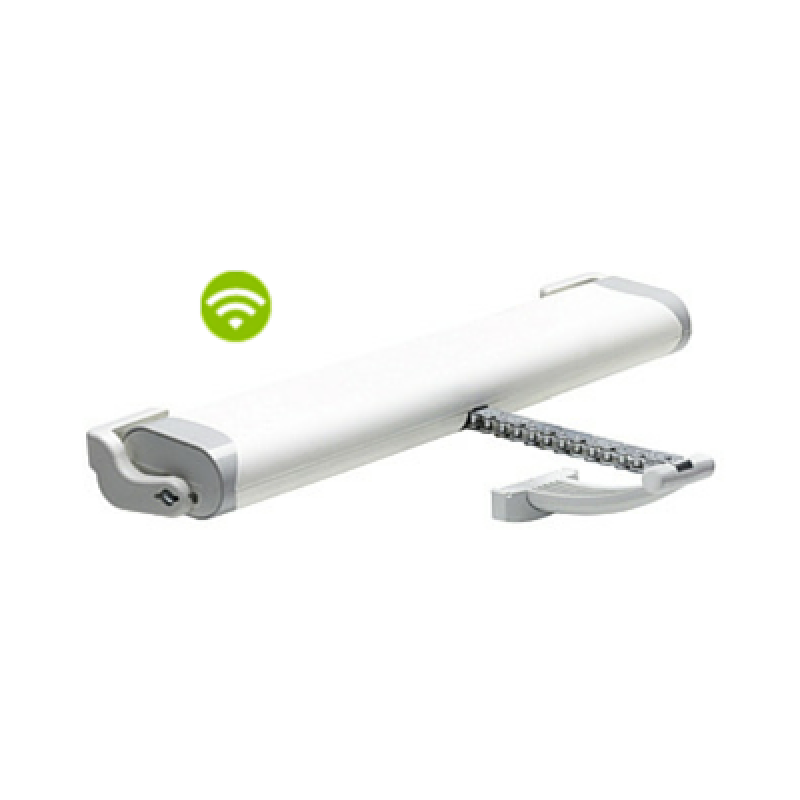

Liwin L35 Radio 230V Comunello Chain Actuator Remote Control

Comunello Mowin
Code: L35 RADIO 230V
€ 112,70
Prices excluding VAT
Liwin L35 Radio 230V is an electric chain actuator for opening and closing top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium. Version designed to be operated by radio control.
You have chosen:
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

Liwin L35 Radio Chain Actuator 230V L=<1250 Comunello Mowin

Liwin L35 Radio 230V electric chain actuator for opening and closing top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium.

Comunello radio motor operated by remote control (to be purchased separately).


Actuator with remote control not included

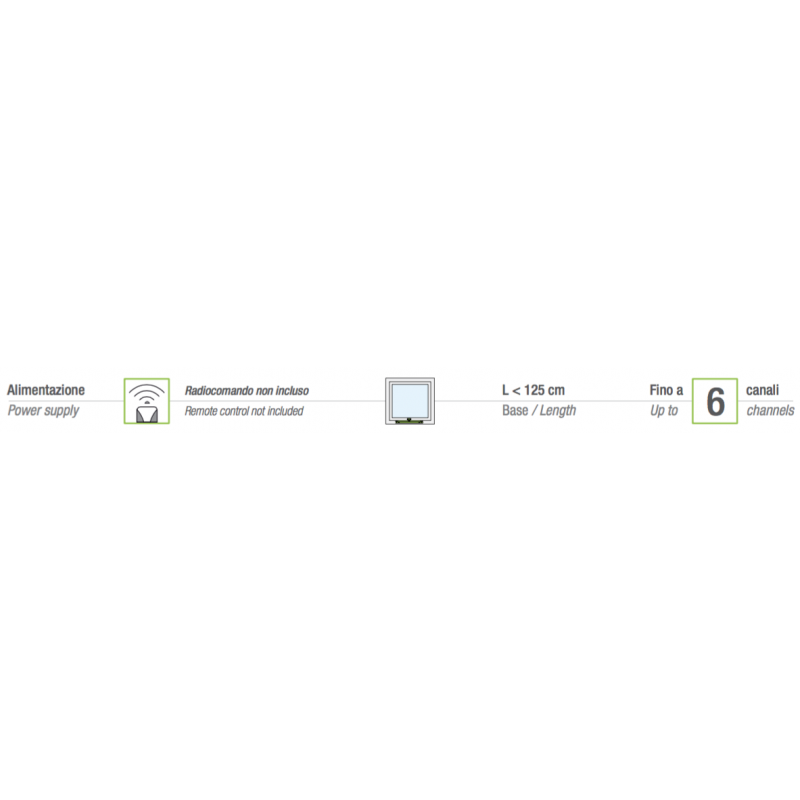

Liwin L35 Radio version with 230V voltage set up to be able to operate the engine thanks to the R-Control radio control (434.15 Mhz). The remote control can be purchased separately on Windowo.

Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.

The package contains: chain actuator with electric cable, support brackets, attachment for top-hung and top-hung windows, adhesive template included and multilingual instruction booklet.

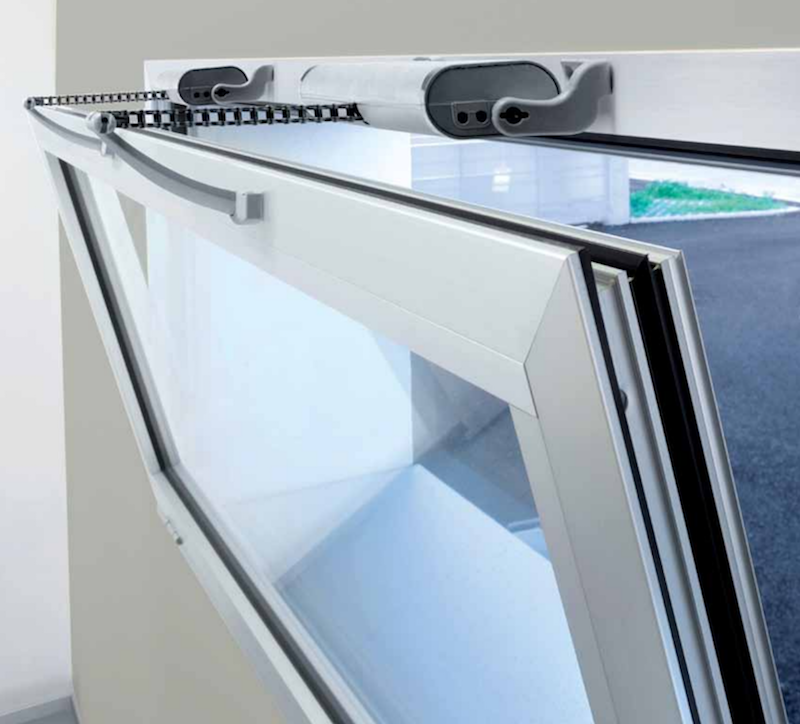

Liwin Mowin Comunello chain actuator

Smart Comunello actuator openings

L35 Radio Comunello


Liwin L35 Radio 230V Comunello Technical characteristics

  • Model: L35 RADIO 230Vac;
  • VAC power supply: 230VAC;
  • Frequency 50Hz;
  • Service: S2 4min;
  • Push force: 350N;
  • Pulling force: 350N;
  • No-load translation speed: 18 mm/s;
  • Degree of protection: IP44;
  • Double AC insulation: Yes;
  • VAC Current: 0.19A;
  • Power: 28W;
  • Operating temperature: -5° / +50°;
  • Strokes: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
  • Closing limit switch: by absorption;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: yes (max 30 actuators);
  • Synchronization: no;
  • Dimensions: 390x38x73mm.

Liwin L35 Comunello radio actuator

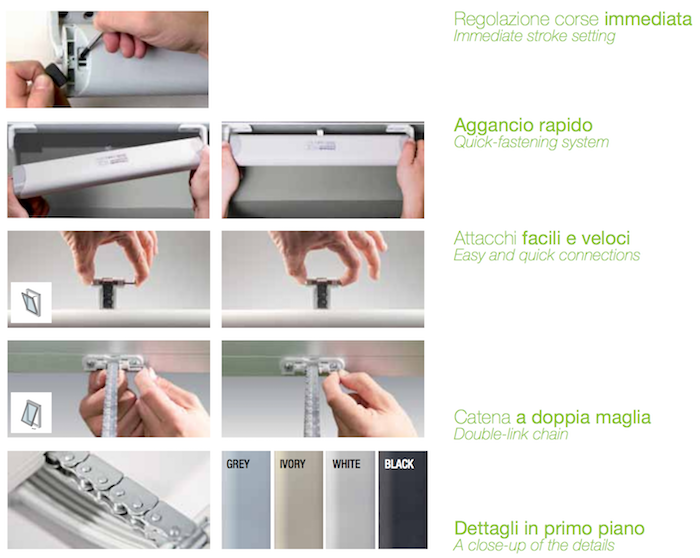

Immediate stroke adjustment - Quick coupling.
Quick and easy attachments - Double link chain - ​Details in close-up.

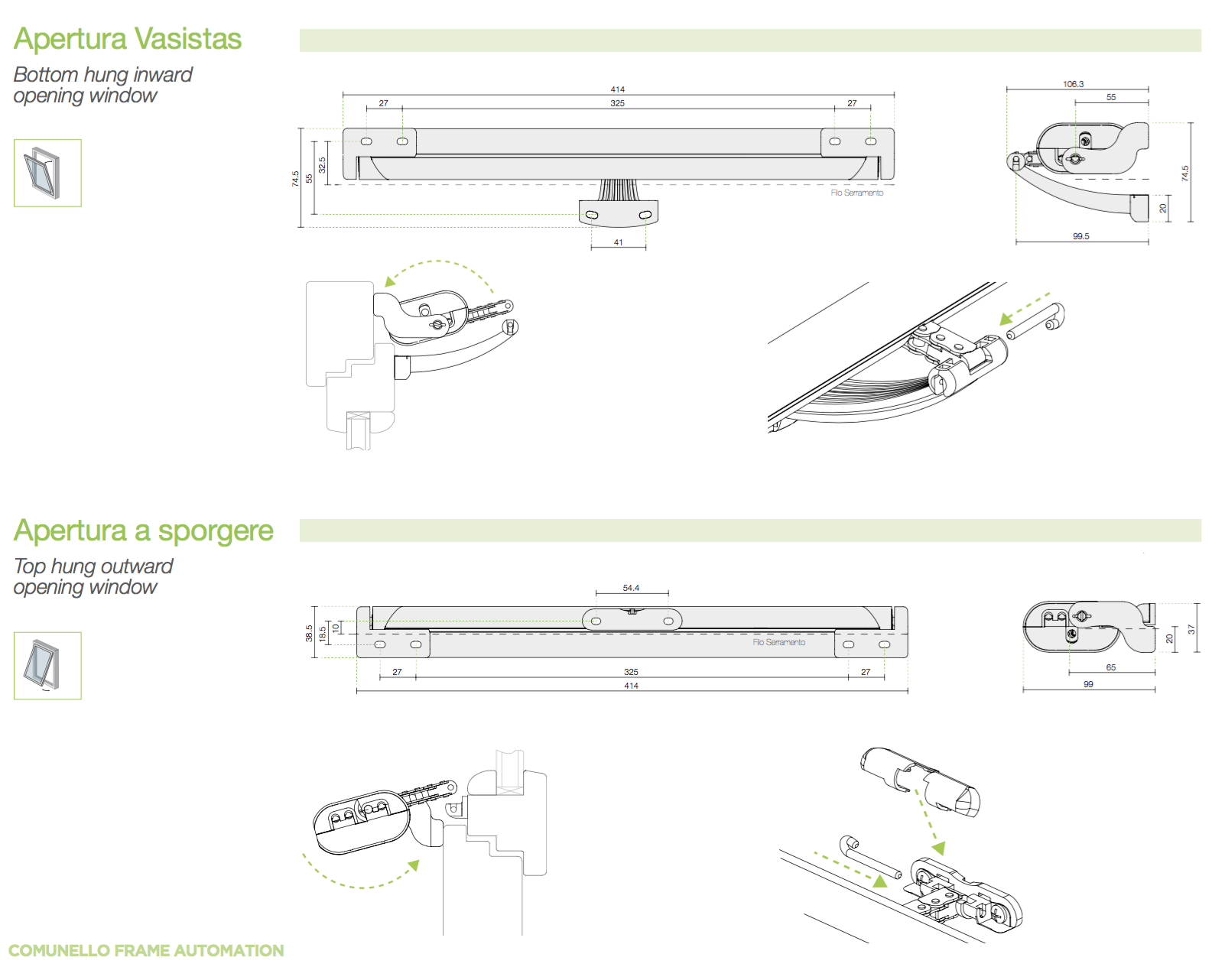

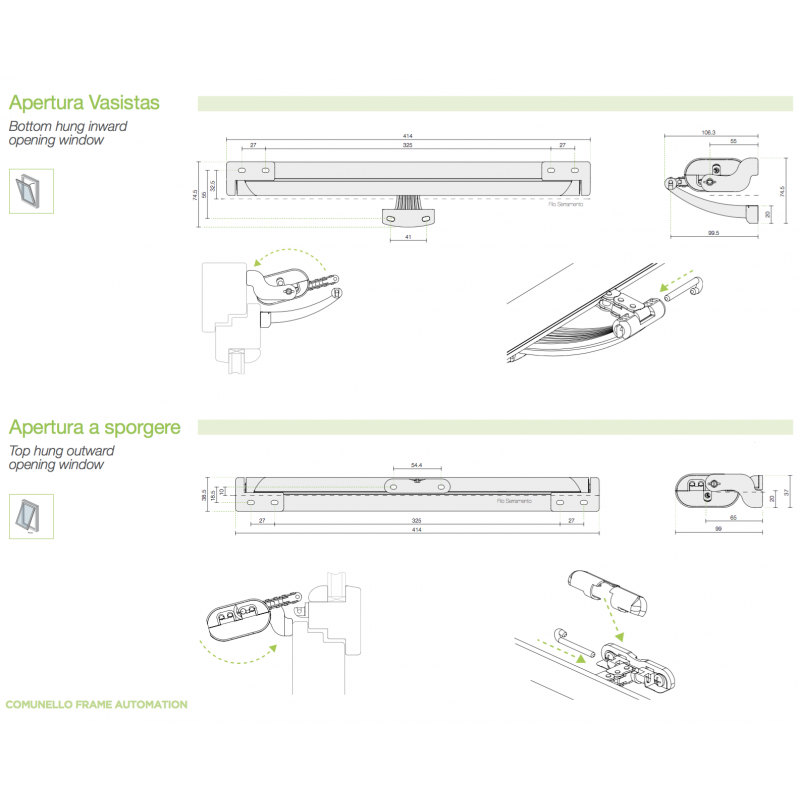

Applications Liwin Comunello chain actuator

Comunello Mowin


Comunello Mowin Remote Control Chain Actuators

Buy the best remote controlled chain actuators online on Windowo, designed to open windows with radio control .

You can find Comunello engines for sale in our online shop at discounted prices: look for the model you want and discover the dedicated offer right away.
