Liwin Comunello L35 24V Chain Actuator L=<1250

Comunello Mowin
Code: LIWIN L35 24V
€ 67,61
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

Chain Actuator Liwin L35 24V 50 Hz L=<1250 Comunello Mowin

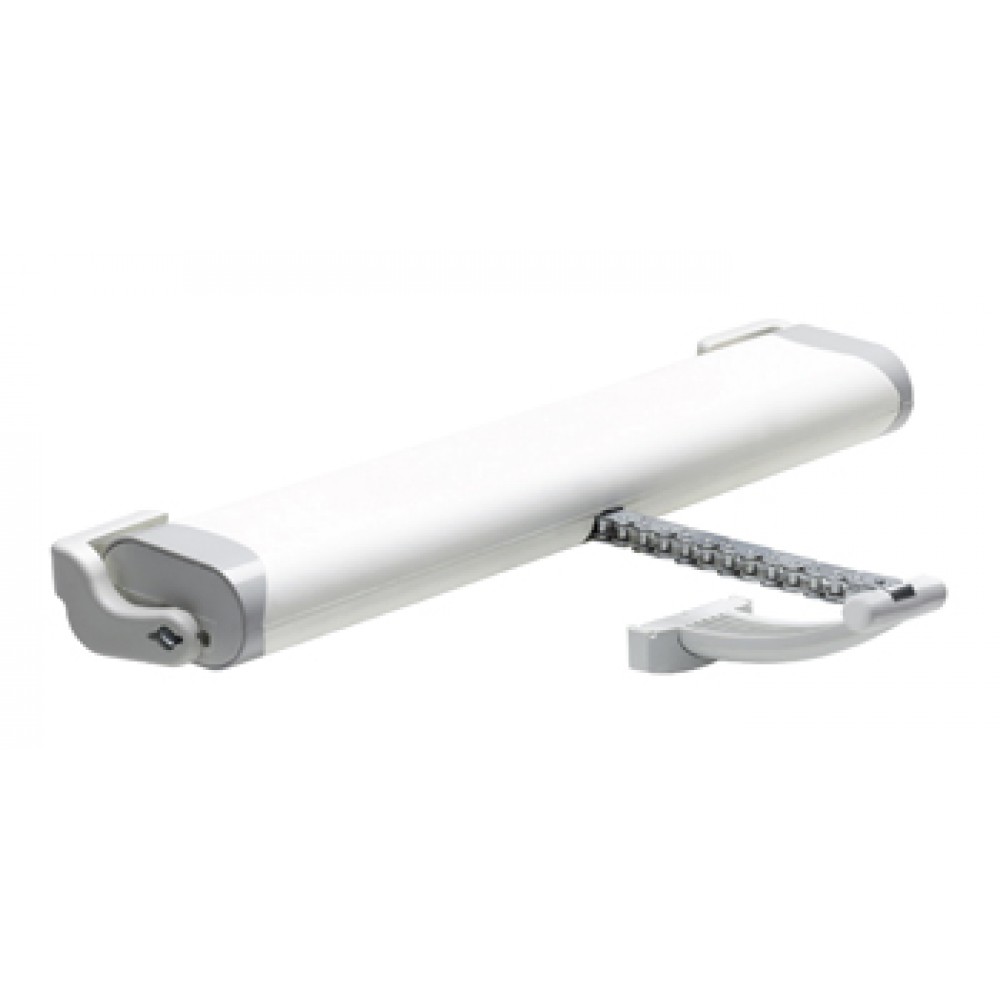

Liwin Comunello L35 24V electric chain actuator for opening and closing top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium.

If you are interested on Windowo you can also find Liwin Comunello L35 230V for sale online: pay attention to the correct choice of voltage!


What is included with the Liwin Comunello L35 24V chain actuator?

Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.

Window motor pack contains:
  • Liwin Comunello chain actuator with electric cable,
  • support brackets,
  • attachment for bottom-hung and top-hung windows,
  • adhesive template included,
  • multilingual instruction booklet.

Liwin Mowin Comunello chain actuator

Smart Comunello actuator openings


Technical Features Liwin Comunello L35 24V Chain Actuator

  • Model: Liwin Comunello L35 Standard 24Vdc;
  • VDC power supply: 24 Vdc;
  • Service: S2 4min;
  • Push force: 350N;
  • Pulling force: 350N;
  • No-load translation speed: 18 mm/s;
  • Degree of protection: IP44;
  • DC double insulation: low voltage;
  • VDC consumption: 1A;
  • Power: 28W;
  • Operating temperature: -5° / +50°;
  • Strokes: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
  • Closing limit switch: by absorption;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: yes (max 30 actuators);
  • Synchronization: no;
  • Dimensions: 390x38x73mm.

Liwin L35 Comunello actuator

Immediate stroke adjustment - Quick coupling.
Quick and easy attachments - Double link chain - ​Details in close-up.

Applications Liwin Comunello chain actuator

Comunello Mowin


Online sale of Comunello Mowin window motors

Comunello Mowin was born from 45 years of experience in the handling of doors and windows.

Comunello products are a guarantee of high quality and durability. Mowin electric window actuators are stable and highly flexible products, suitable for multiple applications for windows, domes, skylights, sunshade blades, curtains, shutters.

Buy the best Comunello Mowin window motors online on Windowo at discounted prices.
