Kimo 202 Nekos Chain Actuator 200N

Nekos
Brands: Nekos
Code: KIMO 202
-15%
€ 151,37 € 178,08
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Nekos catalog that is not on our site? Contact us and ask for a quote.

- +

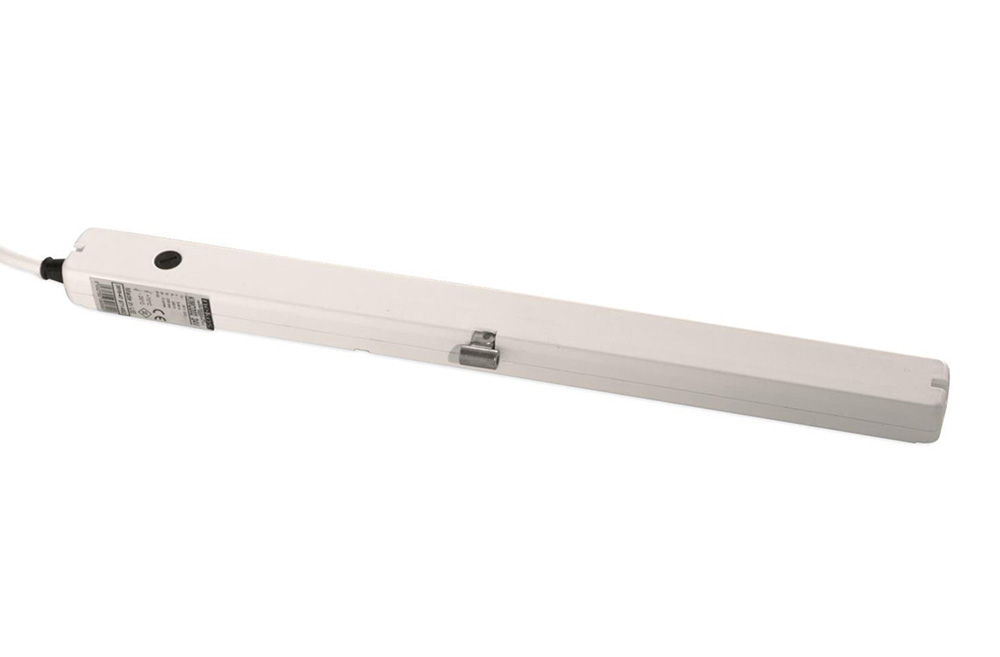

Kimo 202 Nekos Chain Actuator 200N - The smallest window actuator

Kimo 202 Nekos is an electric chain actuator for concealed installations, inside windows with very small profiles.
At the time of this writing, it is the smallest window actuator available on the market.

Available colours:
  • Black (RAL9005)
  • Gray (RAL9006)
  • White (RAL9010)


For which windows is this actuator suitable?

We recommend the Kimo 202 Nekos actuator for:
  • hinged windows
  • vasistas windows
  • pivoting windows


Kimo 202 is a small and innovative actuator

It has a multifunction microprocessor and, despite its small size, it has the same and superior capabilities as other actuators.

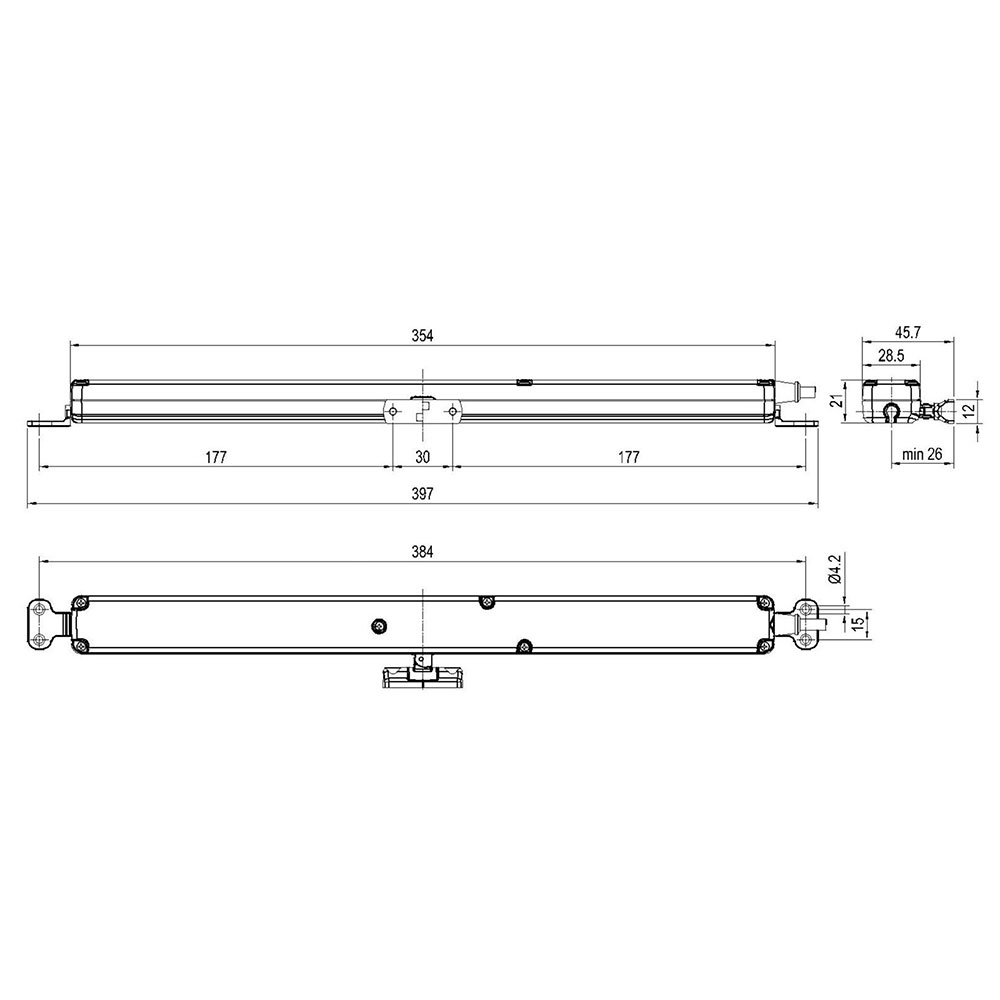

Its size is only 21x28.5x354 mm. This guarantees that it can be used for concealed windows.
It is also very quiet. The noise is only 40 dB (A).

dimensions actuator nekos 202 kimo


Synchronize up to 8 actuators

Kimo 202 Nekos already has the function for synchronization (Nekos Syncro3 - Patented).
You can create a synchronized system up to 8 actuators, without any control box.
To activate the synchronization just use the dip-switch function.


Choose from 3 rides

You can choose between 3 races with quick and immediate dip-switch selection.
It has a progressive starting ramp and overload protection is provided for the entire stroke.
Relax function: after each stop it goes into relax mode to reabsorb the power.


Patented chain by Nekos

The 3-link chain is a Nekos company patent, produced in the owned plant.
In this way, the environmental impact and footprint are even smaller.


Even easier assembly

In flush mounting, the brackets allow access for inspection of the actuator, even with the window closed or without power.


High resistance actuator

The Kimo 202 Nekos chain actuator is made of high strength composite materials with glass fiber.


You can create a window block against thieves

You can create an anti-burglary window system. Just combine it with:
  • K-LOCK e
  • perimeter hardware


The complete list of matching products:

  • K-LOCK
  • VASISTAS AUX
  • HANGING CENTRAL KL and KL-R
  • MODIX 2/4/6 PIVOT WINDOWS
  • MY-SUN1 and MY-SUN3
  • ALI'SW


Read the technical features:

  • Electric actuator with three-link articulated chain (Nekos patent), enclosed in a suitable container of material;
  • High-strength composite with glass fiber, suitable for handling hinged windows and vasistas;

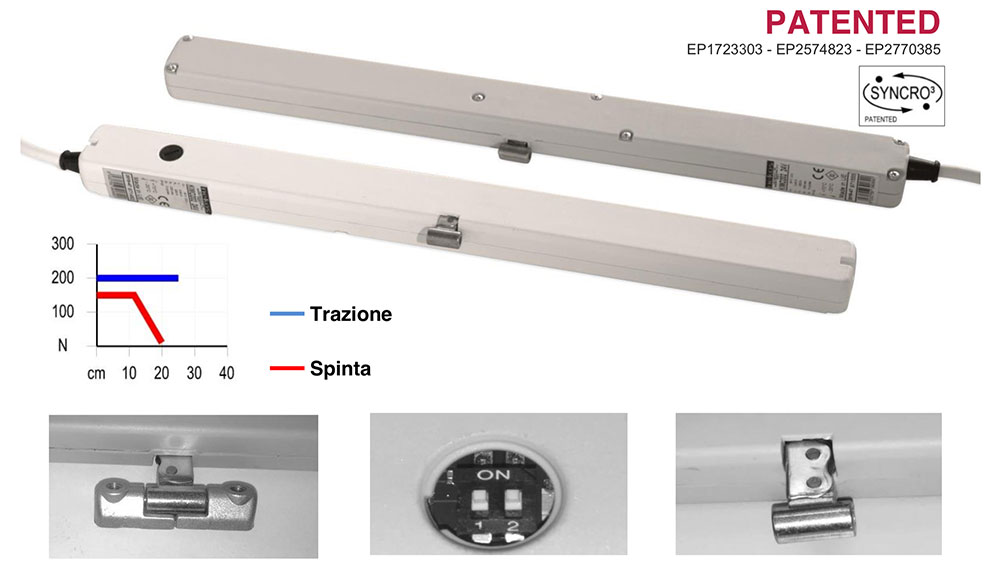

  • Pull force of 200 N, thrust 150 N (100 mm) (see diagram). 24V low voltage power supply (DC);
  • Three opening strokes selectable with dip-switches: 100, 170 and 250 mm.
  • Power absorption closing limit switch with overload protection;
  • The actuator can be combined with the AUX accessory for 24V motors and in the Syncro3 selection with the electromechanical lock K-LOCK;
  • Electronic synchronization of up to eight actuators (NEKOS patent) including the combination with the K-LOCK electromechanical lock. The completion accessory for natural ventilation systems that use 24V motors can be connected to AUX;
  • Machine equipped with tilting support brackets for recessed mounting and leaf attachment bracket. Compliant with the relevant EU Directives (EMC Directives, Low Voltage Directives).

technical features actuator nekos kimo 202


Nekos actuators: the smallest window actuators

Nekos is an Italian company specialized in the production of window actuators.
Research and innovation have led to the Kimo 202 series of actuators, the smallest for windows.

nekos actuators for windows
