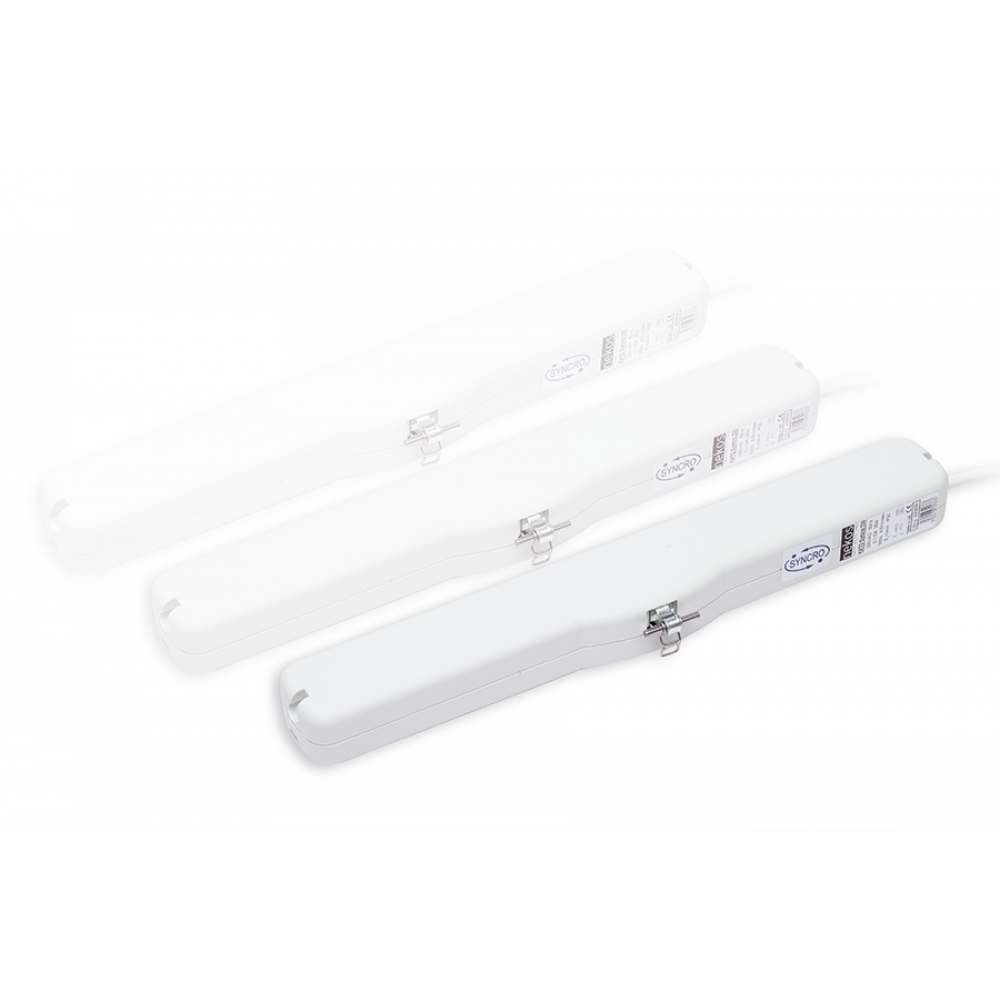

Pair of Actuators for Coordinated Synchronization Kato Syncro3 Nekos 24V 300N Stroke up to 400mm
ATTENTION: The price includes two Kato Syncro3 Nekos 24V actuators
Kato Syncro3 Nekos 24V: Advanced Window Actuator
Kato Syncro3 Nekos is the evolution of the original Nekos patent and now allows perfect coordinated synchronization of up to 8 actuators without using external control units.
Syncro is the only real window actuator synchronization existing on the market and it is just one of the many patents that Nekos has registered, confirming the high technology achieved by the company and its R&D department.
Kato Syncro3 Nekos 24V is Simple but Intelligent
The strengths of Nekos products can be recognized in all actuators and Kato has been, and remains, the parent of the whole family.
An idea made concrete in practice. For 10 years it has found application in window and door manufacturers, dome makers, mansard window manufacturers, electricians and in special applications.
Brackets for quick engagement of the actuator in its working position, variable and electronically selectable strokes, ease of hooking the chain to the window, relaxation function, are the main and defining features that distinguish Kato and all the other actuators born after him. It is small in size, only 37x59 cm in section; the body and the brackets are made of high resistance composite material (polyamide reinforced with fibreglass).
Linear electric actuator with double-row four-link articulated chain, enclosed in a suitable container of high-resistance composite material (polyamide reinforced with glass fibre). suitable for moving top-hung windows, transom windows, domes and dormer windows. Power in traction and thrust 300N. Supplied complete with brackets for mounting the quick coupling actuator without the use of screws (patented).

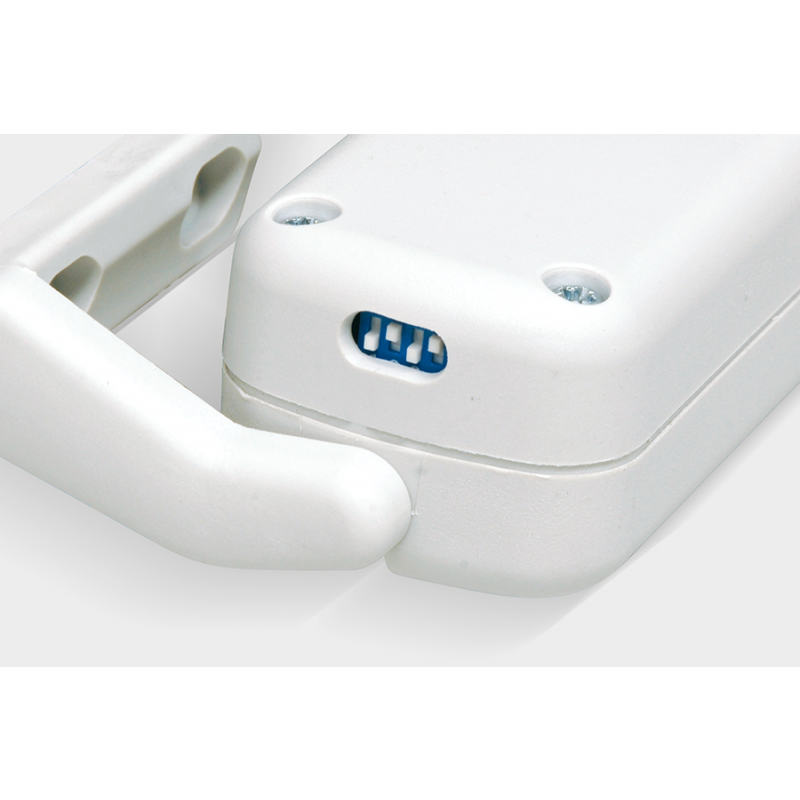

Brackets for transom or projecting doors with quick hooking/unhooking (patented). Limit switch: electronic in opening with variable strokes and can be selected at any time via dip-switch.
Power absorption closing limit switch. Can be connected in parallel. Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).
Standard colours: Black (approx. RAL9004) with black cable, White (approx. RAL9003) and Gray (approx. RAL7047) with white cable.

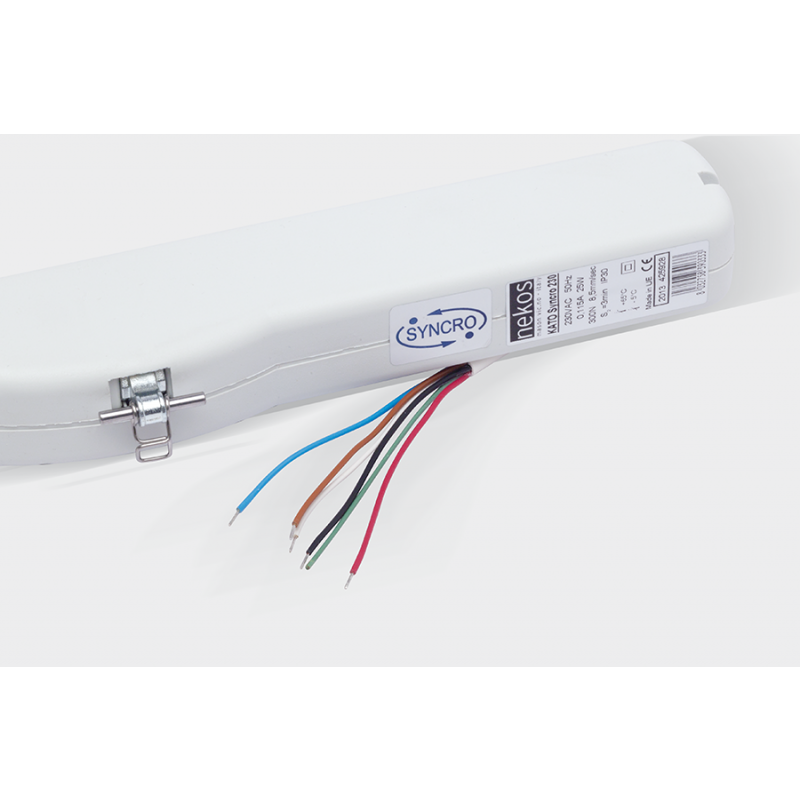

The Kato Syncro chain actuator is equipped with the brand new NEKOS patented system for the coordinated synchronization of the chain movement. The electronic speed control is fully automatic and does not require any external control unit; just connect the red and white cables already present in the power cord.
IMPORTANT. THE CONNECTION OF THE TWO CABLES (WHITE AND RED) MUST BE CARRIED OUT BEFORE ANY MANEUVER OF THE ACTUATORS, POSSIBLY WITH THE CHAINS COMPLETELY RETURNED; OTHERWISE THERE MAY BE COMMUNICATION PROBLEMS BETWEEN THE TWO ACTUATORS.

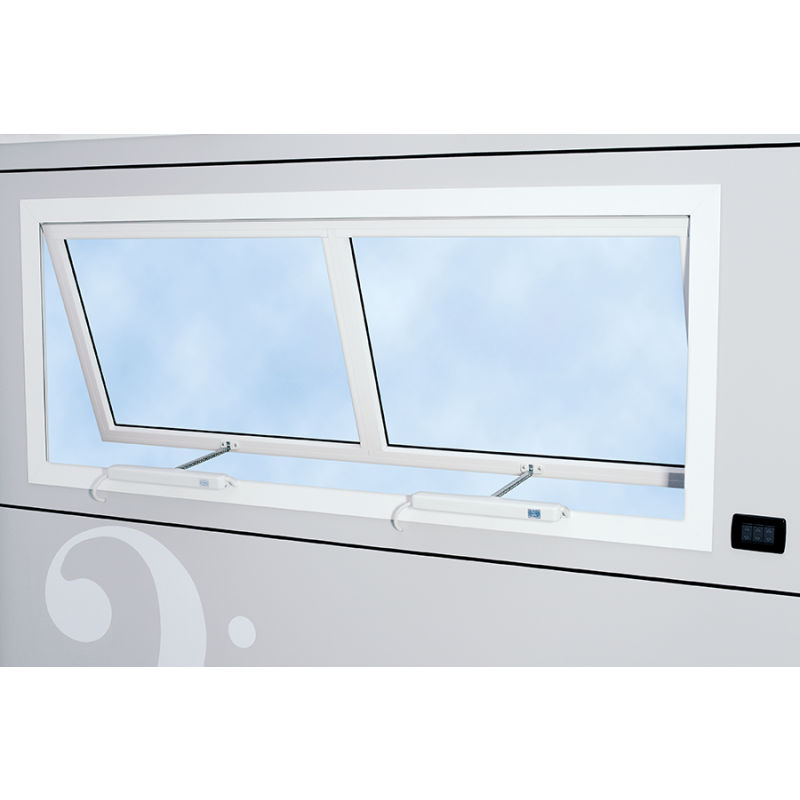

When mounting on a window
The Kato Syncro chain actuator is mounted when two attachment points are needed because the window is particularly heavy or large and a single actuator does not allow perfect closure of the window.
It should be remembered that the force exerted by the actuators individually is the same as a similar Kato actuator; by mounting two actuators, the force exerted on the window is therefore double.
The movement of the window takes place in a uniform, synchronized and coordinated way without interruptions and/or speed variations of the two actuators.
If one of the two actuators does not work due to any mechanical or electrical impediment, the other also stops, thus guaranteeing the integrity of the window.
Kato Syncro3 Nekos 24V Technical Data
- Model: Kato Nekos 24V Syncro3;
- Pushing force: 300N;
- Pulling force: 300N;
- Strokes (selectable at any time): choice between 100, 200, 400 mm or 200, 300, 400 mm;
- Supply voltage: 24V dc;
- Current draw at rated load: 0.880 A;
- Power consumption at nominal load: ~ 22 W;
- No-load translation speed: 12 mm/s;
- Duration of idle stroke (400 mm): 25 s;
- Double electrical insulation: Low voltage;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel connection of two or more motors: YES;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;

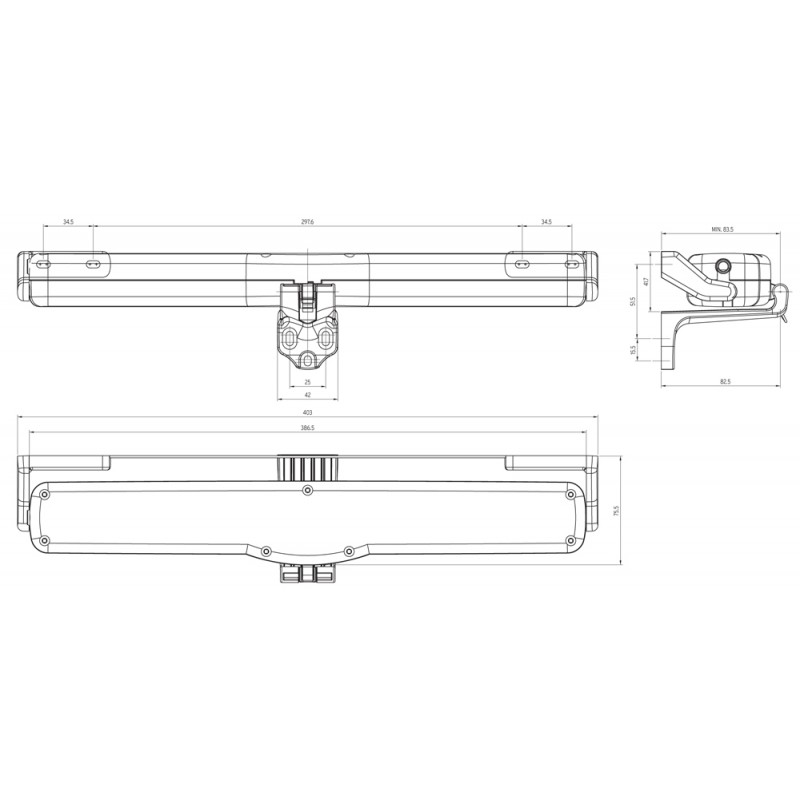

- Dimensions: 386.5x59x37 mm;
- Appliance weight: 0.940 Kg.
Each pack contains:
- Actuator with 2.5m power cable.
- Standard support brackets with spacer (A).
- Brackets for vertical mounting of the actuator (B).
- Bracket for bottom hung attachment (C).
- Bracket for projecting connection (D).
- Adhesive drilling template (E).
- Small parts pack.
- Instruction manual.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Why choose Nekos chain actuators?
- Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
- Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
- The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
- CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
