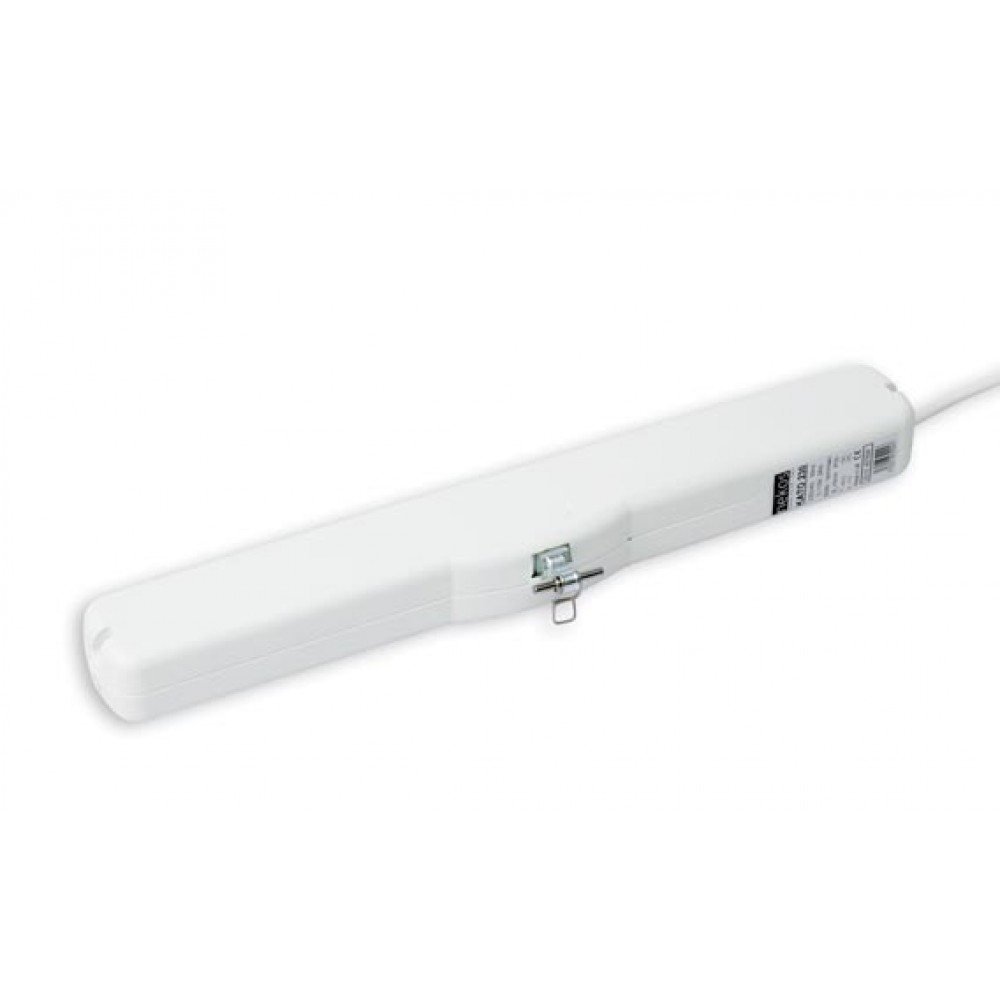

Kato Nekos 24V Chain Actuator 300N - Selectable Stroke up to 400mm - White Black or Gray
Kato Nekos 24V chain motor for hinged windows, transom windows, domes and dormer windows
Kato Nekos 24V is the electric chain actuator for hinged windows, transom windows, domes and dormer windows. It is
small in size , only 37x59 cm in section; the shell and the brackets are made of high resistance composite material. It is easy to install, can be mounted with quick coupling in the supports and also provides for quick release from the window with the use of the Nekos patents.
Kato Nekos is a
linear electric actuator with a double-row four-link articulated chain , enclosed in a suitable container of high-resistance composite material (polyamide loaded with glass fibre). suitable for moving top-hung windows, transom windows, domes and dormer windows. Power in traction and thrust 300N. Supplied complete with brackets for mounting the quick coupling actuator without the use of screws (patented).
- Brackets for transom or projecting doors with quick hooking/unhooking (patented).
- Limit switch: electronic in opening with variable strokes and can be selected at any time via dip-switch.
- Power absorption closing limit switch.
- Can be connected in parallel.
- Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).
Kato Nekos: color choice between black, white and gray
Black (approx. RAL9004) with black cable,
White (approx. RAL9003) and
Gray (approx. RAL7047) with white cable.
Kato Nekos is the smart and simple window engine
The strengths of Nekos products can be recognized in all actuators and Kato has been, and remains, the parent of the whole family. An idea made concrete in practice. For 10 years it has found application in window and door manufacturers, dome makers, mansard window manufacturers, electricians and in special applications.
Brackets for quick engagement of the actuator in its working position, variable and electronically selectable strokes, ease of hooking the chain to the window, relaxation function, are the main and defining characteristics that distinguish Kato and all the other actuators born after him. It is small in size, only 37x59 cm in section; the body and the brackets are made of high resistance composite material (polyamide reinforced with fibreglass).
Kato Nekos actuator technical characteristics:
- Model: Kato Nekos 24V;
- Pushing force: 300N;
- Pulling force: 300N;
- Strokes (selectable at any time): 110, 200, 300, 400 mm;
- Supply voltage: 24V dc;
- Current draw at rated load: 0.880 A;
- Power consumption at nominal load: ~ 22 W;
- No-load translation speed: 12 mm/s;
- Duration of idle stroke (400 mm): 25 s;
- Double electrical insulation: Low voltage;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel connection of two or more motors: YES;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;

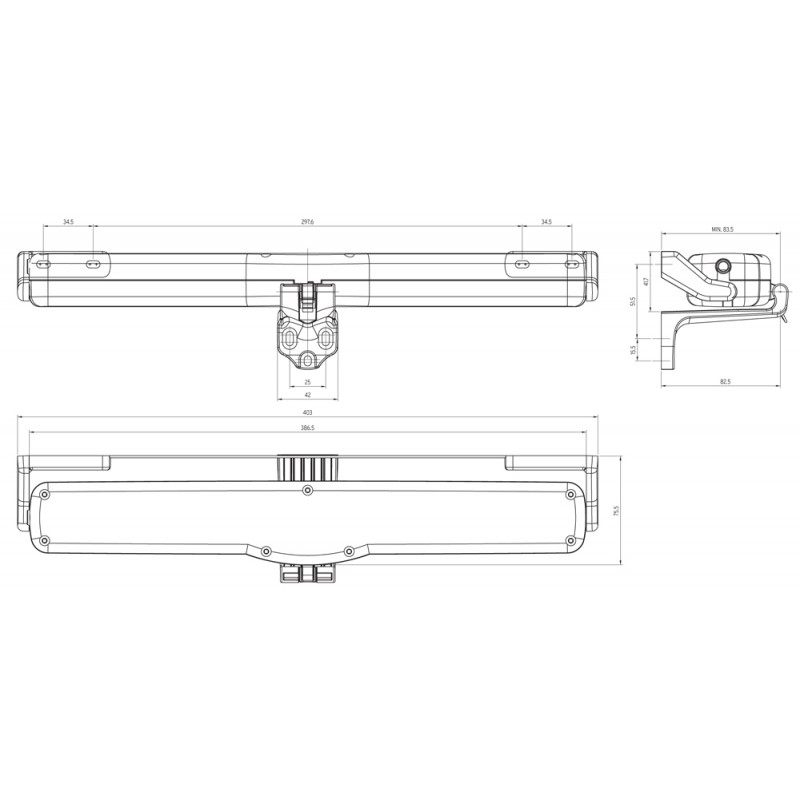

- Dimensions: 386.5x59x37 mm;
- Appliance weight: 0.940 Kg.
Each pack contains:
- Actuator with 2m power cable.
- Standard support brackets with spacer (A).
- Brackets for vertical mounting of the actuator (B).
- Bracket for bottom hung attachment (C).
- Bracket for projecting connection (D).
- Adhesive drilling template (E).
- Small parts pack.
- Instruction manual.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Nekos window motors: built to perfection
Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws. Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein. CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
