Kato 305/RWA Nekos 24V 300N Metal Chain Actuator - Selectable Stroke up to 500mm
Kato 305/RWA Nekos: the resistant and powerful window actuator
Kato 305/RWA Nekos has brilliantly passed the toughest heat and fire resistance tests as indicated by the EN 12101-2:2003-09 standard, obtaining the B 300 classification with certificate no. 13-000921 at the IFT test institute in Rosenheim year 2013.
This
chain actuator for windows is a guarantee of safety, quality, efficiency, reliability, constructive simplicity; a pleasant design designed to integrate into an avant-garde window. It has a new electronic technology based on the use of a microprocessor for position control and management of each work phase. The body is in die-cast aluminum and the brackets are in zinc alloy (zamak).

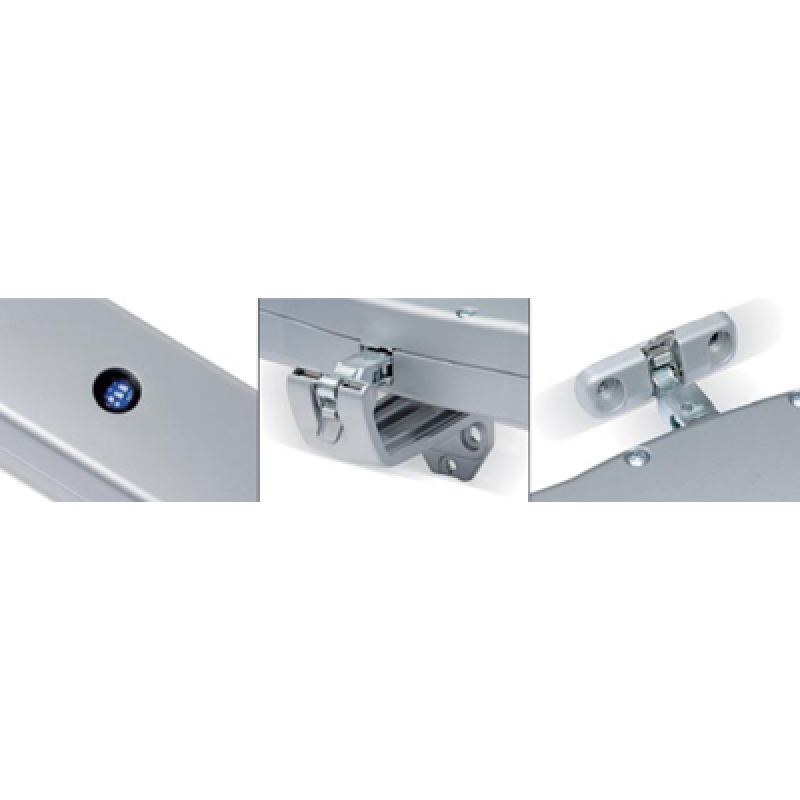

Kato 305/RWA Nekos is easy to install, it is mounted with quick coupling in the supports, without screws or fasteners (Nekos patented system); another Nekos patent provides for the quick release from the window also for easy cleaning. Strokes selectable by dip-switch.
Linear electric actuator with double-row four-link articulated chain, enclosed in a suitable aluminum container, suitable for moving top-hung windows, bottom-hung windows, domes and dormer windows. Push and pull power of 300 N.
Supplied complete with universal tilting support brackets with quick coupling and without screws (patented).
Electronic limit switch in opening with three strokes (200 - 300 - 500 mm) selectable at any time by dip-switch, with power absorption in closing and as overload protection.
Soft Stop and Relax function. Can be connected in parallel. Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).
Kato 305/RWA Nekos for sale online white, black or grey
Standard colors of the Kato 305/RWA Metal Chain Actuator: Black (RAL9005) with black cable, White (RAL9010) and Gray (RAL9006) with white cables.
Technical data Kato 305/RWA Nekos 24V:
- Model: KATO 305 RWA 24V;
- Push and pull force: 300 N;
- Strokes (select at any time): 200, 300, 400, 500mm;
- Supply voltage 24V DC;
- Current draw at rated load: 0.910 A;
- Power consumption at nominal load: 20 W;
- No-load travel speed: 8.9 mm/s;
- Duration of idle stroke (500 mm): 56 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP32;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel power supply of two or more motors: YES;
- Static holding force: 1700N;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;
- Power cord length: 2m;

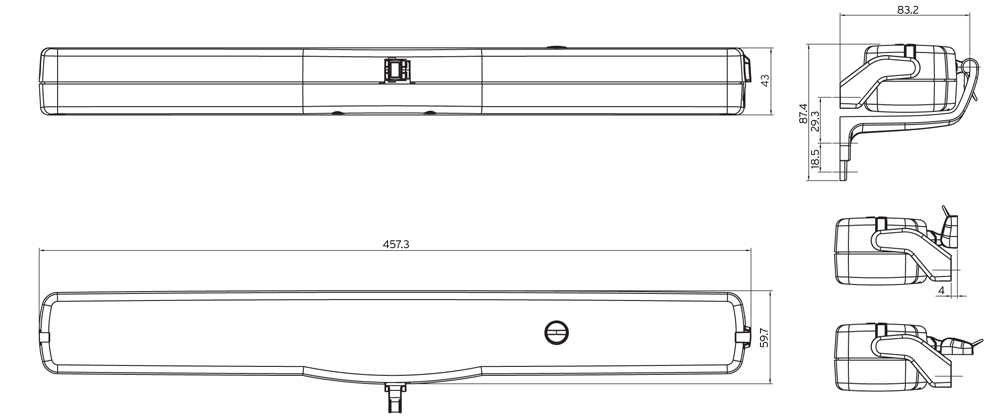

- Dimensions: 456x60x43mm;
- Appliance weight: 2.23 kg.
Each pack contains Kato 305/RWA Nekos:
- Electric actuator according to construction at 24VDC.
- 2 (2.5) meter (±5%) power cord with molded plug connector.
- Standard support brackets (A).
- Adhesive drilling template.
- Instruction manual.
- Bracket for bottom hung attachment (C) (supplied separately only on request) art.4010038.
- Bracket for projecting connection (D) (supplied separately only on request) art.4010039.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
