Kato 253 Nekos Chain Actuator 24V 250N Selectable Stroke 240/360mm
Kato 253 24V Nekos : linear electric chain actuator for
top hinged windows, bottom hung windows, domes and dormer windows .
Kato 253 is an
actuator with a double row four-link articulated chain , enclosed in a suitable container of composite material, suitable for moving top-hung windows, bottom-hung windows, cupolas and dormer windows. Power in traction and thrust 250N. Powered at 24V DC.
What does the Kato 253 24V Nekos window actuator include?
Kato 253 24V Nekos is supplied
complete with brackets for quick assembly without the use of screws (patented). Brackets for bottom-hung or projecting doors with quick coupling (patented).
Two mechanical selection strokes in opening. Limit stop in opening and closing with power absorption and as overload protection.
Can be connected in parallel. Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).
Kato 253 24V Nekos colours:
- Black (approximately RAL9004) with black power cord;
- White (approximately RAL9003);
- Gray (approximately RAL7047) with white cable.
Kato 253 Nekos 24V Chain Actuator is Lean and Simple
Kato 253 is the skilful evolution of Nekos development to meet market needs. Small, intelligent and for all “budgets”!

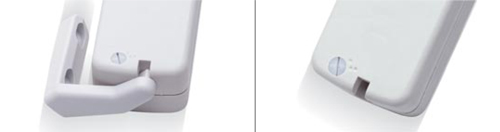

Simple selection of the two strokes mechanically, between 240 mm and 360 mm.
Equipped with a microprocessor with the following functions:
- Progressive starting ramp.
- Power control over the entire stroke.
- Race selection even simpler and more immediate.
- Relax function for relaxation of mechanical parts after each limit switch.
- Accessories compatible with the entire Kato series.
It has a small size, the body and the brackets are made of high resistance composite material (polyamide loaded with glass fibre).
Also this actuator adopts the same patents as the chain actuators produced with Nekos technology, both for the quick coupling support of the actuator and for the leaf attachments.
Kato 253 Nekos 24V technical data:
- Model: KATO 24V ;
- Push and pull force: 250 N;
- Strokes (select anytime): 240, 360 mm;
- Supply voltage: 24V;
- Current draw at rated load: 0.800 A;
- Power consumption at nominal load: ~18W;
- No-load travel speed: 12.8 mm/s;
- Duration of idle stroke (240 - 360 mm): 19 s - 28 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel power supply of two or more motors: YES (recommended max 30 actuators);
- Synchronized operation: NOT foreseen;
- Static holding force: 1500N;
- Limit switch in opening: Absorption of power;
- Closing limit switch: Absorption of power;
- Power cord length: 1m;

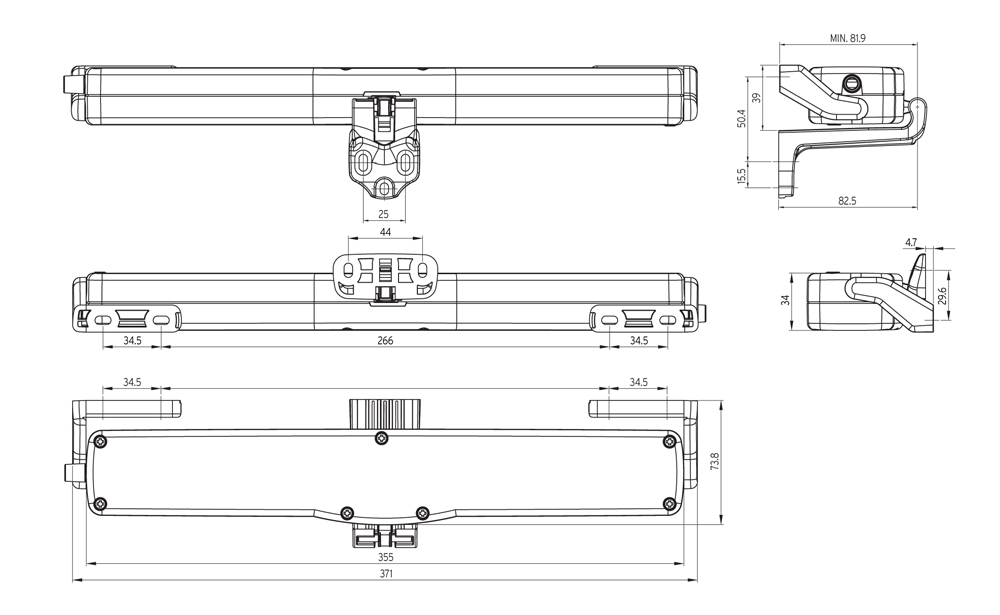

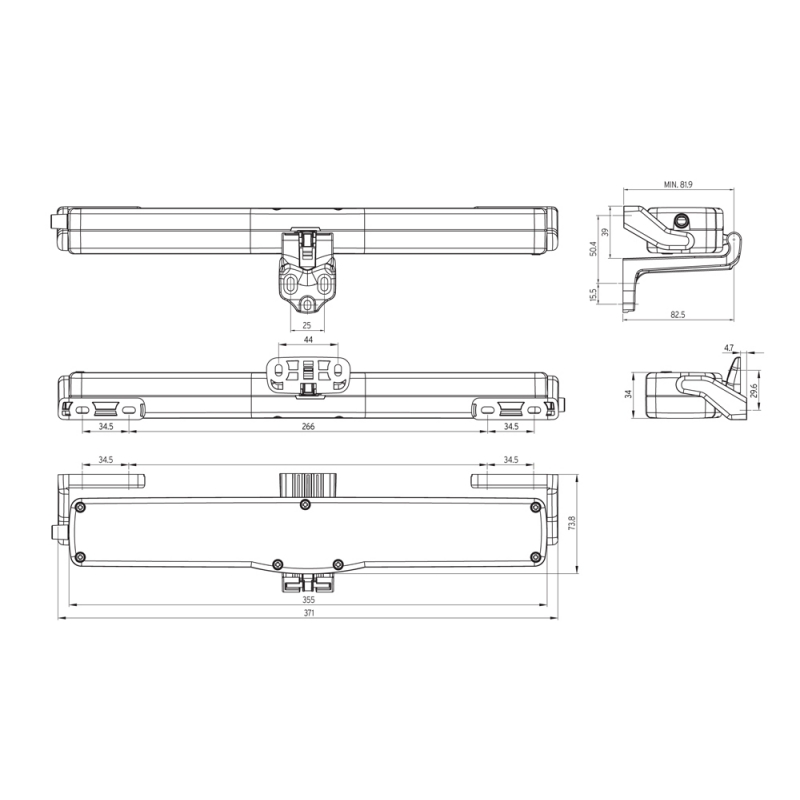

- Dimensions: 356x56x33.5mm;
- Appliance weight: 0.820 Kg.
KATO 253 24V: powered by a voltage of 24V═ (dc), two-wire power cable, LIGHT BLUE, connected to the + (positive) Open; Brown, connected to + (positive) Closes.
Each package of Kato 253 Nekos 24V chain actuator contains:
• Actuator with power supply cable directly connected to the machine.
• Standard support brackets with spacer (A).
• Bracket for bottom hung attachment (C).
• Bracket for projecting connection (D).
• Drilling template.
• Small parts pack.
• Instruction manual.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Nekos chain actuators for sale online
Nekos products are built in a workmanlike manner in
terms of safety , in compliance with the provisions of current laws. Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
CE marked , they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
