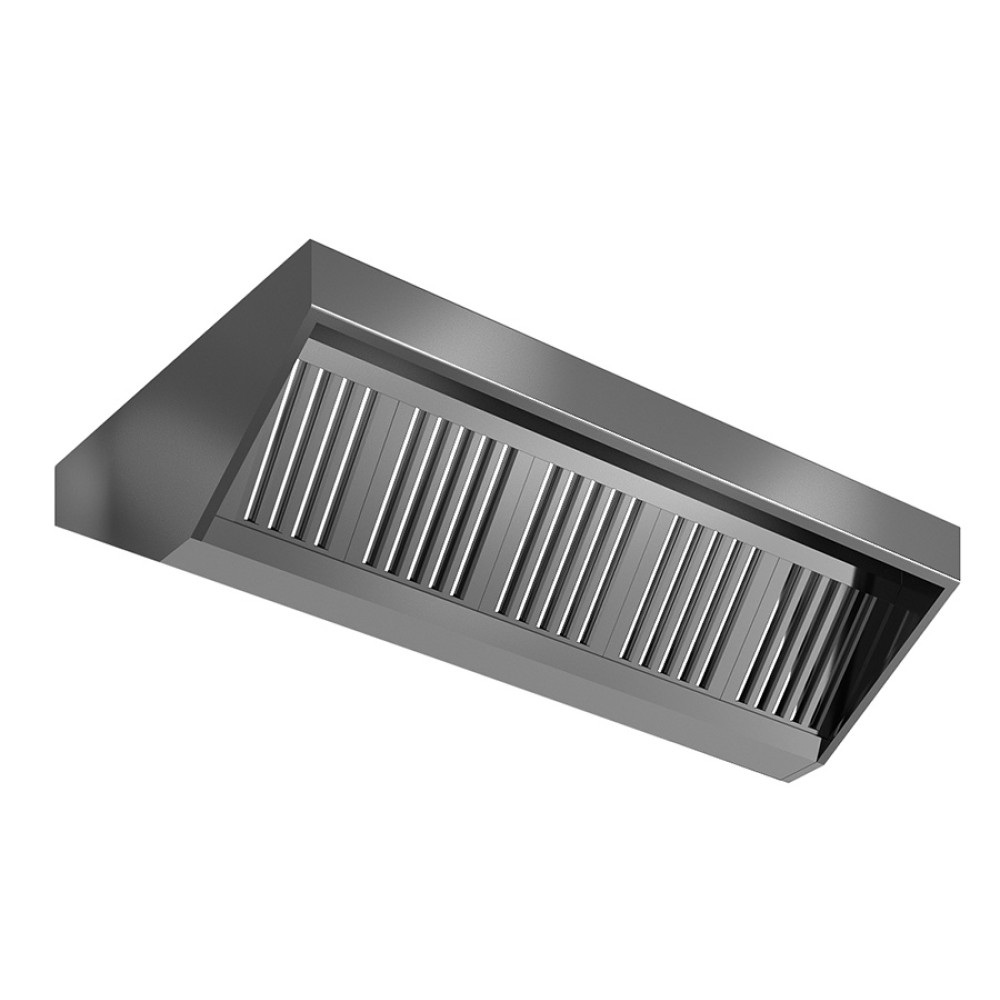

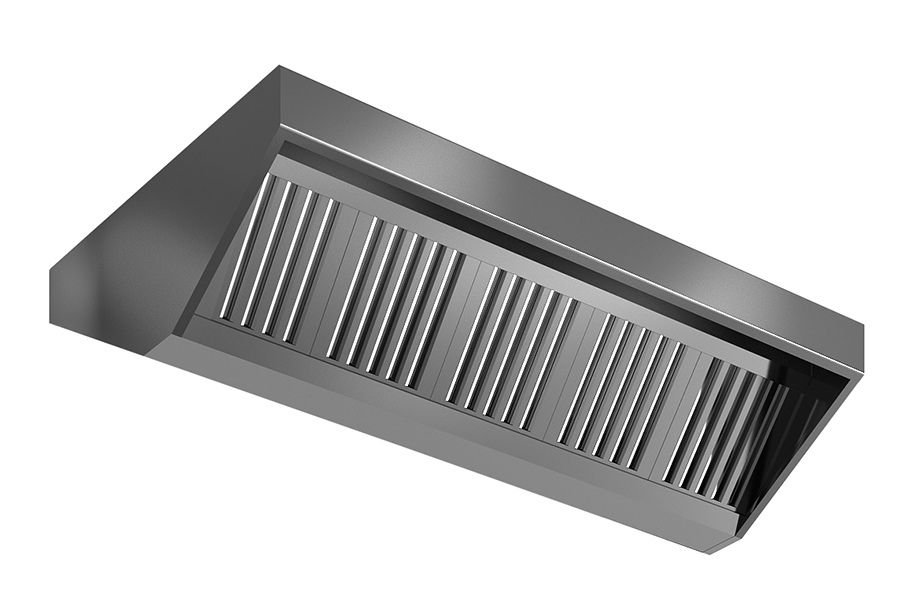

Island Snack Hood in Stainless Steel - High quality Italian production
The particular profile of the
Island Snack Hood makes it ideal
for cooking blocks with a depth of 70/90 cm , positioned in the center of the room, even in cases of low ceilings.
AISI 430 stainless steel construction , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts. Assembled by electro-welding.
Special executions (execution in AISI 304, assembly by welding) and LED lighting on request (contact us if you are interested).
The Island Snack hood in stainless steel is a high quality product made in Italy. With an elegant and refined design, this snack island hood represents the ideal solution for the kitchen.
Supplied with the Island Snack hood:
- Labyrinth grease filters in AISI 430 stainless steel;
- 1/2” condensate drain.
Notes on the Snack island hood:
- Hanging kit and flange not included;
- The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CIS14115 = CIS1416).
Island Snack Hood in Stainless Steel - Depth 1200 mm

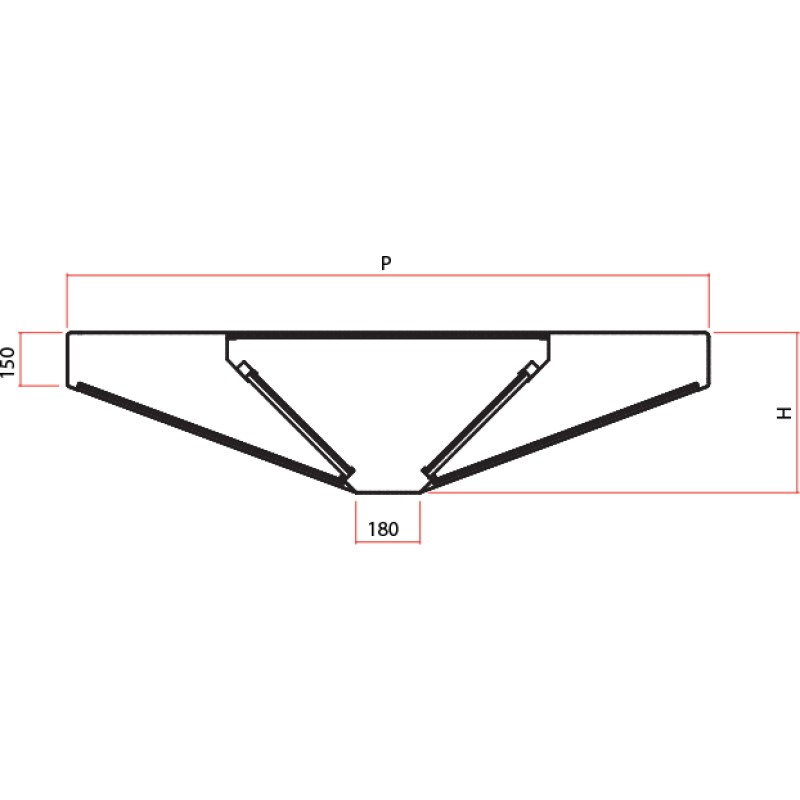

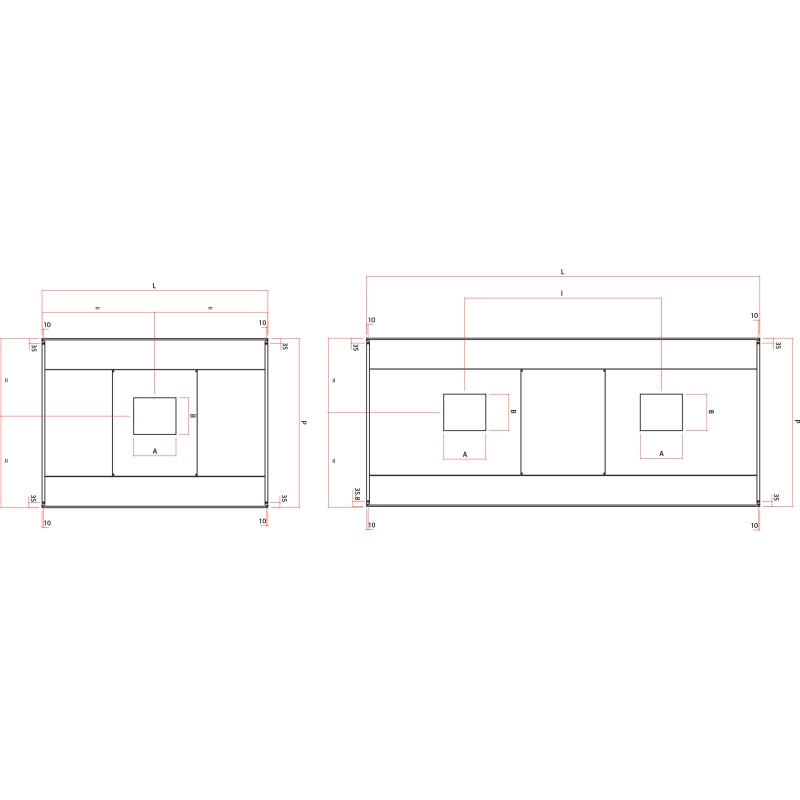

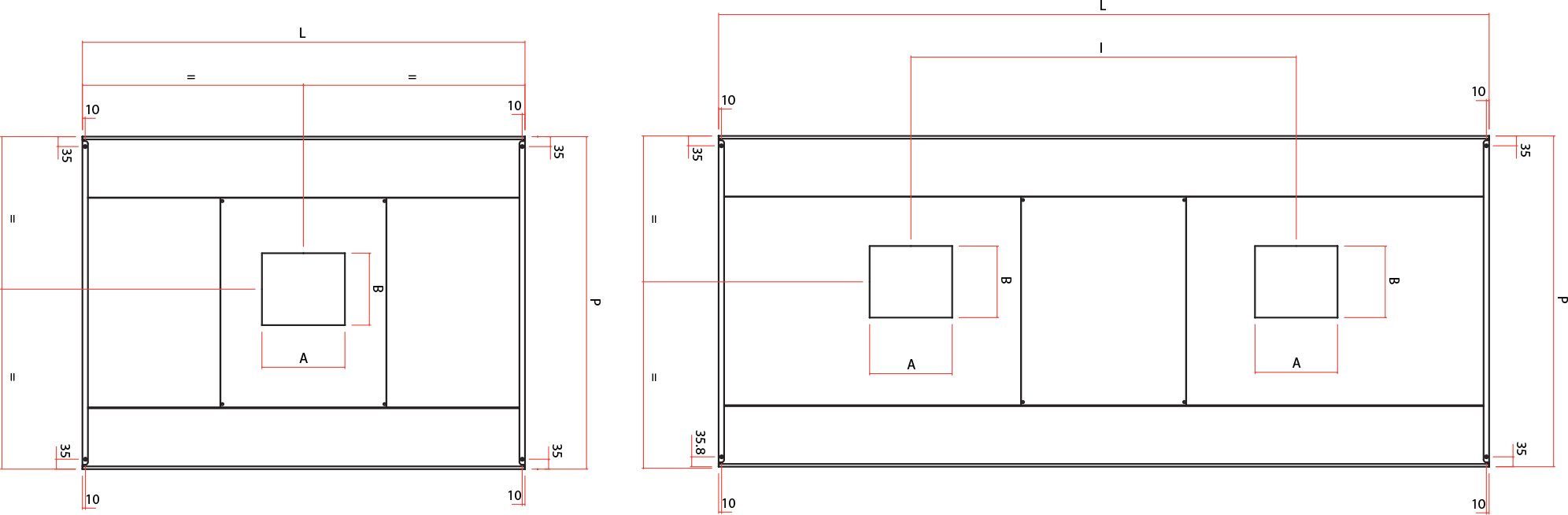

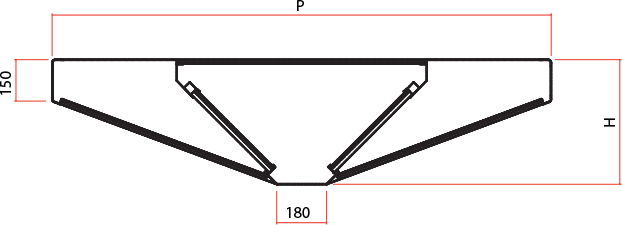

| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Flow rate* (m3/h) |
THE |
| (mm) |
(mm) |
(mm) |
(kg) |
(mm) |
| CIS 12/12 |
1200x1200x450 |
200x200 |
= |
4b |
37 |
1800 |
|
| CIS 12/14 |
1200x1400x450 |
250x250 |
= |
4b |
40 |
2100 |
|
| CIS 12/16 |
1200x1600x450 |
250x250 |
= |
6a |
47 |
2400 |
|
| CIS 12/18 |
1200x1800x450 |
250x250 |
= |
6b |
50 |
2700 |
|
| CIS 12/20 |
1200x2000x450 |
300X300 |
= |
8b |
57 |
3000 |
|
| CIS 12/22 |
1200x2200x450 |
300X300 |
= |
8b |
61 |
3300 |
|
| CIS 12/24 |
1200x2400x450 |
300X300 |
= |
8b |
64 |
3600 |
|
| CIS 12/26 |
1200x2600x450 |
300X300 |
= |
8b |
67 |
3900 |
|
| CIS 12/28 |
1200x2800x450 |
250x250x2 |
= |
10b |
72 |
4200 |
1400 |
| CIS 12/30 |
1200x3000x450 |
250x250x2 |
= |
10b |
77 |
4500 |
1500 |
| CIS 12/32 |
1200x3200x450 |
250x250x2 |
= |
10b |
81 |
4800 |
1600 |
| CIS 12/34 |
1200x3400x450 |
300X300X2 |
= |
12d |
86 |
5100 |
1700 |
| CIS 12/36 |
1200x3600x450 |
300X300X2 |
= |
12d |
91 |
5400 |
1800 |
| CIS 12/38 |
1200x3800x450 |
300X300X2 |
= |
12d |
95 |
5700 |
1900 |
Island Snack Hood in Stainless Steel - Depth 1400 mm
| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Flow rate* (m3/h) |
THE |
| (mm) |
(mm) |
(mm) |
(kg) |
(mm) |
| CIS 14/12 |
1400x1200x450 |
250x250 |
= |
4b |
38 |
2100 |
|
| CIS 14/14 |
1400x1400x450 |
250x250 |
= |
4b |
43 |
2500 |
|
| CIS 14/16 |
1400x1600x450 |
300x300 |
= |
6a |
50 |
2800 |
|
| CIS 14/18 |
1400x1800x450 |
300x300 |
= |
6b |
54 |
3200 |
|
| CIS 14/20 |
1400x2000x450 |
300x300 |
= |
8a |
60 |
3500 |
|
| CIS 14/22 |
1400x2200x450 |
400x300 |
= |
8a |
66 |
3900 |
|
| CIS 14/24 |
1400x2400x450 |
400x300 |
= |
8b |
69 |
4200 |
|
| CIS 14/26 |
1400x2600x450 |
300X300X2 |
= |
8b |
74 |
4600 |
1300 |
| CIS 14/28 |
1400x2800x450 |
300X300X2 |
= |
10b |
79 |
4900 |
1400 |
| CIS 14/30 |
1400x3000x450 |
300X300X3 |
= |
10b |
84 |
5300 |
1500 |
| CIS 14/32 |
1400x3200x450 |
300X300X4 |
= |
10b |
89 |
5600 |
1600 |
| CIS 14/34 |
1400x3400x450 |
300X300X5 |
= |
12b |
94 |
6000 |
1700 |
| CIS 14/36 |
1400x3600x450 |
300X300X6 |
= |
12b |
99 |
6400 |
1800 |
| CIS 14/38 |
1400x3800x450 |
300X300X7 |
= |
12b |
104 |
6700 |
1900 |
Island Snack Hood in Stainless Steel - Depth 1800 mm
| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Flow rate* (m3/h) |
THE |
| (mm) |
(mm) |
(mm) |
(kg) |
(mm) |
| CIS 18/12 |
1800x1200x450 |
300x300 |
= |
4d |
43 |
2750 |
|
| CIS 18/14 |
1800x1400x450 |
300x300 |
= |
6c |
49 |
3200 |
|
| CIS 18/16 |
1800x1600x450 |
300x300 |
= |
6c |
56 |
3650 |
|
| CIS 18/18 |
1800x1800x450 |
400x300 |
= |
6d |
61 |
4050 |
|
| CIS 18/20 |
1800x2000x450 |
400x300 |
= |
8c |
68 |
4550 |
|
| CIS 18/22 |
1800x2200x450 |
400x300 |
= |
8c |
73 |
5000 |
|
| CIS 18/24 |
1800x2400x450 |
300X300X2 |
= |
8d |
76 |
5450 |
|
| CIS 18/26 |
1800x2600x450 |
300X300X2 |
= |
8d |
82 |
5900 |
1300 |
| CIS 18/28 |
1800x2800x450 |
300X300X2 |
= |
5d |
87 |
6350 |
1400 |
| CIS 18/30 |
1800x3000x450 |
300X300X2 |
= |
5d |
93 |
6800 |
1500 |
| CIS 18/32 |
1800x3200x450 |
300X300X2 |
= |
5d |
98 |
7250 |
1600 |
| CIS 18/34 |
1800x3400x450 |
300X300X2 |
= |
12d |
104 |
7700 |
1700 |
| CIS 18/36 |
1800x3600x450 |
300X300X2 |
= |
12d |
109 |
8200 |
1800 |
| CIS 18/38 |
1800x3800x450 |
300X300X2 |
= |
12d |
115 |
8600 |
1900 |
*: average flow rate calculated with a flow velocity of 0.35 m/s
