Island Hood for Kitchen in Stainless Steel and Electric Fan Motor

Brands: OndaInox

Code: CIM

€ 1.000,00

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

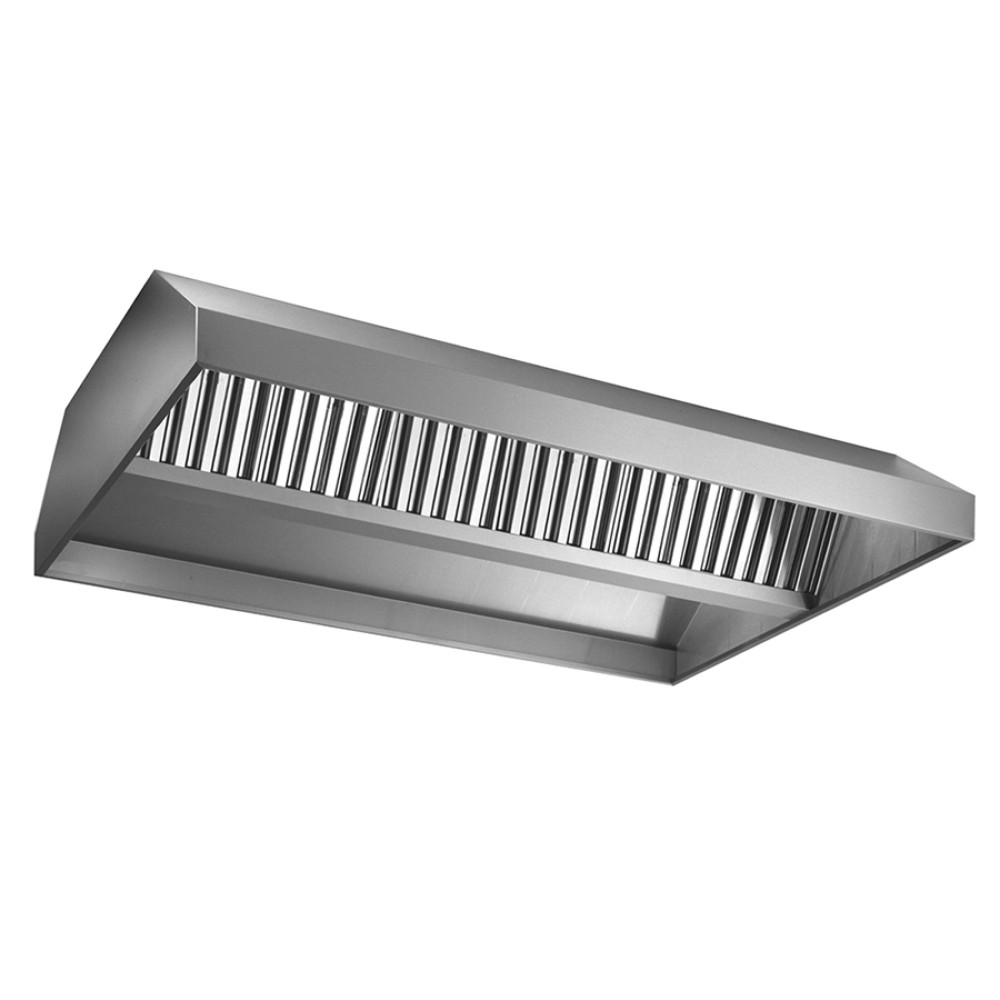

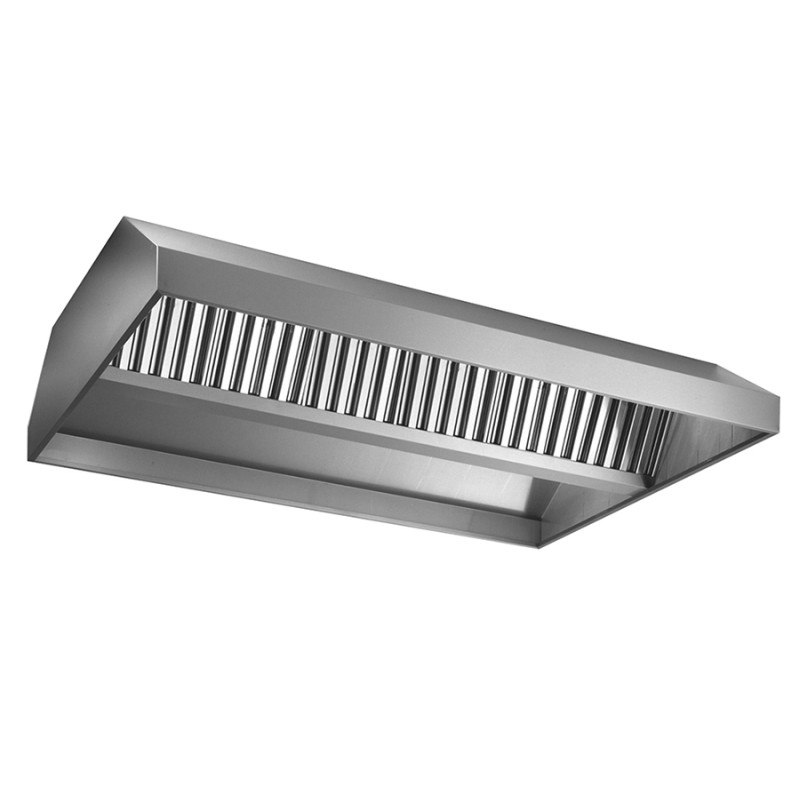

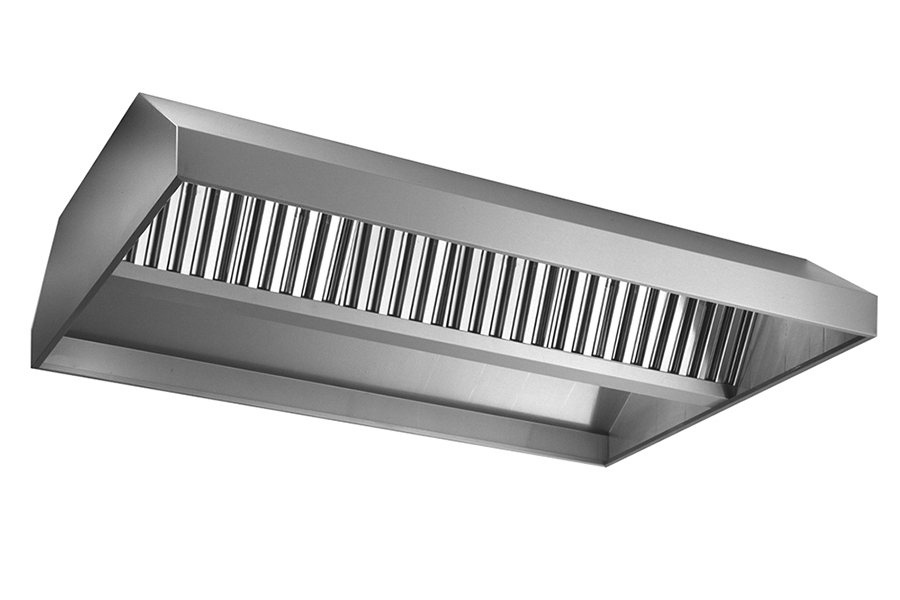

Island Hood for Kitchen - Made in Stainless Steel - Electric Fan Motor Included

The island hood for the kitchen is made of high quality stainless steel and is equipped with an electric fan motor .

This island hood is the ideal solution for your kitchen: having a versatile design, this hood is perfect for cooking blocks with a depth of 60-70-90 cm, inserted in the center of the room where cooking takes place.

Made with high quality materials, its AISI 430 construction and Scotch-Brite satin finish make it resistant and easy to clean. Furthermore, it is also completely re-edged in the internal parts to ensure greater resistance.

With the included electric fan motor, this island-style pendant hood allows efficient fume extraction, keeping the kitchen fresh and clean.

Cappa a Isola per Cucina - Fatta in Acciaio Inox - Motore Elettroventilatore Incluso

Features - Island Hood - Stainless Steel with Motor

Profile detail for cooking blocks with a depth of 60-70-90 cm, positioned in the center of the room;
Made in AISI 430 , Scotch-Brite satin finish. Fully edged, even in the internal parts;
Assembled by electro-welding;
Special executions (execution in AISI 304, assembly by welding) and LED lighting on request.

Supplied with the island kitchen hood:

Labyrinth grease filters in AISI 430 stainless steel
Centrifugal electric fan 220V Single-phase 50/60Hz
1/2” condensate drain

Notes on the pendant hood:

Hanging kit and flange not included.
The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: CIM12115 = CIM1216.

Cappa a Isola - con Elettroventilatore - Profondità 1200 mm

**Island hood - with electric fan - depth 1200 mm**

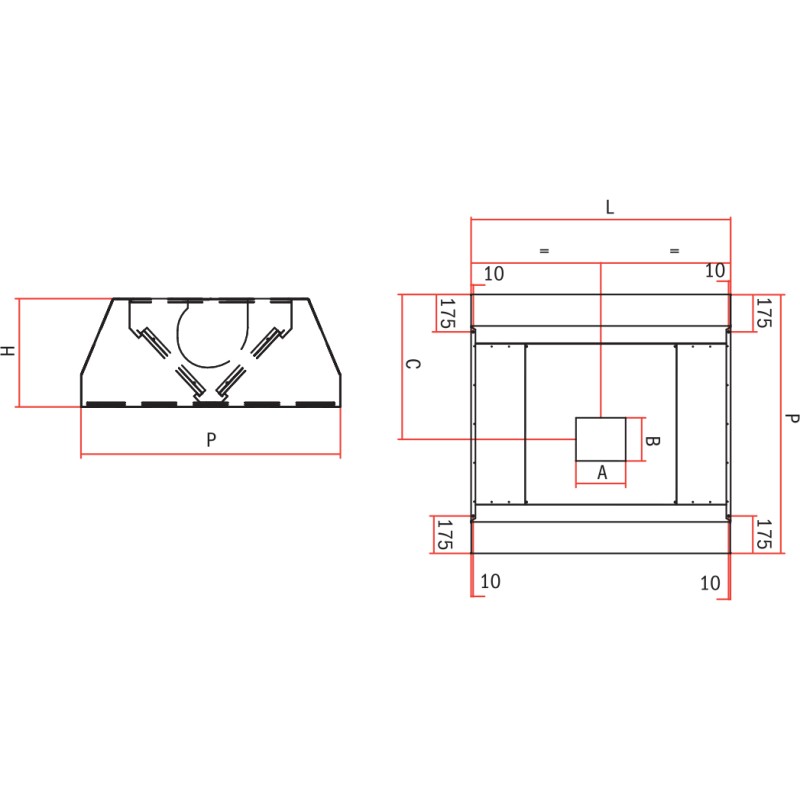

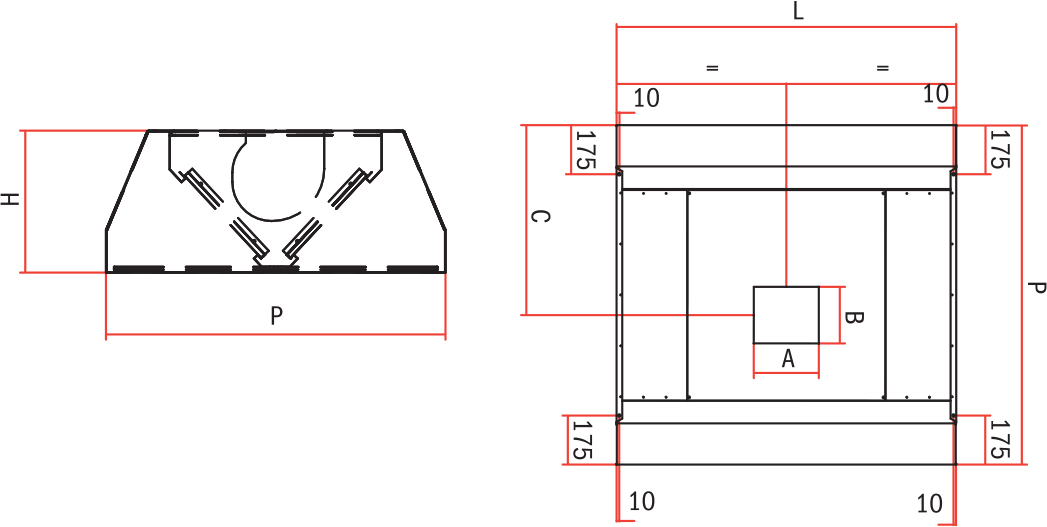

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	Fan	Watt
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	Fan	Amps
CIM 12/12	1200x1200x500	300x260	670	4b	57	9/9T	300/4.1
CIM 12/14	1200x1400x500	300x261	670	4b	61	9/9T	300/4.1
CIM 12/16	1200x1600x500	300x262	670	6a	69	8/9T	420/3.1
CIM 12/18	1200x1800x500	300x263	670	6b	72	8/9T	420/3.2
CIM 12/20	1200x2000x500	300x264	670	8a	80	8/9T	420/3.3

Cappa a Isola - con Elettroventilatore - Profondità 1400 mm

**Island hood - with electric fan - depth 1400 mm**

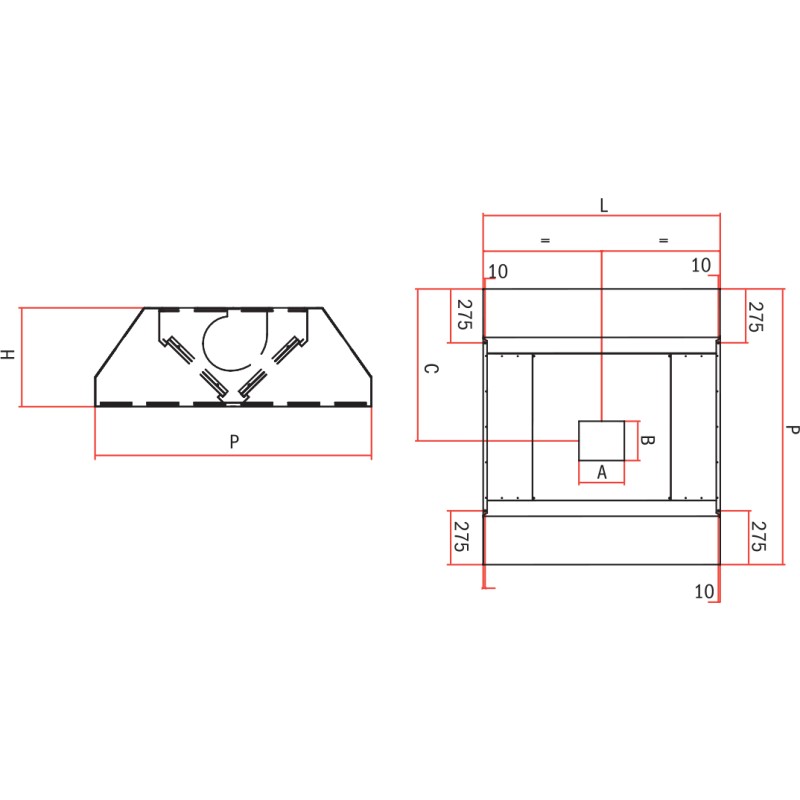

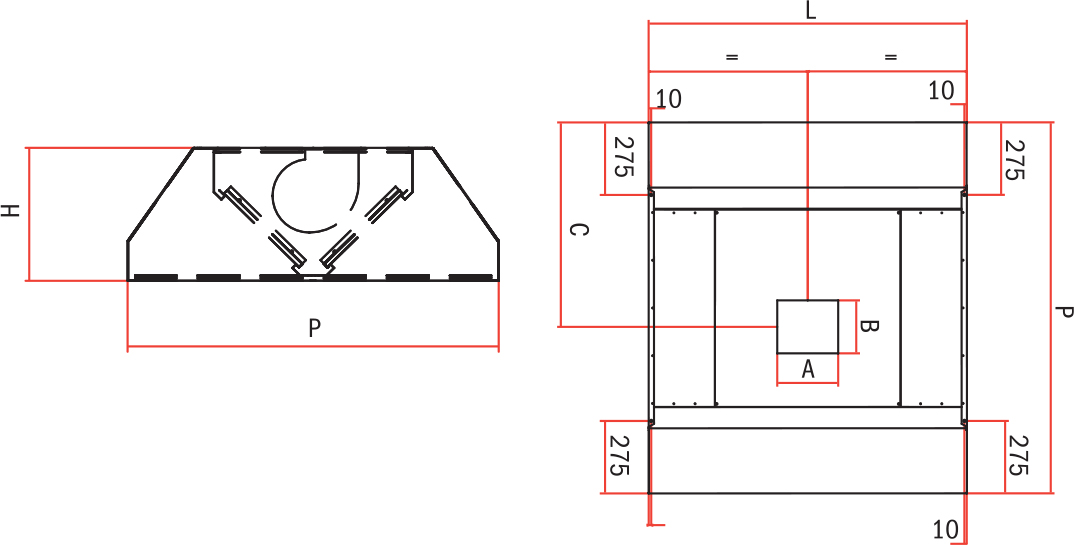

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	Fan	Watt
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	Fan	Amps
CIM 14/12	1400x1200x500	300x260	770	4b	58	9/9T	300/4.1
CIM 14/14	1400x1400x500	300x261	770	4b	63	9/9T	300/4.1
CIM 14/16	1400x1600x500	300x262	770	6a	70	8/9T	420/3.1
CIM 14/18	1400x1800x500	300x263	770	6b	74	8/9T	420/3.2
CIM 14/20	1400x2000x500	300x264	770	8a	82	8/9T	420/3.3
