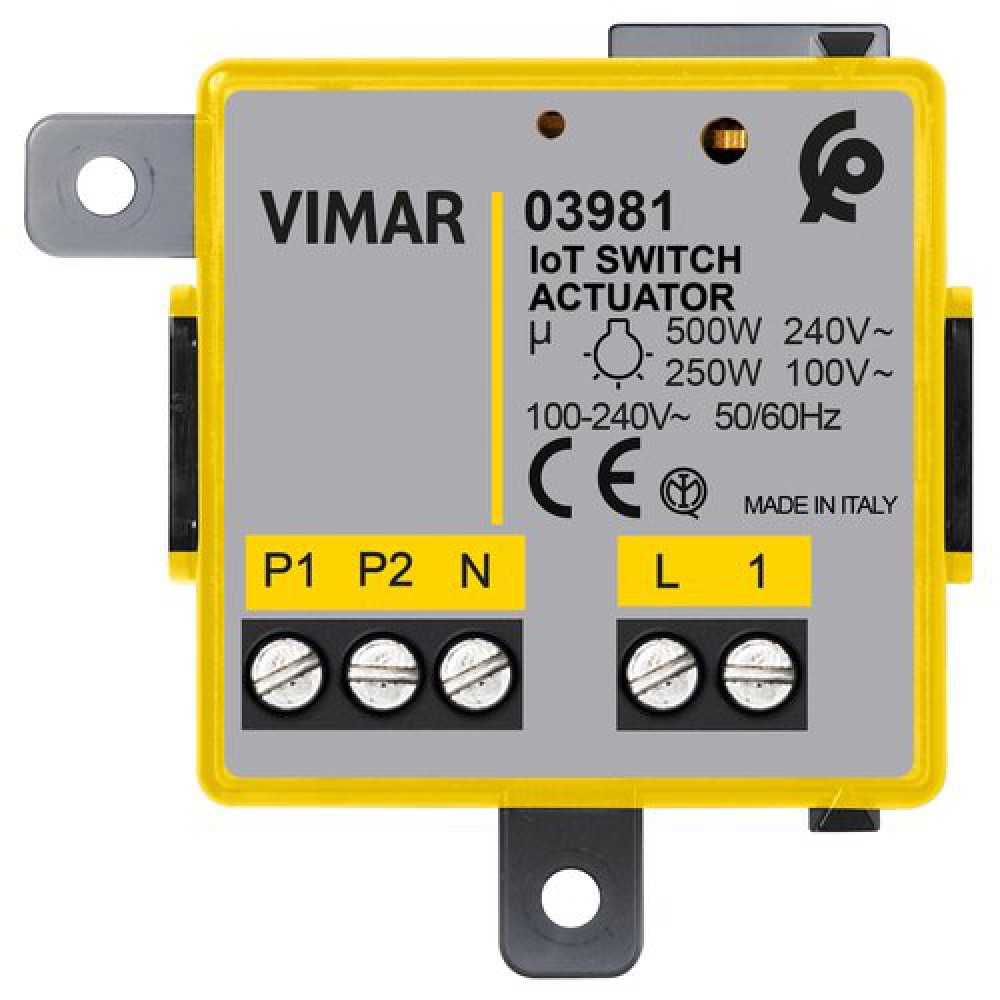

IoT Connected Relay Module 03981 Vimar
IoT electronic control device with NO relay output 100-240 V 50/60 Hz for 500 W incandescent lamps, 100W LED lamps, 250 VA electronic transformers, 120 W fluorescent lamps, remote control, 1 input for wired control for calling up a scenario, double IoT technology on
Bluetooth 5.0 standard for creating VIEW Wireless mesh system and on
Zigbee 3.0 standard, power supply 100-240 V 50/60 Hz,
recessed installation (retrofit).
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT , through the appropriate Zigbee gateway or hub;
- The shape favors the maximum flexibility of installation (retrofit, junction boxes, etc.);
- If directly piloted by the commands without battery, wiring with electromechanical buttons is not necessary.
The
relay module connected from the rear allows you to
drive a load via a wireless connection and from a traditional remote button.
It is equipped with:
- 1 relay output to control the loads indicated in the CONTROLLABLE LOADS section;
- 1 input to control the device;
- 1 input to recall a scenario in Bluetooth mode (in Zigbee mode both inputs control the device).
Vimar connected devices: prices and offers on Windowo
Vimar is an Italian company that produces
home automation and electrical equipment of different types: connected domestic series, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
The
Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
