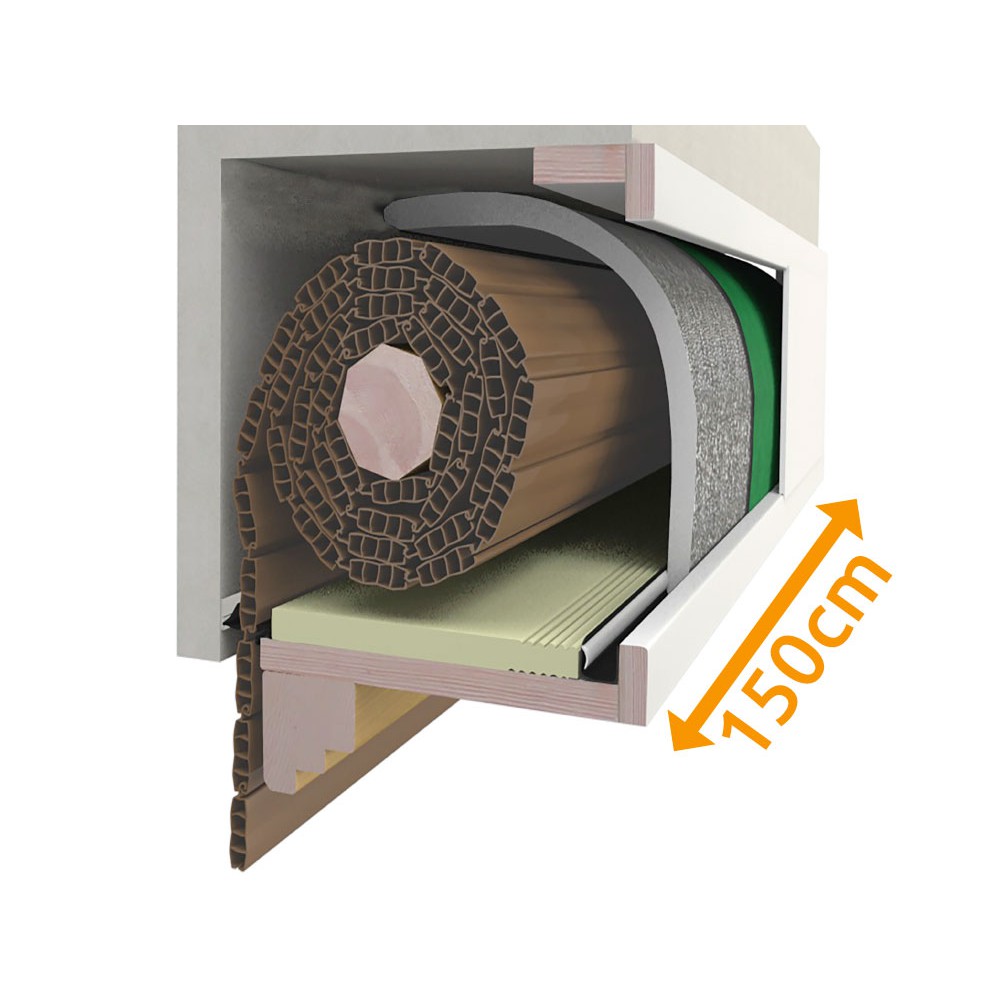

How to insulate the roller shutter box? 150 cm PosaClima Renova kit
Composition of various items for
thermoacoustic insulation of the roller shutter box. For this composition, the maximum length of the box is 150 cm (internal measurement of the box).
Would you like other products for how to
insulate the roller shutter box ? On Windowo you can buy the compositions for different maximum lengths of the box.
How to avoid the dispersion of energy through the box compartment?
In the context of the energy redevelopment of a building, the compartment of the box that houses the roller shutter (roller shutter) represents one of the most critical points of all. In fact, through the sliding slot of the fabric, the air at the external temperature enters the box and remains confined with respect to the internal environment only by the closing cover. The latter always has a very thin thickness and is normally not airtight.
The situation is then aggravated by the slot where the belt runs, a real through hole that connects internal and external. As a result, dumpsters very often waste more energy than windows themselves.
The solution: the PosaClima Renova system
PosaClima Renova proposes a system of thermal and acoustic insulation of the internal compartment of the box, which is very simple to perform and very economical in the realization.
The results after this intervention are really surprising, as the transmittance coefficient U.sb of the box goes from 4.88 W / m2K of the traditional wooden box to 1.35 W / m2K for the same insulated box with the PosaClima Renova system.
thus reducing the heat flow and consequent heating losses by almost 4 times.
One of the great advantages of the PosaClima Renova system for the insulation of the box is the great versatility and simplicity of execution that make it suitable for any box and within the reach of anyone interested in carrying out this work: the necessary equipment is in fact minimal and the difficulties non-existent. .
Here are the articles of which this composition is composed:
1) A 10 mm thick Flexoterm self-supporting reflective and insulating panel, measuring 120 cm long x 110 cm high.
2) Two 10 mm thick Termopav panels, measuring 105 x 25 cm.
3) 10 mm PVC containment U for Flexoterm, two 100 cm pieces.
4) Two 100 cm Brushofix pvc toothbrush holder profiles.
5) An Air-stop toothbrush height 10 mm, cut from 150 cm.
Side caps in Flexoterm to isolate the sides of the box, which can be obtained from article 1.
A vapor barrier tape, cut 80 cm.
You can choose between the 4 available versions:
Standard composition: this is the normal version and without modifications. The thermal and acoustic seal is standard.
Thermal Composition: the composition is implemented by supplying a Flexoterm panel, a ThermoPav panel and a PVC containment U for Flexoterm with a thickness of 20 mm, instead of the standard which has a thickness of 10 mm (see article 1, 2 and 3 of the composition).
Acoustic Composition: the cuts of Acu-stop acoustic panel (item 6 in the image of the composition) are added to the Standard Composition: two cuts measuring 60 cm long x 80 cm high, one cut measuring 30 cm long x 80 cm in height.
Thermal and Acoustic Composition: contains both the increased thickness and the acoustic panel. It combines the advantages of the Thermal Composition and the advantages of the Acoustic Composition together in a single composition.
RENOVA CLIMATE INSULATION KIT
| COMPOSITION KIT MODEL |
USB CASS. WOOD |
USB CASS. PVC |
USB CASS. ALUMINUM |
| PCR150 STANDARD 1 TOOTHBRUSH |
1.8 |
1.7 |
- |
| PCR150 STANDARD 2 BRUSHES |
0.95 |
0.85 |
- |
| PCR150 THERMAL 1 TOOTHBRUSH |
1.4 |
1.2 |
2.2 |
| PCR150 THERMAL 2 BRUSHES |
0.81 |
0.7 |
1.1 |
| PCR150 ACOUSTICS 1 TOOTHBRUSH |
1.8 |
1.7 |
- |
| PCR150 ACOUSTICS 2 BRUSHES |
0.95 |
0.85 |
- |
| PCR150 THERMAL AND ACOUSTIC 1 TOOTHBRUSH |
1.4 |
1.2 |
2.2 |
| PCR150 THERMAL AND ACOUSTIC 2 BRUSHES |
0.81 |
0.7 |
1.1 |
How to insulate the roller shutter box? Here is the intervention:
The work of laying the thermo-acoustic materials for the insulation of the box is extremely simple and fast. Each phase of this intervention is explained clearly and in depth in the manual containing the assembly instructions.
The document containing the assembly instructions can be downloaded in the "Documents" section of this product sheet.
In the same section, the following certifications can also be downloaded:
- Acoustic certification;
- Box Thermal Transmittance Certification;
- Air Seal Certification.
