Inka 356 Nekos Metal Chain Actuator 230V 350N Selectable Stroke 300 - 600 - 800 - 1000 mm

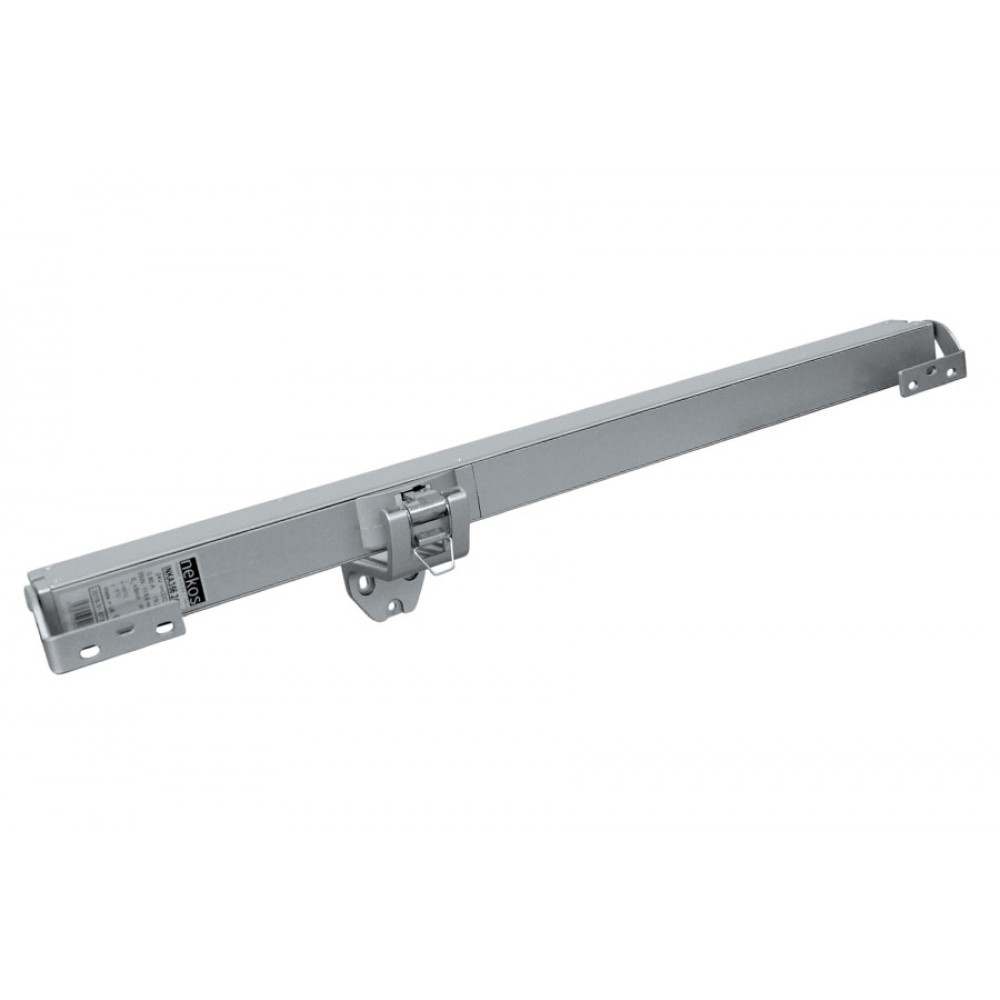

Inka Nekos: chain actuator with aluminum body
Inka Nekos is an electric chain actuator with push and pull force 350 N with maximum stroke (selectable alternative strokes): 300 (100, 200) – 600 (400, 500) – 800 (600, 700) – 1000 (800, 900)mm.
Inka Nekos actuator standard colours: GRAY aluminum (painted RAL 9006) - WHITE cable (mod. 230V).
Inka 356 Nekos, the High Technology Chain Actuator
The latest addition to the Nekos chain actuator family expands the offer in terms of force (350 N) and range of strokes (from 200 to 1000 mm), while adapting to any type of window (projected, bottom-hung, dome and dormers).
The machine, enclosed in an aluminum casing, has an elegant design and compact dimensions (34.6×37 mm) which allow it to be installed on sight with minimal visual impact, recessed and in curtain walls.
Natural Smoke and Heat Evacuation (EFC or RWA): built entirely in metal, INKA 356 has been certified according to the EN12101-2 standard for use in RWA plants.
Silent operation: only 41 dB without sacrificing
power . In fact, thanks to careful studies and research, it has been possible to create a gear motor unit which, combined with a new electronic concept of energy performance, allows the actuator to give the right force when needed.
A sophisticated electronics with microprocessor allows it to be easily inserted into industrial and domotic systems and to be connected to other devices to transmit the window closed/open signal.
The Inka 356 actuator in combination with the K-LOCK electromechanical lock and the perimeter hardware, constitutes a valid anti-burglary window block and, by achieving perfect closure of the sash, a high thermal K.

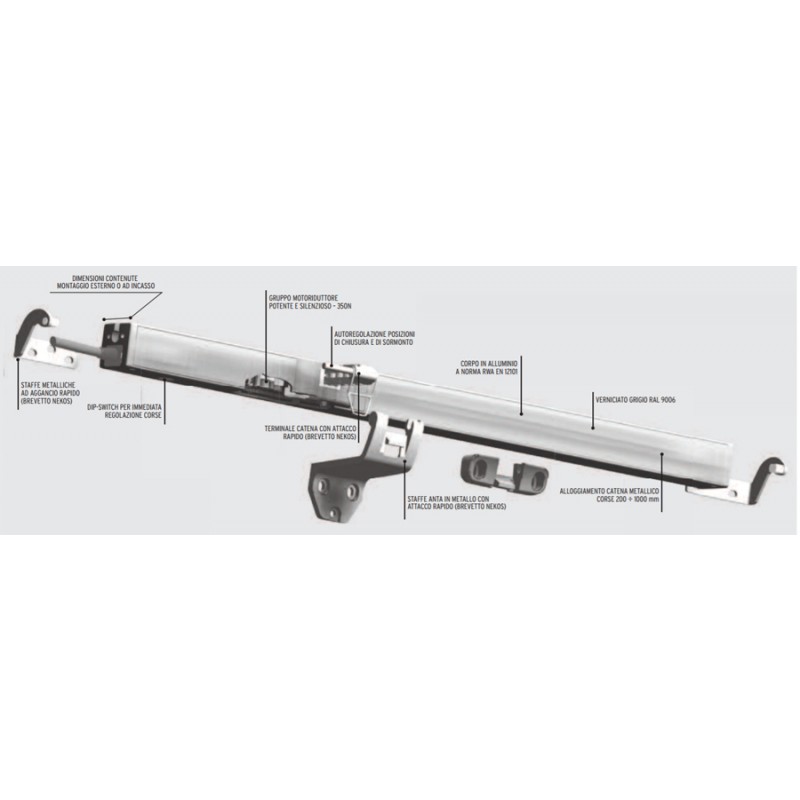

The other strong points of the Inka actuator, common to all Nekos products:
Easy assembly thanks to the quick-fit motor and leaf support brackets (NEKOS patents), the self-adjustment of the closing stroke and the immediate adjustment of the strokes with dip-switches.
Reliability tested with fatigue tests at 10,000 cycles at maximum load and with functional testing done on 100% of the production.
Made in Italy : Nekos designs and builds all its products, making use of qualified Italian suppliers. The electronic research and development department within the company takes care of the hardware and software part, the beating heart of each Nekos product.
Maximum travel according to the height of the door: choose which model to buy by selecting the variant.
The actuator can be recessed mounted in the frame but also externally on the frame or on the sash. In any case, the stroke of the actuator depends on the height of the leaf and its application. During the run, check that the chain does not touch the profile of the leaf, there are no obstacles to the opening or forcing of the same on the frame.
Inka 356 Nekos technical specifications:
- Power control throughout the stroke (stop in case of overload);
- Ramp at start (SOFT START) and at stop (SOFT STOP);
- Limit switch: electronic in opening with variable strokes and selectable with dip-switches, self-regulation in the closed position (by power absorption), automatic acquisition of the overlap;
- Relax function: relaxation of the mechanical parts after each limit switch generated by a stop due to power absorption;
- Gray painted aluminum casing (RAL 9006) with white cable (230V version), mounting brackets
- Support and door coupling in metal (die-cast aluminium) with quick connection without screws (Nekos patent);
- Articulated chain with four links in double row of STAINLESS STEEL, for high durability and resistance to atmospheric agents.
Technical data Inka 356 Nekos:
- Model: NEKOS INKA 356 230V;
- Push and pull force: 350 N;
- Maximum stroke (selectable alternative strokes): 300 (100, 200) – 600 (400, 500) – 800 (600, 700) – 1000 (800, 900) mm;
- Power supply voltage: 110÷230VAC 50/60Hz;
- Current consumption at rated load: 0.23A;
- Power consumption at nominal load: 29 W;
- No-load translation speed: 11 mm/s;
- Duration of the maximum stroke at nominal load (Open): Stroke 300/600/800/1000 = 28 / 54 / 72 / 90 s;
- Duration of maximum stroke at rated load (Close): Stroke 300/600/800/1000 = 36 / 67 / 88 / 109 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: -20 °C ÷ +70 °C;
- Degree of protection for electrical devices: IP32;
- Soft Stop / Start: YES;
- Relax function: YES;
- Learning the overlap of the windows: Self-determination of the position;
- Parallel connection: YES;
- Power cable type and length: H05VV-F - 2 m;
- Opening limit switch: Electronic with dip-switch setting;
- Closing limit switch: Absorption of power;
- Overload Protection: Power Absorption;

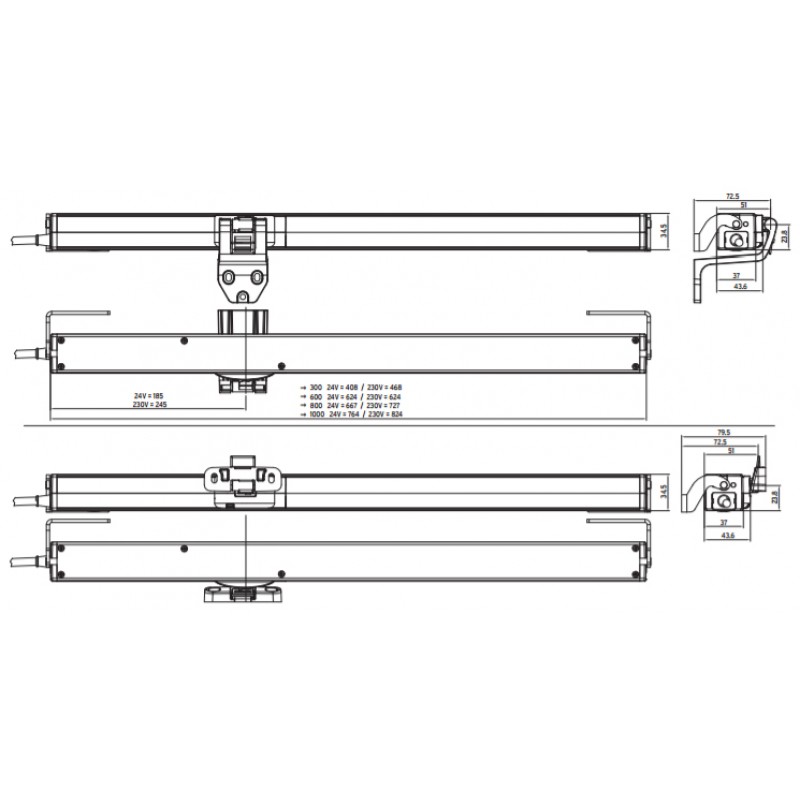

- Dimensions of actuators at 230V (strokes 300/600/800/1000) 34.6x37 L=468/624/727/824 mm;
- Static Holding Force: 2000N;
- Weight: 0.9/1.4/1.8/2.2 Kg.
Each pack contains:
- Electric actuator according to construction at 110÷230VAC 50/60Hz.
- 2 (2.5) meter (±5%) power cord with molded plug connector.
- Adhesive drilling template.
- Instruction manual.
Optionals available:
•
Inka 356 series brackets must be purchased separately (search for them on Windowo).
• RWA form must be requested separately.
• On request available with galvanized steel chain.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
- Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
- Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
- The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
- CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
