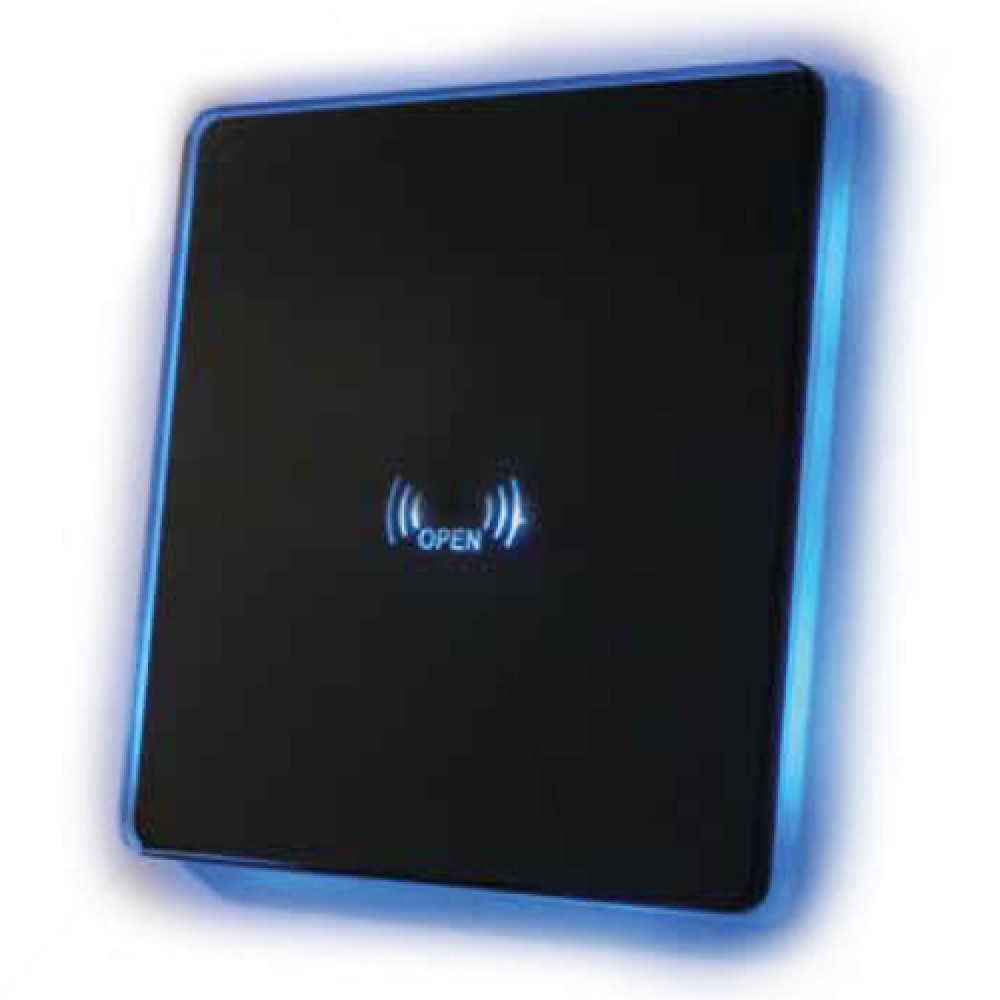

Card Reader Control Unit for Power Activation 55510RF Hotel Opera Line Series
Use of Opera card reader control unit
Internal room reader for activating electricity by recognizing a transponder card.
Linea Hotel series access control system.
Card reader control unit variants
- RFID control unit/reader version
- RFID control unit/reader version for opening the Common Area
Features Hotel Card Reader Control Unit 55510RF Opera
- Control unit with RFID card reader that can be used as a door opener (if used individually) or as a room current activator reader (if used in combination with the reader art. 55514RF which can be purchased separately on Windowo).
- Dimensions: mm.120 x 120 x 44.
- Glossy black plexiglass front (glossy white on request) with RGB LED lighting (7 colors available).
- Power supply and controls: 24 Vdc from power supply art. 05330 (purchasable separately on Windowo).
- 3 A relay output for user activation.
- Open collector auxiliary output for external 24 Vdc relay.
- Real Time Clock for managing card validity.
- Connection with transponder reader via 5-conductor cable or 3-conductor coaxial cable.
- Card inserted signaling LED.
Application example of Opera 55510RF hotel card reader control unit
Linea Hotel Opera series: the ideal solution for opening hotel rooms
- Customizable finish with insertion on all built-in civil series.
- Stand-alone system for each room.
- Reading on transponder cards.
- Can be combined with electric strikers or electric locks.
- Software for managing customer and service cards from a PC.
Opera Operating Access brand card reader
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
Opera control unit Made in Italy
Over 40% of the turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and the quality of work. We are proud to produce and live in Modena, a town in northern Italy which has been included in the UNESCO world heritage site since 1997.
