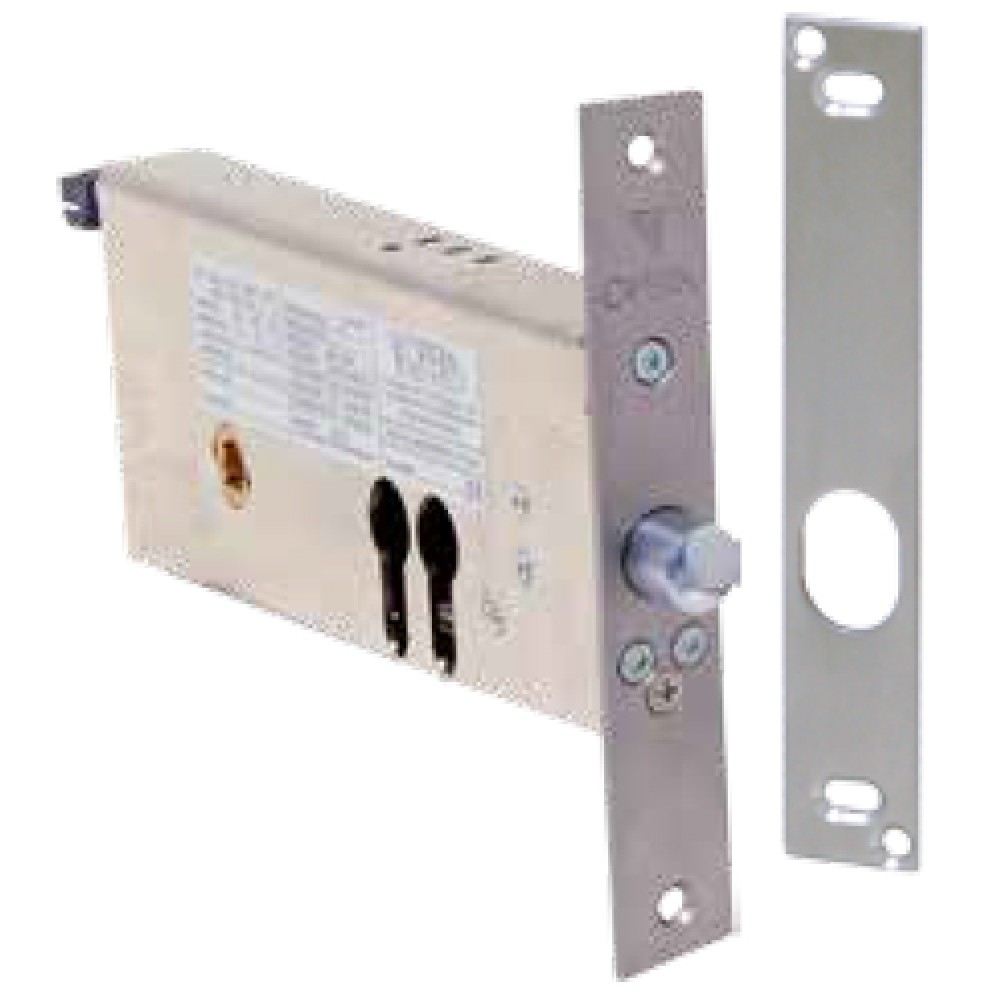

Horizontal Security Solenoid Bolt for Single Doors 27800 Classica Series Opera
Use
Horizontal security solenoid bolt for single doors.
Fail locked deadbolt closed without power variants:
- Without handle frame
- With handle frame (mm) 8
Characteristics
Mechanical opening with European type cylinder.
(cylinder with internal knob not usable).
Striking plate in stainless steel (mm) 160 x 25 x 3.
Armature plate in stainless steel (mm) 150 x 25 x 3 with magnet adjustable in extension.
Revolving bolt in anti-cutting hardened steel with mechanical block in closed position.
Deadbolt dimensions (mm): extension 20 (25 in the XL version), diameter 16.
Operating voltage: from 10 to 30 Vdc.
Absorbed current: 2.5/3 A peak - 130/230 mA for maintenance with electronic control.
Internal microprocessor control electronics.
Rapid plug-in connector.
Ready for interlocking connection of 2 or more doors.
N.O. Opening control.
Deadbolt position contact C. / N.O. / N.C.
Opto-electronic bolt position control.
Magnetic door position sensor.
Push buttons for monitoring and adjustment of relocking times from 0-5.
seconds upon approach of the door and from 0-60 seconds if the door is not opened.
The timings can be disabled for use of the solenoid bolt with external control electronics.
Backsets available:
70 mm and 90 mm on the same mechanics.
Packaging
Solenoid bolt, armature plate, cylinder screw and connector.
Measures
Example single door with solenoid lock
Horizontal security solenoid lock for emergency exits.
Insertion on the door.
Single door operating system (condominiums, offices, companies.).
Interlocked doors operating system (banks, jewelries, corporations).
To be matched with intercom and access control systems.
