Holding Electromagnet Opera 19002 in Aluminum with Release Button

Opera
Brands: Opera
Code: 19002
-20%
€ 27,97 € 34,97
Prices excluding VAT
Holding electromagnet for swing fire doors, Opera code 19002. Standard version, adjustable force or dual power supply.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

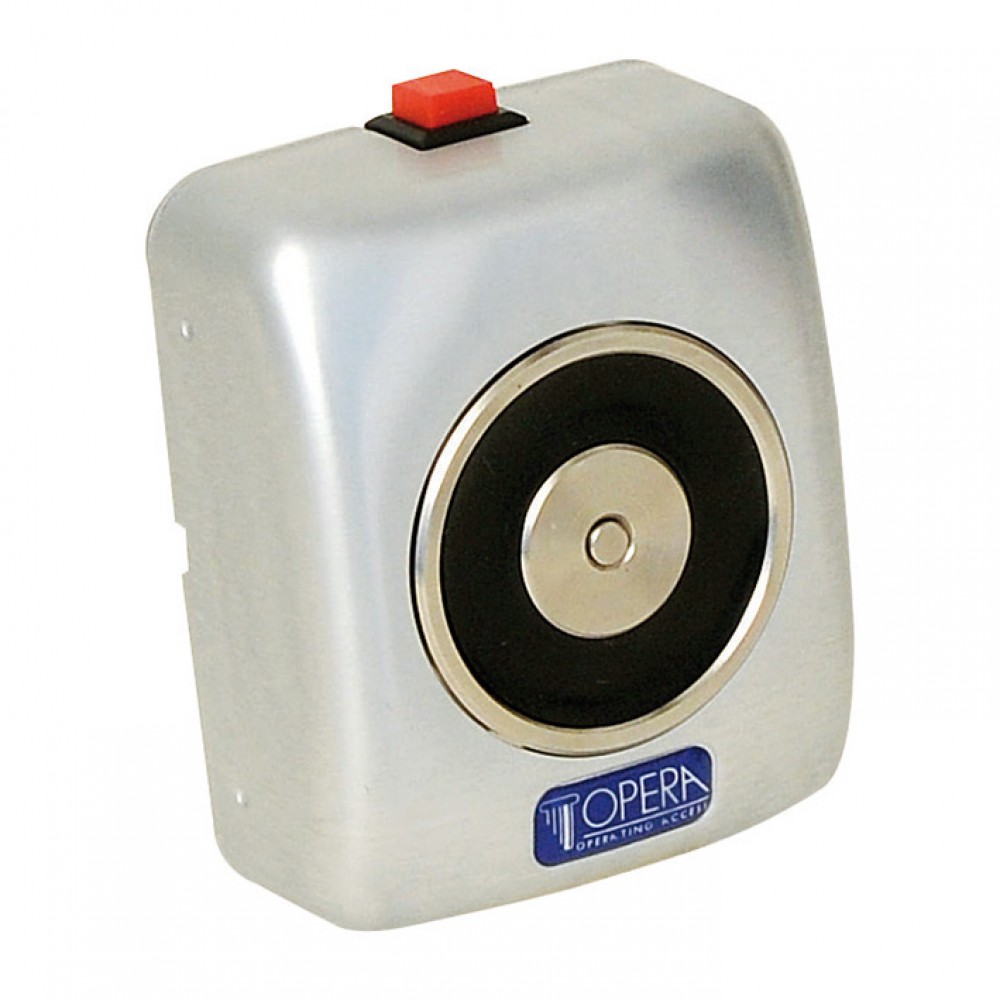

Opera 19002 Holding Electromagnet - Made of Aluminum and with Release Button

Holding electromagnet for swing fire doors, Opera code 19002.

The holding electromagnet for swing fire doors with Opera code 19002 is an essential device to guarantee safety in the event of fire.

It is designed to keep fire doors open under normal conditions and allow them to close automatically in an emergency, helping to contain flames and smoke.


Opera 19002 holding electromagnet version

  • With release button
  • Wall fixing

By choice
  • Standard : as description below
  • Adjustable force : from 10-50 kg (prevents the magnet from detaching from the wall after repeated misuse)
  • Dual power supply : automatic selection 24/48 Vdc (useful for the French market)


Technical characteristics of the Opera 19002 holding electromagnet

  • Silver anodized aluminum body with galvanized steel base
  • Nickel-plated electromagnet block
  • Power supply: 24 Vdc - Current absorbed: 70 mA
  • Fixed traction force: > 55 Kg
  • Anti-residual magnetism pin on the electromagnet body
  • Connection connector with anti-noise varistor

Opera 19002 Holding Electromagnet

Compliance: UNI EN 1155.

On request
Contact us to add variations:
  • 12 Vdc power supply
  • 12 Vac power supply
  • 24 Vac power supply
  • 48 Vdc power supply
  • Reduced strength 20 kg
  • Status sensor

IMPORTANT
Supplied without backplate.

The counterplate can be purchased on our website. Choose between:

- Fixed strike plate (Art. 01800Z Opera)
- Articulated strike plate (Art. 01805Z Opera).

Fire Control Opera Series


Opera holding electromagnet - Made in Italy

The Opera holding electromagnet is a high quality device designed and produced in Italy, mainly intended for use on swing fire doors. These electromagnets are known for their reliability, robustness and compliance with fire safety standards.

Designed and made in Italy, the Opera holding electromagnet combines traditional craftsmanship with modern technologies, guaranteeing a high quality product.

opera operating access

made in Italy
