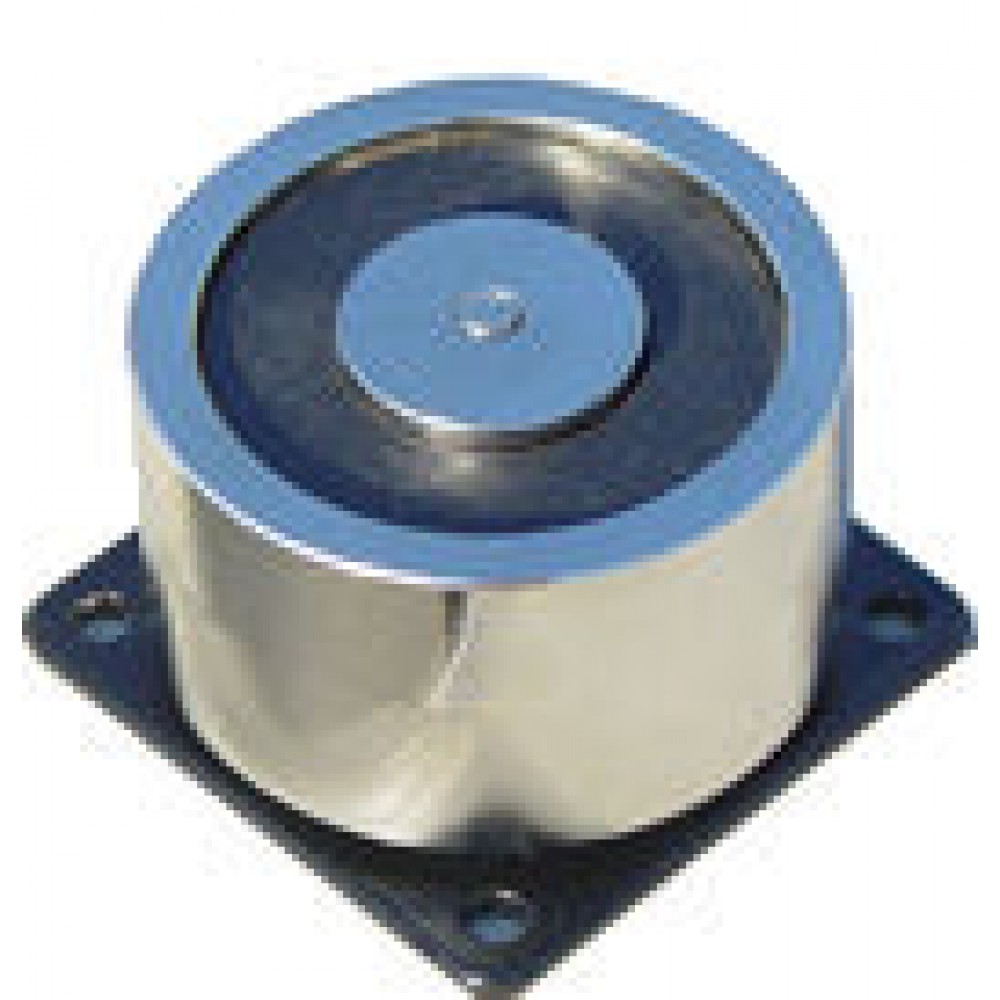

Holding electromagnet Opera 01830 - 140 Kg - Without strike plate - for swing or sliding fire doors
Holding electromagnet 140 kg without counterplate for fire doors with swing or sliding doors with counterweights, code
01830 Opera .
A holding electromagnet is an electromechanical device used to
keep doors, in particular fire doors, open under normal conditions
and allow their automatic closing in the event of an emergency (for example during a fire).
Here's how it works: the electromagnet generates a magnetic field when electrically powered, which attracts a metal plate (backplate) mounted on the door, keeping it open. In the event of a fire alarm, the system cuts off power to the electromagnet, allowing the door to close automatically thanks to the force of gravity or return springs.
Technical characteristics of electromagnet 01830 Opera
- Electromagnet body with fixing base
- Nickel-plated electromagnet block
- Fixing base dimensions: mm. 65 x 65 x 3
- Electromagnet dimensions: diameter mm. 70 x height mm. 47
- Power supply: 24 Vdc - Current absorbed: 70 mA
- Traction force: > 140 kg.
- Residual anti-magnetism spring on the electromagnet body
On request
Contact us to add variations:
- 24 Vac power supply
- Lifetime connector
IMPORTANT
Supplied without backplate.
The counterplate can be purchased on our website. Choose between:
- Fixed strike plate (Art. 01810Z Opera)
- Articulated strike plate (Art. 01815Z Opera).
