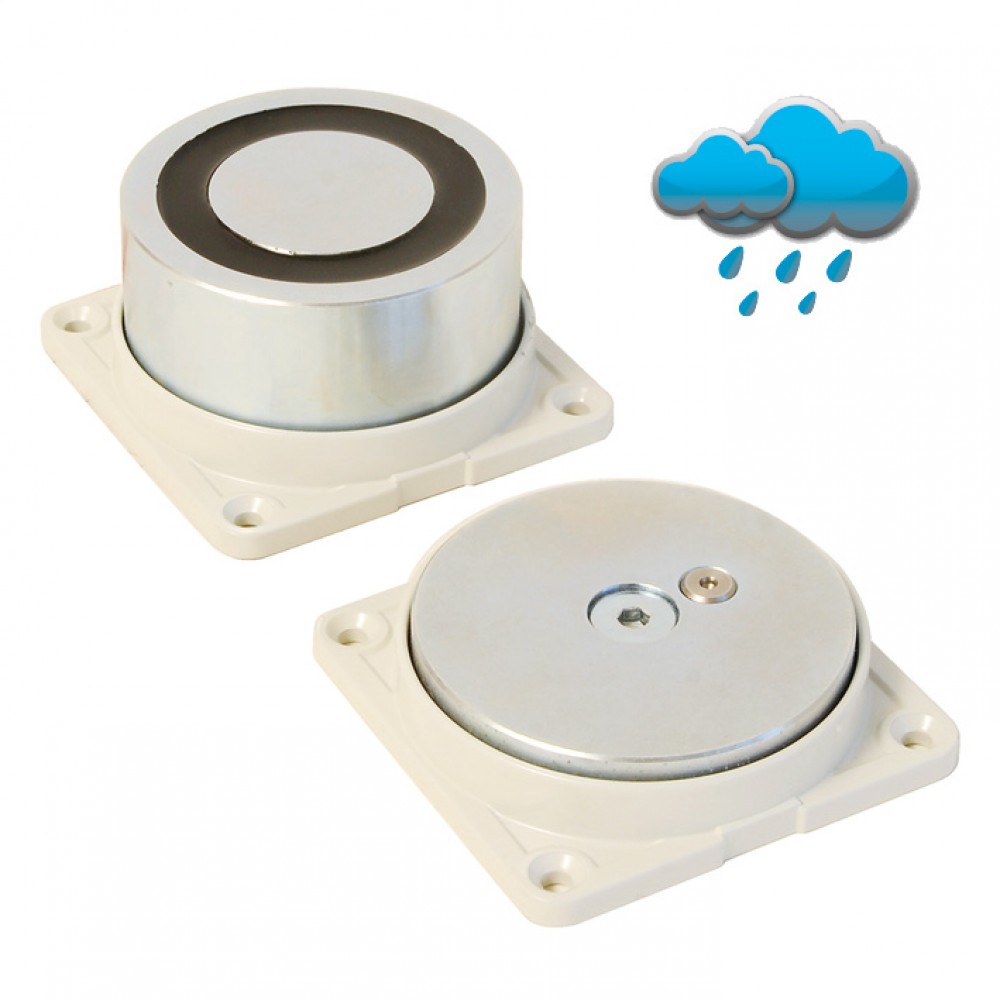

Holding Electromagnet 180 Kg - for External Fire Doors - 17003A Opera
Holding electromagnet for swing or sliding fire doors with counterweights. Version resistant to rain and other atmospheric agents.
Holding Electromagnet 180 Kg - Technical Characteristics
- Electromagnet base and counterplate in painted aluminium
- Electromagnet block with resin coil
- Dimensions of magnet bases and counterplate: mm. 90x90x6
- Magnet dimensions: diameter mm. 80 x h. 47
- Counterplate dimensions: diameter mm. 80 x height mm. 22
- Power supply: 24 Vdc - Absorbed current: 250 mA
- Traction force: 180 Kg.
- Residual anti-magnetism pin on backplate
- Supplied with fixed counterplate
On request
Contact us to add variants:
Fire Control Series Opera
- Holding electromagnets for fire doors
- Regulators for sliding fire doors
- Hydraulic shock absorbers
- Single-zone fire alarm control panels
- Smoke and heat detectors
