Composition of Omec panic bar - Reversible for doors with two leaves and three closing points
Omec panic bar composition, including what is needed to install it on a two-leaf door with three locking points.
The individual items of the
Omec panic bar composition can also be purchased separately in the section dedicated to
panic bars .

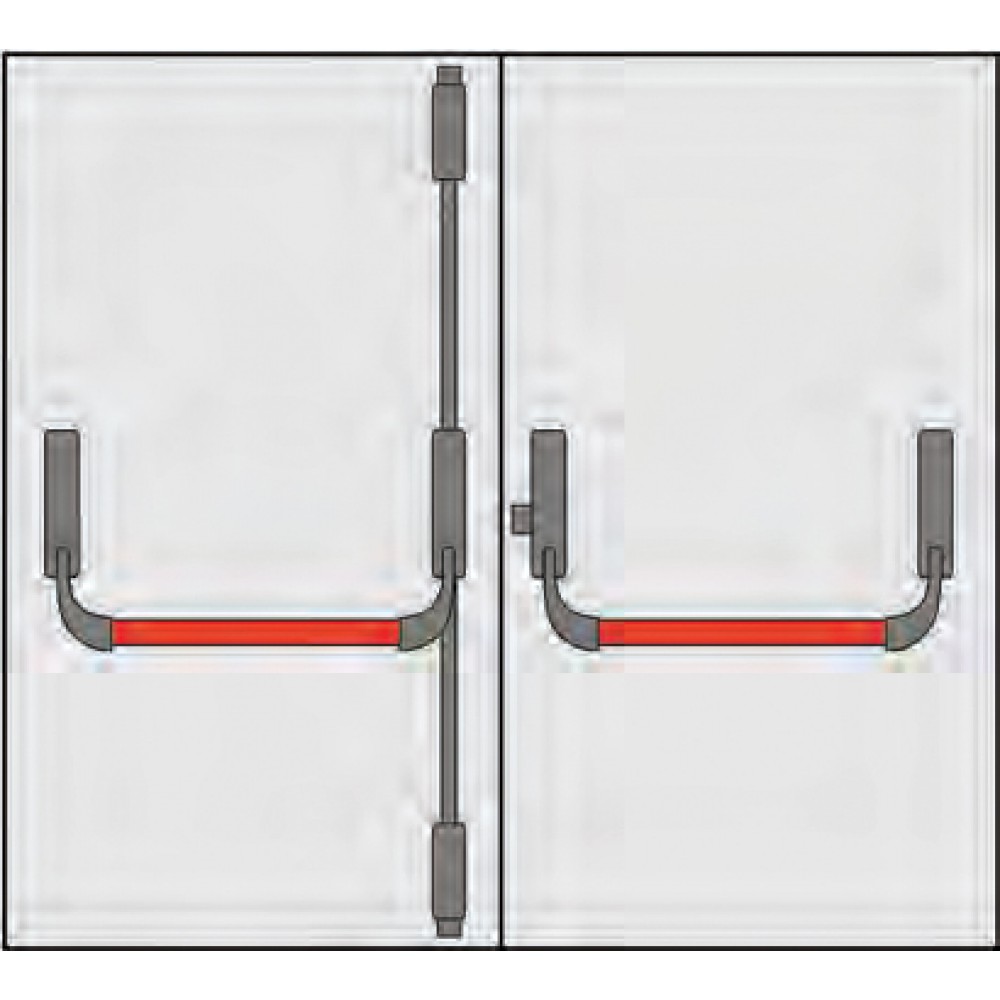

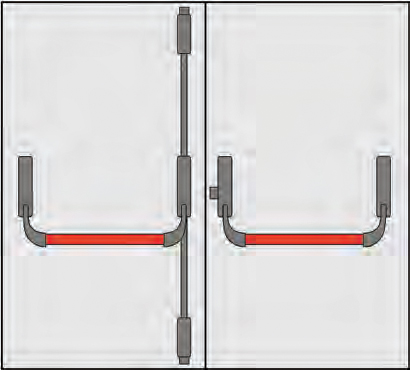

Omec items included Panic exit device composition (see figure):
| Art. |
First name |
Amount |
Characteristics |
| 6213 |
Triple (modular) Reversible |
2 pieces |
Galvanized steel boxes - Covers in painted aluminum - Levers in special painted alloy - Latchbolt in special nickel-plated alloy - Springs in stainless steel |
| 6005 AR |
Horizontal Red Bar (RED RAL 3020) |
2 pieces |
L 1130, Painted Steel |
| 6040 |
High/Low Diverter Kit (Black RAL 9005) |
1 piece |
Galvanized steel boxes - Lids in painted aluminum - Latches in special nickel-plated alloy - Springs in stainless steel - Rods in galvanized steel - Rod cover in painted aluminum |
TECHNICAL SHEET Art.6213 - triple modular reversible:
- CONSTRUCTION FEATURES: Galvanized steel boxes - Painted aluminum lids - Painted special alloy levers - Special nickel-plated alloy latch - Stainless steel springs.
- OPERATION: Latch bolt controlled by the horizontal bar or by external commands.
- SUPPLIED PARTS: Lateral counterplate, nylon plugs, fixing screws, assembly instructions, drilling templates.
TECHNICAL DATA SHEET Art.6005 AR - red horizontal bar:
- MATERIAL: Painted steel.
- SUPPLIED PARTS: Nylon caps.
TECHNICAL SHEET Art.6040 - diverter kit:
- CONSTRUCTION FEATURES: Galvanized steel boxes - Painted aluminum lids - Special nickel-plated alloy latches - Stainless steel springs - Galvanized steel rods - Painted aluminum rod cover.
- APPLICATION: Triple panic bars.
- SUPPLIED PARTS: Side counterplate, floor counterplate, screws and fixing accessories.
Certifications panic bars for sale online
NOTE: By clicking on "Documents" (above the data sheet of this product) you can download the PDF on the
Certifications of Panic Exit Devices .
