Glass Sliding Door Kit MiniSlide SbyC System
MiniSlide is the ideal
glass sliding system for interiors, residentials and office partitions installations.

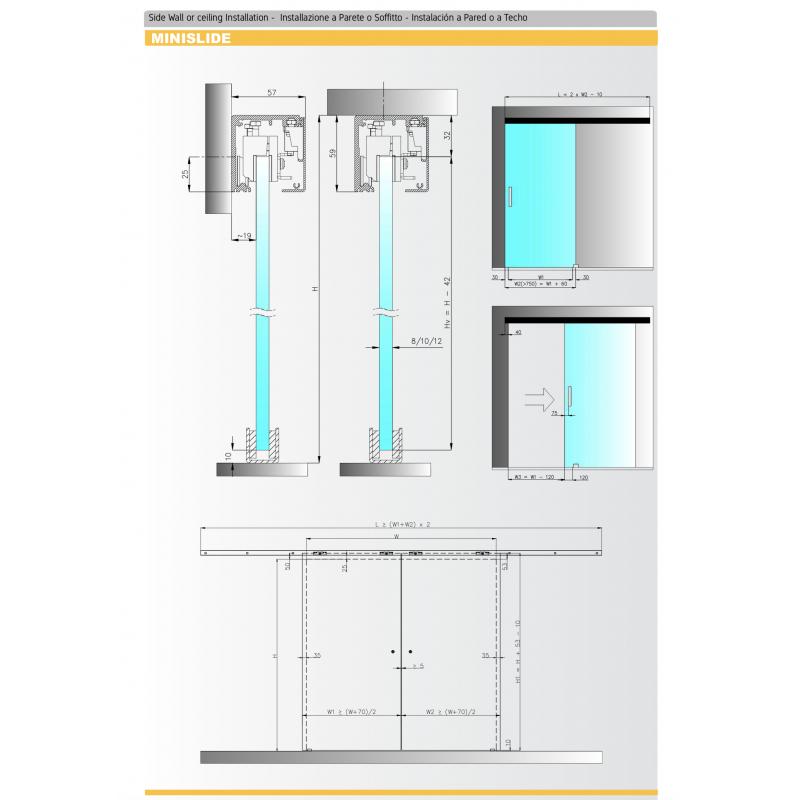

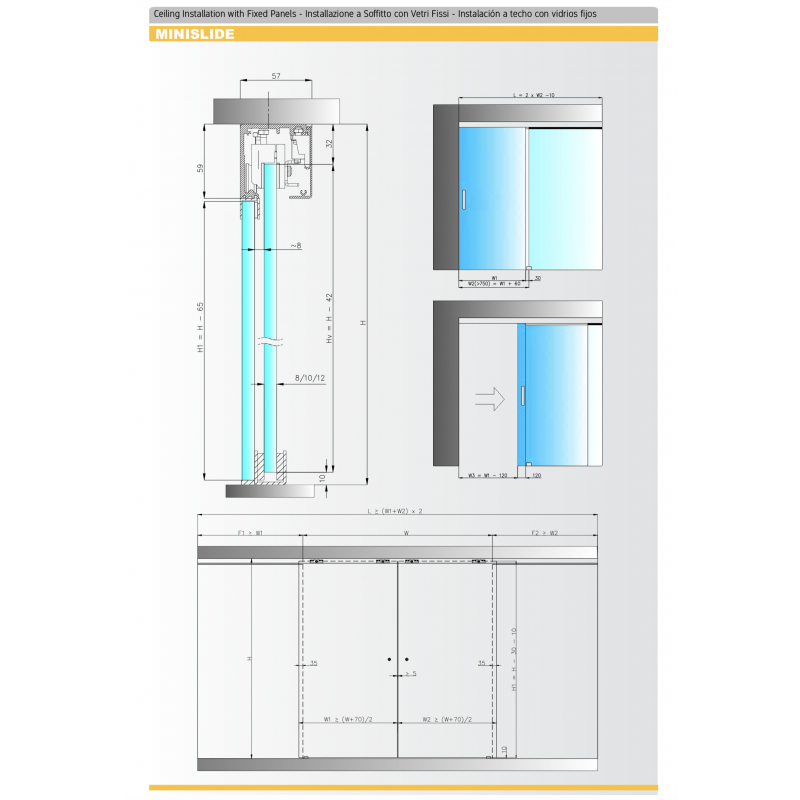

It can be installed either against the side wall or to the ceiling and onto the glass.
Min Door Width: 750mm.
Max Door Width: 1500mm.
Max Door Weight: 80Kg.
The MiniSlide SbyC sliding kit includes:
- sliding guide L = 2mt including side caps in the finish of your choice;
- 2 trolleys;
- 2 stoppers;
- double soft close (one in opening and one in closing);
- 1 floor guide.
The kit is suitable for glass with a thickness of 8-10-12 mm and is free of machining.
Technical features of the MiniSlide SbyC sliding system:
- The glass door slides very close to the side wall or fixed panel.
- It is suitable for 8, 10, or 12mm thick glass, for doors up to 1.5m wide.
- The minimum width of the glass door is 750mm.
- The maximum weight of the glass door is 80kg.
- The clamps do not require any processing in the glass. The height adjustment is 3.5mm. They have the anti-derailing device.
- The sliding door can easily be equipped with a single or double soft-close.
The SbyC MiniSlide Sliding Kit available in three standard finishes:
- Natural anodized aluminum (611);
- Anodized aluminum similar to stainless steel (680);
- Black anodized aluminum (620).
SbyC sliding systems: Made in Italy quality
Discover the simplicity of the SbyC (SpeedybyCasma) kits for sliding systems, synonymous with Made in Italy door closers since 1942.
