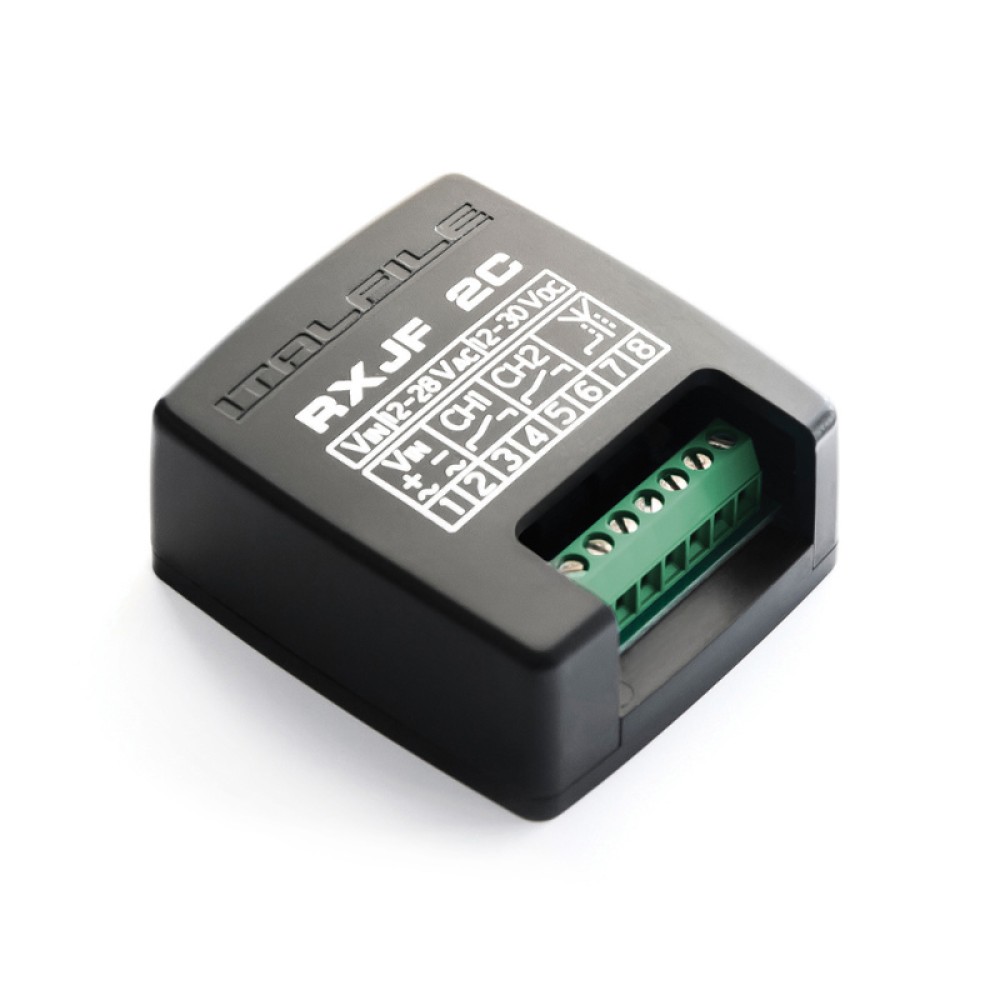

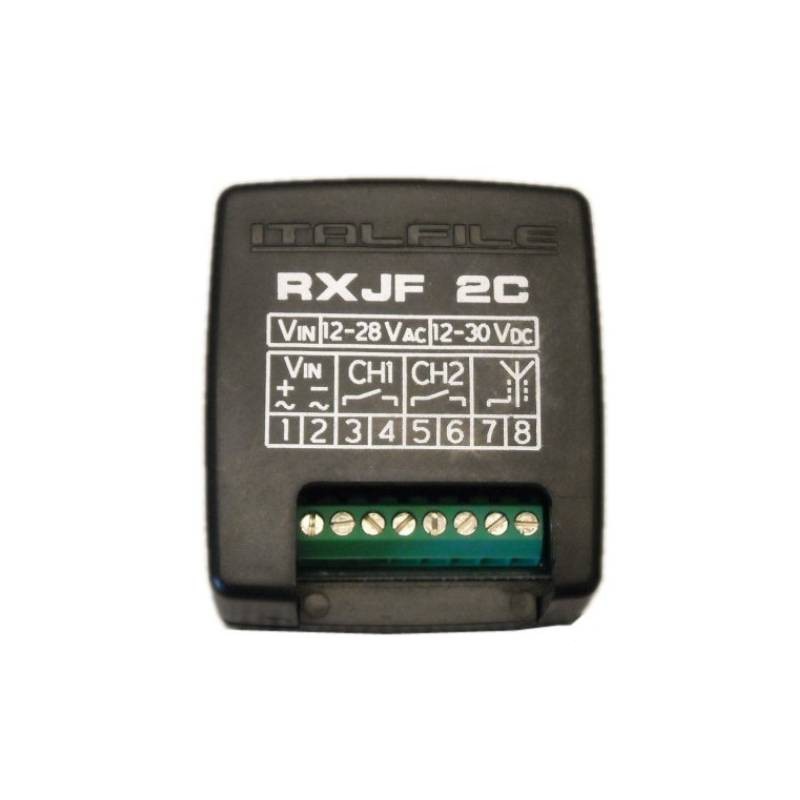

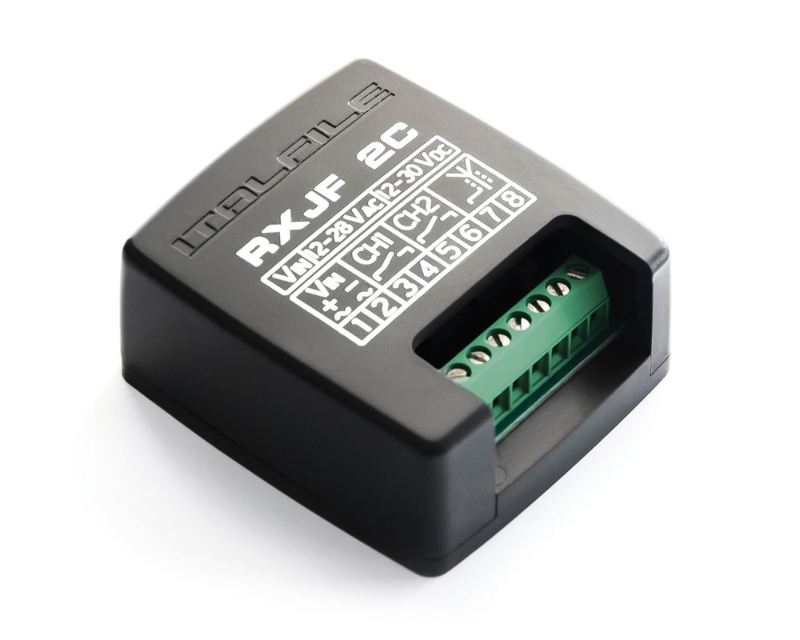

Fixed Code Radio Receiver RXJF Italfile 433.92 MHz
Italfile RXJF fixed code radio receiver with 433.92 MHz frequency: it can be combined with the
Jane F remote control and all HT12 code radio controls.
It can be used
for remote controls of automations, switching on lights, shutters and curtains and equipped with a single button for configuring and programming the channels.
Features fixed code receiver for Italfile remote controls
The Italfile RX JF2C radio receiver is a device with
two relay output channels , which works at the frequency of
433.92 Mhz . It uses a self-learning coding system and can only be programmed with fixed code remote controls.
The dedicated radio card is compatible with Italfile Jane F, Jane V (when configured to operate at 433.92 Mhz) and Prime F remote controls. Wiring is done via terminals, and the card is housed in a plastic container for internal use.
The Italfile receiver can be powered by alternating or direct current at 12 or 24 volts.
RXJF receiver datasheet Italfile
- Frequency: 433.92Mhz;
- Number of channels: 2;
- Coding type: in self-learning;
- Voltage: 12/24 volts ac-dc;
- Instruction manual: supplied with the radio board;

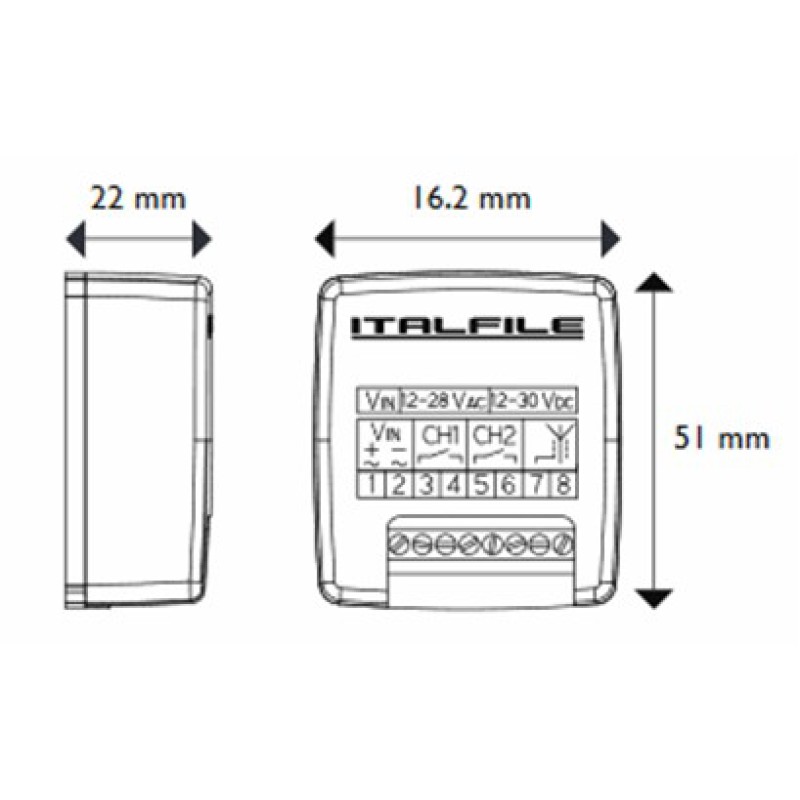

- Dimensions: H51 x W16.2 x D22mm.
Frequently asked questions about the Fixed Code Radio Receiver - RXJF Italfile
- How does the self-learning coding of the Italfile RX JF2C radio receiver work? The self-learning coding of the Italfile RX JF2C radio receiver allows fixed code remote controls to be easily programmed, without the need for a complicated programming process. The self-learning system allows the receiver to memorize the remote control code automatically.
- Which remote controls are compatible with the Italfile RX JF2C radio receiver? The Italfile RX JF2C radio receiver is compatible with Italfile Jane F, Italfile Jane V (when programmed at 433.92 Mhz) and Italfile Prime F remote controls.
- How many relay outputs does the Italfile RX JF2C radio receiver have? The Italfile RX JF2C radio receiver has two relay output channels.
- What is the operating frequency of the Italfile RX JF2C radio receiver? The Italfile RX JF2C radio receiver works at the frequency of 433.92 Mhz.
- What are the power options for Italfile RX JF2C radio receiver? The Italfile RX JF2C radio receiver can be powered by alternating or direct current at 12 or 24 volts.
