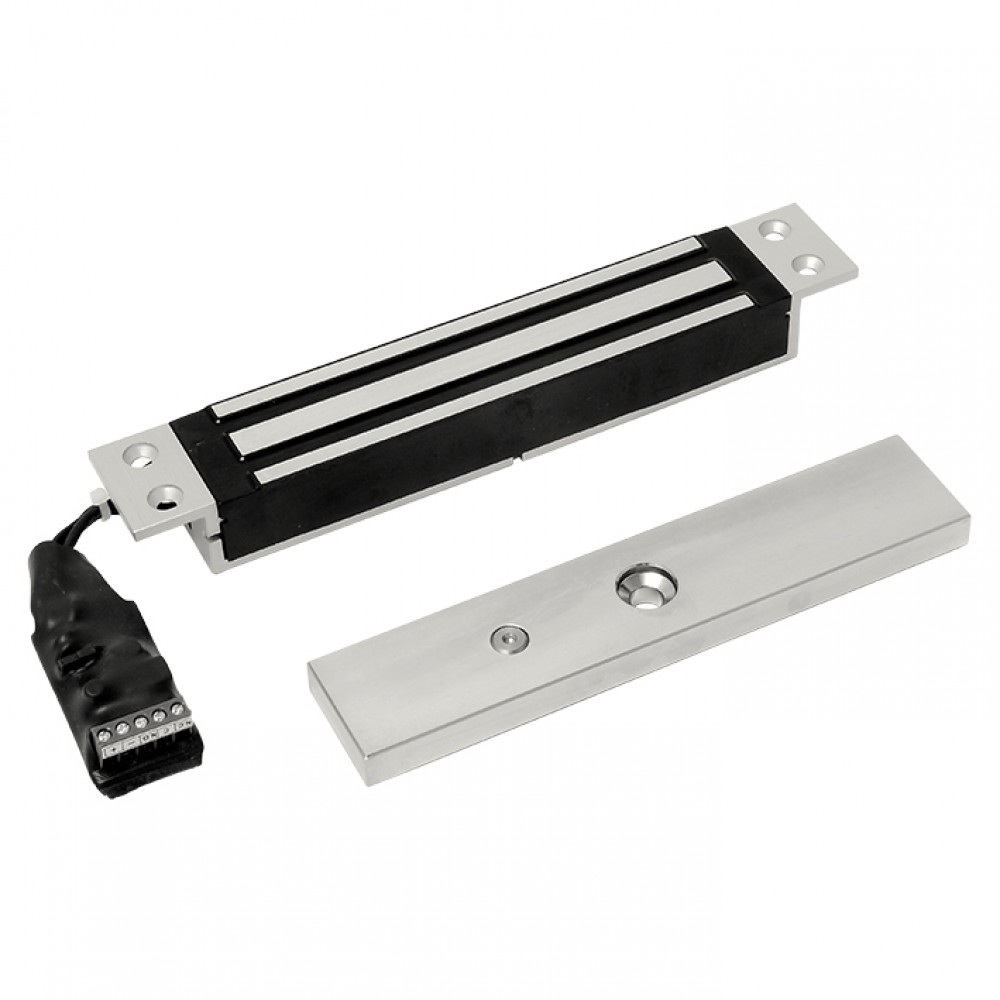

Electromagnetic Lock Mini 300 Kg with Sensor 13500M Opera Safety Series

Opera
Brands: Opera
Code: 13500M
-20%
€ 174,72 € 218,40
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +
Electromagnetic Lock Mini 300Kg in Anodized Aluminium with Sensor 13500M Opera Safety Series

Use
Security locking system for sliding doors

Version
For mortice fixing​
With state sensor (to verify locked/unlocked door)

Technical info
Fixing bracket in silver anodized aluminium
Dimensions (mm): 227 x 38 x 27
Armature plate with residual anti-magnetism pin: (mm) 185 x 37 x 12
Operating voltage: 12/24 Vdc (useful for french market)
Current: 500 mA @ 12 V / 250 mA @ 24 V
State sensor with Hall effect / two coloured LED Red - Green / Relay C. - N.O. - N.C.
Holding force: up to 300 Kg.

Package
Electromagnet, armature plate and accessories for assembly

STORYTELLING: The Blacksmith of Modena
Why so many condominiums in Modena have an electromagnet? In the '60s there was a blacksmith in Modena who wanted to improve the closing of the condominiums doors. Many cytizens in fact were tired about high maintenance costs. One day the blacksmith came in with a magnet that would solve this annoying problem. Word of mouth did the rest and nowadays Modena mantains this record, of course, no longer with simple magnets, but with modern electromagnets.

STORYTELLING Il Fabbro di Modena

Safety Series Opera
Security electromagnets
Ideal for emergency exits and condominium entry doors
Silent and resistant
Holding force from 150 to 1500 kg
Can be applied on pre-existing doors
