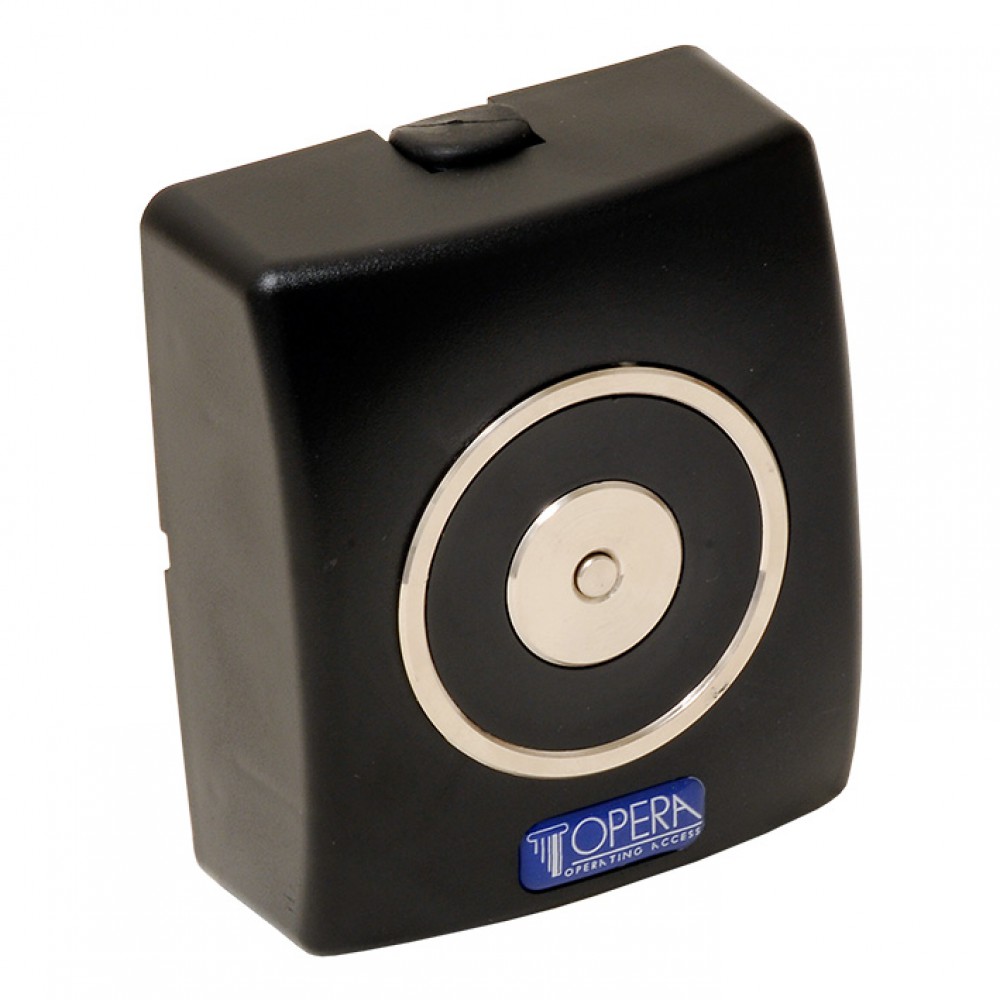

Hold Open Electromagnet Black without Push Button Release 19000 Opera
Use
Door holding electromagnet for swing fire doors
Version
Without push button release
Fixing on wall
Disponible choices
Standard: as the description below
Holding force adjustable: from 10-50 Kg (prevents the magnet from coming off the wall after repeated bad use)
Dual voltage: 24/48 Vdc (useful for French Market)
Holding force adjustable + Dual voltage
Technical info
Body in ABS with galvanized steel base
Nickel plated magnet block
Operating voltage: 24 Vdc - Absorbed current: 70 mA
Fixed Holding force: > 55 Kg.
Residual anti-magnetism pin on the electromagnet body
Connector with anti-disturb varistor
Compliance: EN 1155
On demand
Contact us to add variants:
- 12 Vdc power
- 12 Vac power
- 24 Vac power
- 48 Vdc power
- Reduced holding force 20 Kg
- Status sensor
IMPORTANT
Provided without armature plate.
Buy the armature plate separately in our website. Choose:
- Fixed Armature Plate (Art. 01800Z Opera)
- Swinging Armature (Art. 01805Z Opera).
