The Opera 28002 electric lock with knob is an advanced security solution designed specifically for use on gates and doors. This device combines robustness, reliability and ease of use.
You have chosen:
Are you looking for an Opera product not present on our site? Download the Opera catalog and find the code.
Then contact us and ask for a quote.

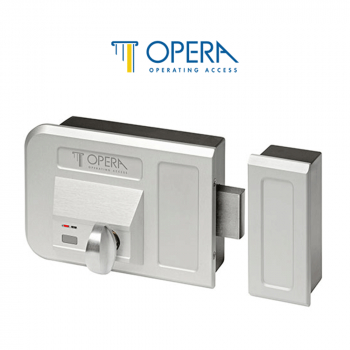

Electric lock with knob - to be applied on sight - for gates and doors - 28002 Opera
Safety electric lock to be applied to pedestrian gates even exposed to bad weather and wooden condominium doors.
The Opera 28002 electric lock with knob is a versatile and robust security solution, perfect for gates and doors in residential and commercial environments.
With its advanced features, including LED lighting for night visibility , it is a reliable choice for improving access security
Hand variations:
- Right
- Left
Available colours:
- Silver
- Bronze
- Black
On request (contact us to have these variations):
- Supply without cylinder (Art + SC)
- Version with remote deadbolt status relay (Art + M)
Features of the Opera 28002 electric lock with knob
Internal side opening with knob.
Version: to be applied.
Lock body and strike plate in stainless steel.
Lock cover and counterplate in anodized aluminium.
Deadbolt closed in the absence of power.
Mechanical opening from the outside with round cylinder.
Adjustable entry mm. 50 - 60 - 70.
Stainless steel deadbolt dimensions 18 x 28 mm (25 mm travel).
Anti-burglary device of the deadbolt in the closed position.
Power supply: 12/24 Vac/dc.
Current consumption 1.2 A starting, 200 mA holding.
Internal microprocessor electronic circuit.
12 Vac/dc opening command from intercom or via relay.
Hall effect sensor for the position of the door.
Re-closing after 2 sec. when the door is brought together.
Automatic reclosing timing selectable from 5 to 60 sec. if the door is not opened.
C./NO/NC output relay contact for deadbolt status indication (M version only).
Suitable for weatherproof operation, with internal heating system if the temperature drops below 5°C.
Led illumination
- Two-colour red/green LED to indicate the open/closed deadbolt status.
- LED in the lower position for night indication, blue in the closed position and white in the open position to illuminate the ground.

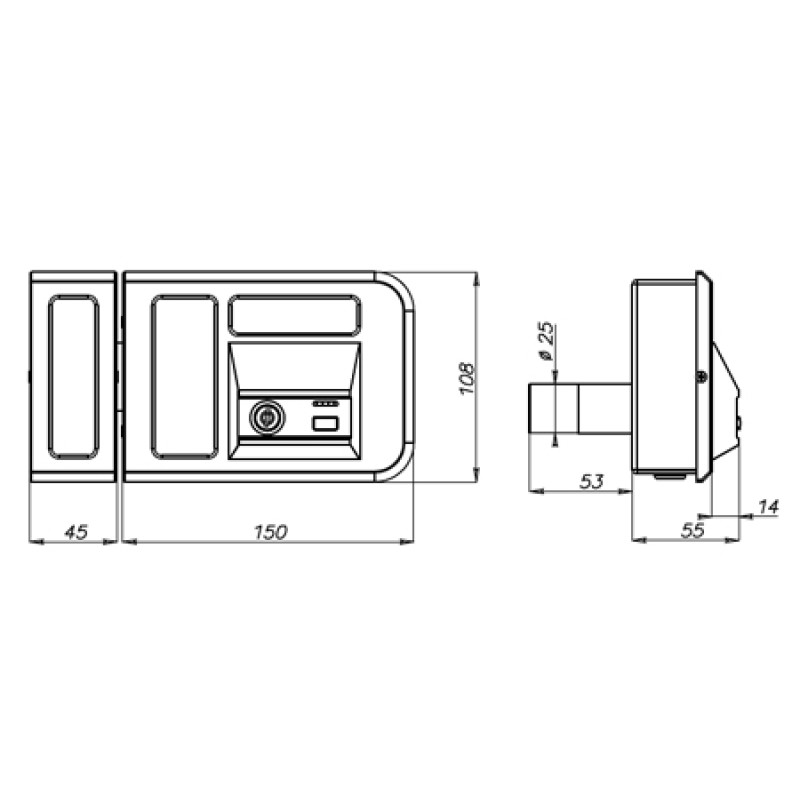

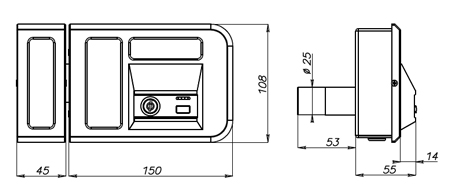

Dimensions
Insertion of round cylinder for gates
Insertion of detached cylinder for wooden doors

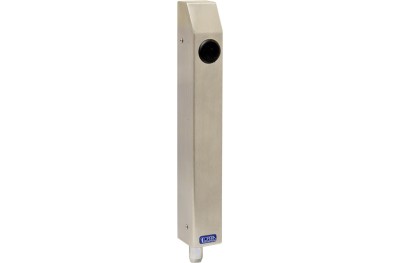

Gate Lock Opera Series
Safety electric locks for garages and automatic gates.
Anti-cut rotating deadbolt with mechanical lock on closing.
Manual operation with European cylinder.
Entirely made of stainless steel, weatherproof.
Can be operated from the gate remote control.
