Electric lock for swing doors with striking plates - 23000 Series Swing Opera
Use of electric lock for swing doors
Electric lock for swing doors ideal for operation on swing doors (
opening in both directions ). The door closes automatically when the leaf approaches by pressing the special mechanical alignment device.
Technical characteristics of the 23000 Opera electric lock
- Mechanical opening with European cylinder.
- Front and counterplate in stainless steel.
- Ambidextrous latch with mechanical lock in closed position.
- Device on the front for blocking the latch in the closed position.
- Latch dimensions: mm. 26 x 15.5 x extension mm. 13.
- Power supply: 12/24 Vac/dc.
- Absorbed current: 280 mA at 12 Vdc - 140 mA at 24 Vdc.
- Version: anti-panic (closing with power) and safety (opening with power) selectable.
- Entry: mm. 30.
- C./NO/NC contact for locked/unlocked latchbolt status.

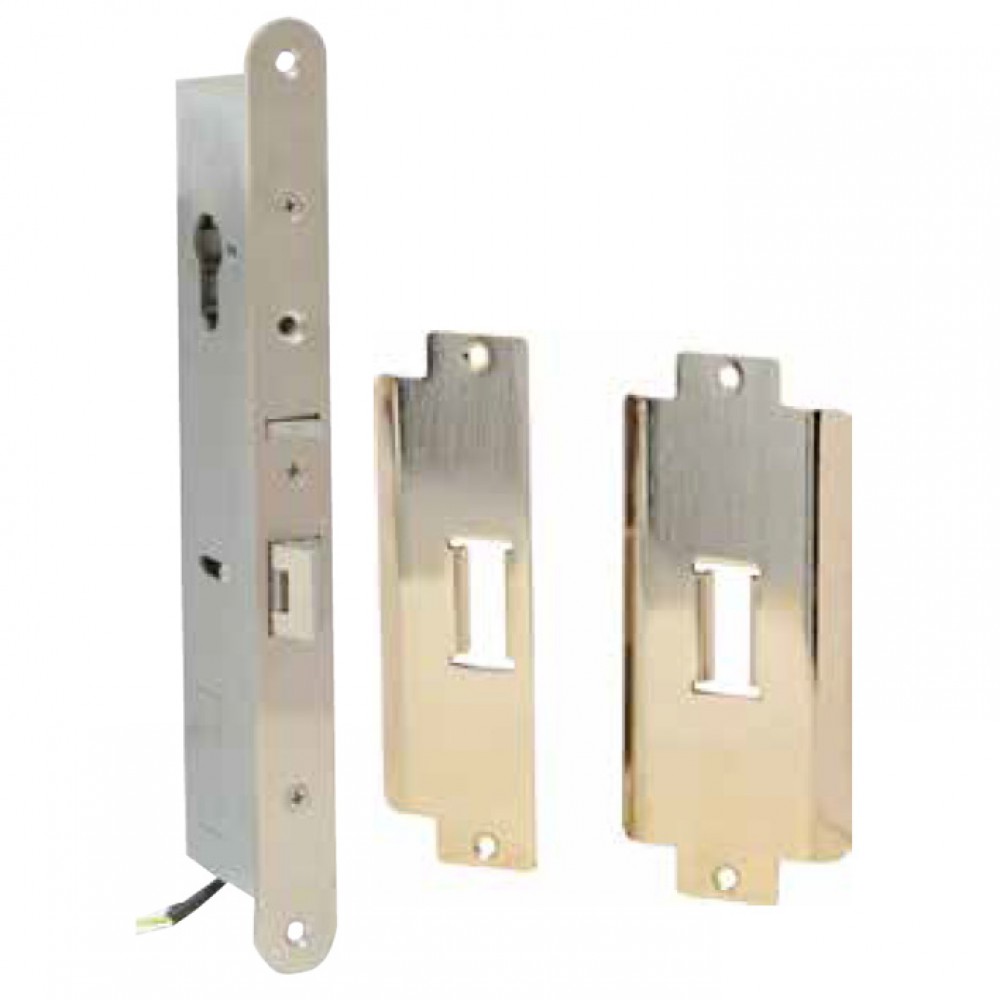

- Supplied with 2 counterplates. One for swing doors with rebate and one for swing doors.
Electric lock for swing doors - On request:
Since the opening of the electric lock is limited to the duration of the electric impulse (safety version) or to a power failure (anti-panic version), it is recommended to use the timer board art. 51500 (available on Windowo) for the lock release timing (usable only if the electric lock is powered at 12 Vdc). If it is powered at 24 Vdc, commercial timers not supplied by us must be used.
Electric lock dimensions for swing doors

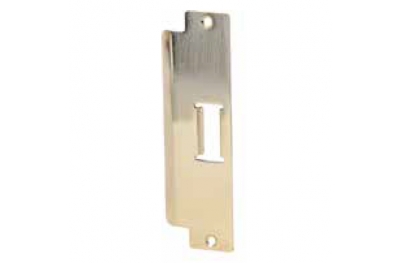

Counterplate dimensions for swing doors
Striking plate dimensions for swing doors with rebate
Application example of the electric lock for swing doors:
1 Mounting on vertical frame
2 Mounting on horizontal frame
