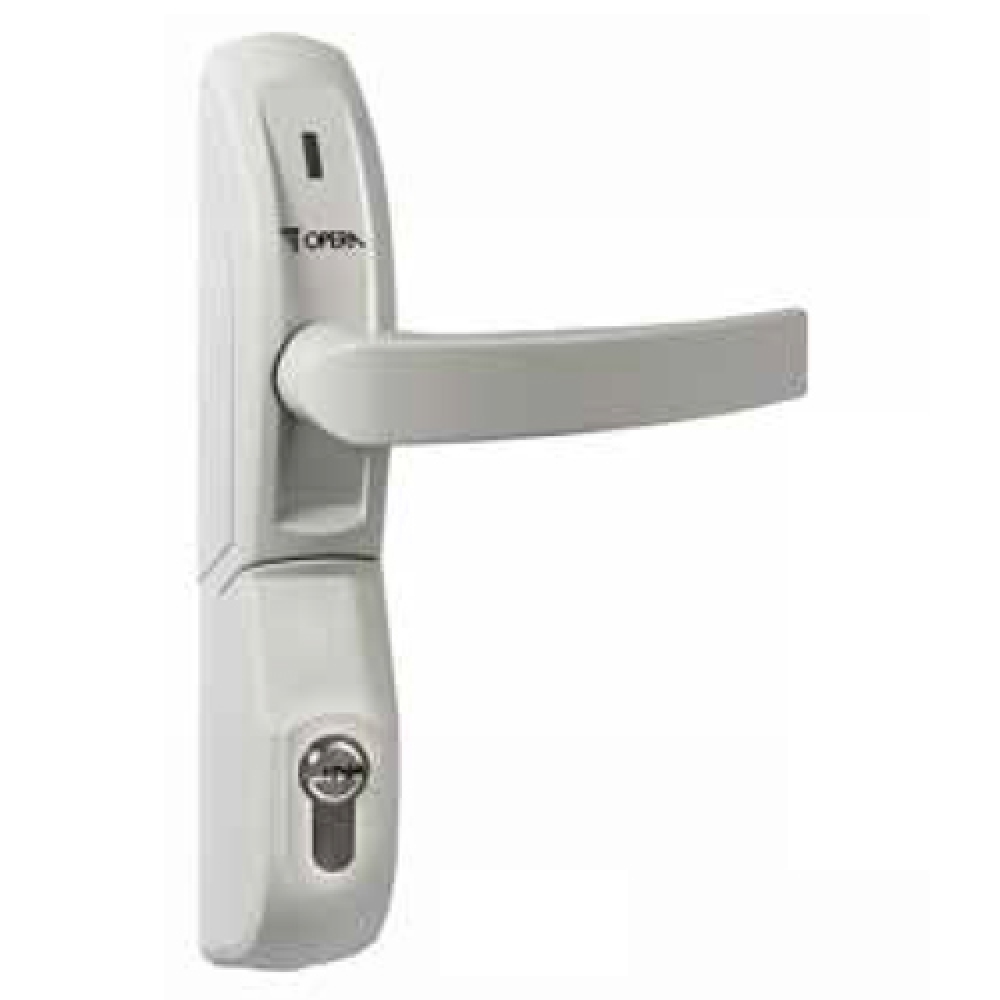

White Electric Handle for Panic Bars with External Latches Ouverture Series 40620B Opera
Use of White Electric Handle for Panic Bars
For panic exit devices to be applied with external latches. Not suitable for installation exposed to atmospheric agents.
Timer variant :
- Without timer
- With timer : allows you to adjust the closing time
Variant in case of power failure:
- Enabled version : green LED
- Disabled version : red LED
Technical characteristics of the 40620B Opera electric handle
- White finish.
- Metal body and handle.
- Internal mechanisms in casehardened steel.
- Dimensions: mm. 232 x 55 x 38 handle height mm. 84.
- Rotation of the handle frame selectable at 45° or 60° based on the type of panic bar used.
- Mechanical enabling via flat key cylinder.
- Power supply: 12/24 Vac/dc (useful for the French market).
- Current absorbed: at 12V - 700 mA inrush/500 mA maintenance at 24V - 300 mA inrush/200 mA maintenance.
- Electronic open latch.
Version without timer
Use : applicable in place of the traditional mechanical handle mounted on the outside of the door.
The handle, which is usually in neutral, can be enabled:
- By removing power (
enabled version );
- Or by providing power (
disabled version ) via a button or access control contact. Enabling is limited to the duration of the pulse.
Version with timer
Use : applicable in place of the traditional mechanical handle mounted on the outside of the door.
The handle, which is usually in neutral, can be enabled:
- By closing a NO contact from a button or access control. In this version the power supply is kept fixed.
Additional features compared to the previous version:
- Internal timer adjustable from 0-60 sec. (excludable).
- Open Collector output to be combined with an external micro relay for signaling that the handle is enabled (art. 05258 Opera available on Windowo).
- Two-color red/green LED for signaling the status of the handle enabled or disabled.
- Blue LED when the handle is disabled and white LED when the handle is enabled which illuminates the lower part of the door.
Opera Overture Series
- Electric handles for fire doors and emergency exits.
- Can be combined with all fire door locks.
- Can be installed on narrow metal profiles.
- Internal microprocessor management electronics.
- Integrated optical and acoustic signaling.
Blue/white LED for floor lighting
