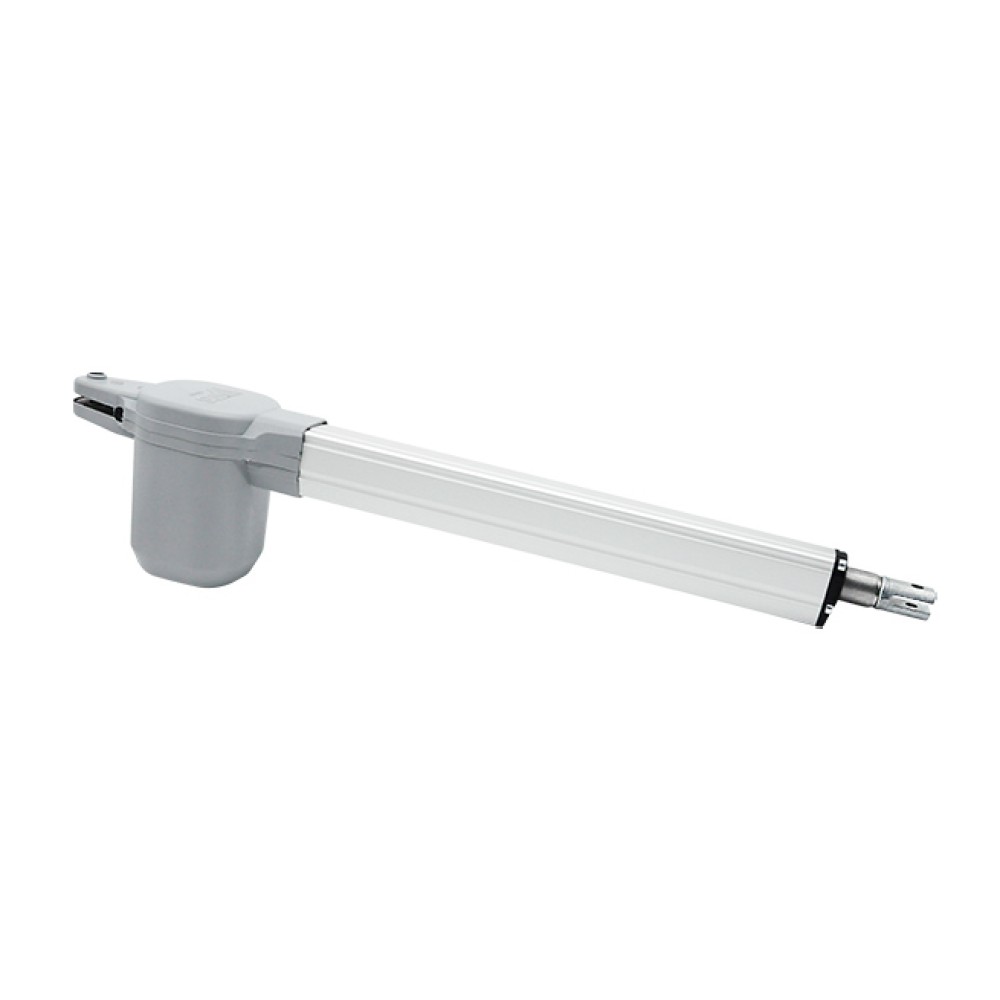

EGO VDS - Linear Electromechanical Actuator - Swing Gate Automation
EGO VDS is a
linear electromechanical operator for swing gates with a maximum leaf of 3 meters. The voltage is 230V or 24V (your choice).
The EGO VDS swing gate automation is sold online in
the motor only version or in kit with control equipment and accessories included.
In addition, the EGO VDS Automation motor has a
thrust force of 2000 N and lifts a maximum of
200 kg .
Advantages EGO VDS Electromechanical Linear Actuator
- Screw actuator in sturdy aluminum structure;

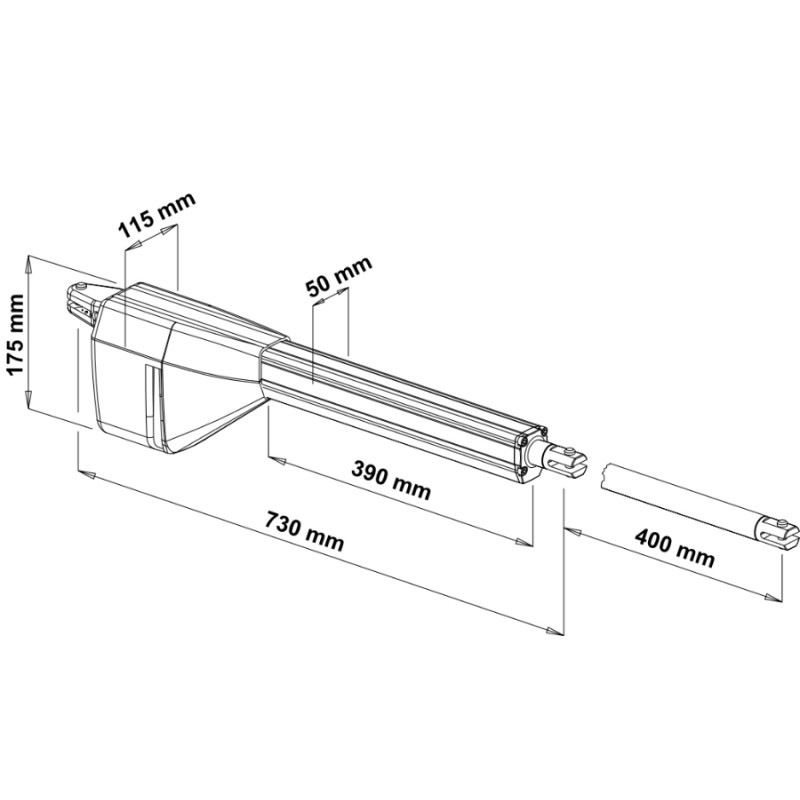

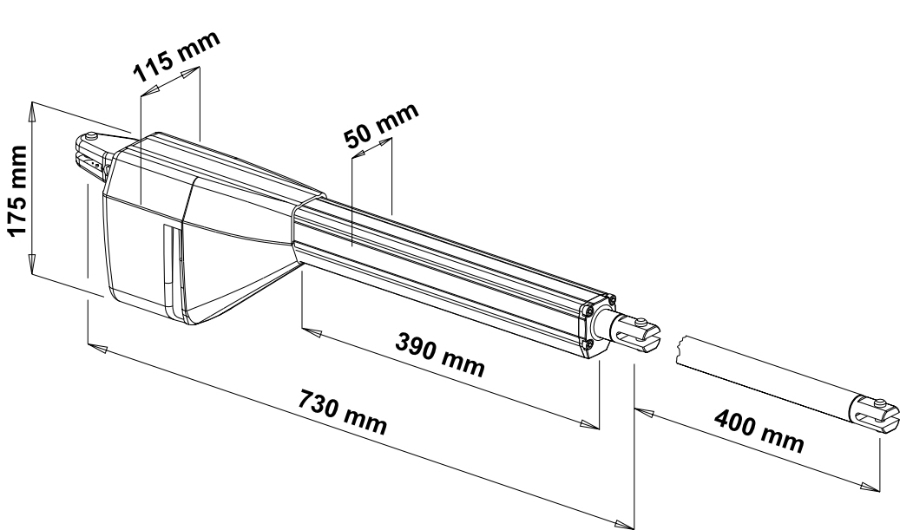

- Useful stroke MM 400 - MM 500;
- Stainless steel stem;
- Maximum silent operation;
- High Performance electric motor;
- 140 ° thermal protection;
- Manual release with key;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- 120 ° opening;
- Quick assembly with multi-position brackets and bracket covers in technopolymers;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- Power supply 230V - 24V.
In the EGO series (irreversible), when the leaf exceeds 1.80 meters, the use of an electric lock is recommended.
For better radio reception we recommend the use of an external antenna cod. 210/1.
In the presence of strong winds and cold temperatures, the performance of the actuator can be considerably reduced.
Color supplement (on request): customize your engine by indicating the RAL code on the order.

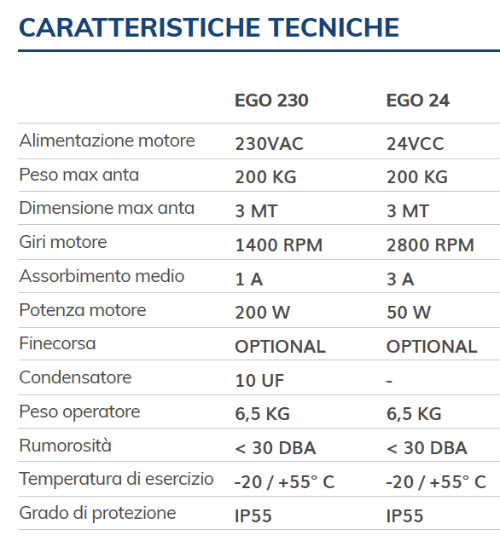

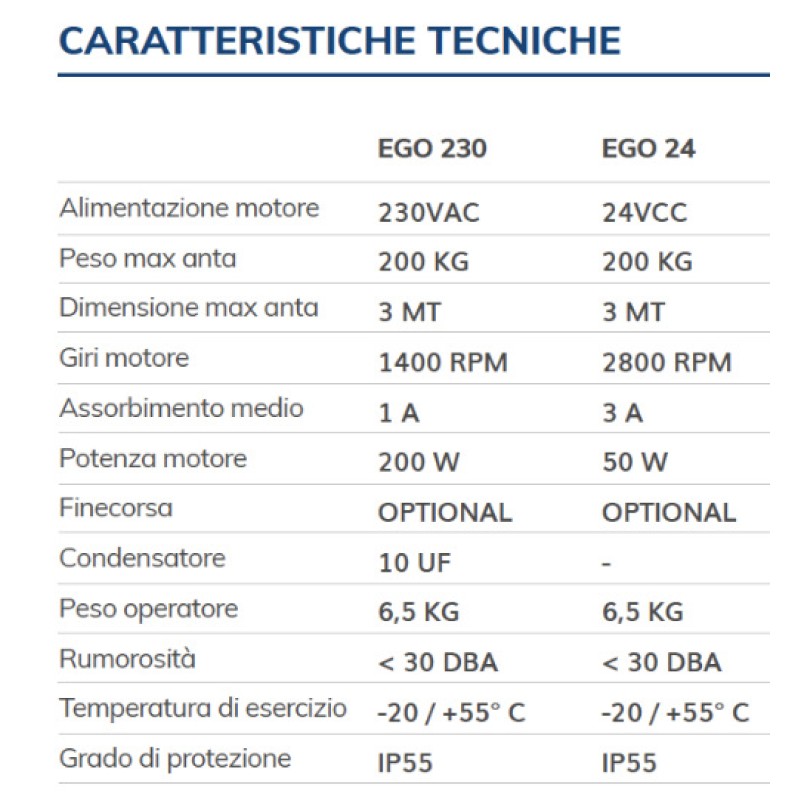

Technical features of the EGO VDS swing gate automation
- Motor power supply: 230VAC or 24V (by choice);
- Maximum leaf weight: 200 KG;
- Maximum leaf size: 3 MT;
- Engine revolutions: 1400-1800 RPM (depends on the version chosen);
- Average absorption: 1-3 A (depends on the version chosen);
- Motor power: 200-50 W (depends on the version chosen);
- Capacitor: 12.5 UF (or zero);
- Operator weight: 6,5KG;
- Noise: <30 DBA;
- Operating temperature: -20 ° / + 55 ° C;
- Degree of protection: IP55.
VDS Automations - Automation for Swing Gates
The
VDS company has been operating in the gate automation sector for over thirty years.
Each
VDS gate motor is manufactured in Italy by specialized personnel with quality raw materials.
Find the best VDS Automations gate automations on Windowo with a special offer price.
