Economical Roller Shutter Motor Kit - Low Price - Tubular 20Nm 30Nm 50Nm - AC 230V/50Hz
We offer you for sale online this
economical roller shutter motor kit -
Tubular roller shutter type 20Nm, 30Nm or 50Nm AC 230V/50Hz. With multiple horsepower options available, find the ideal engine for your specific need.
This innovative tubular motor designed for roller shutters, a convenient and solid option for automating your roller shutter. Offered in three power variants, the economical roller shutter motor adapts to any automation requirement, both in the domestic and commercial sectors, guaranteeing effectiveness and reliability.
Transform your roller shutter into an automated system without emptying your wallet. Discover the perfect
balance between quality and convenience with our economical roller shutter motor.

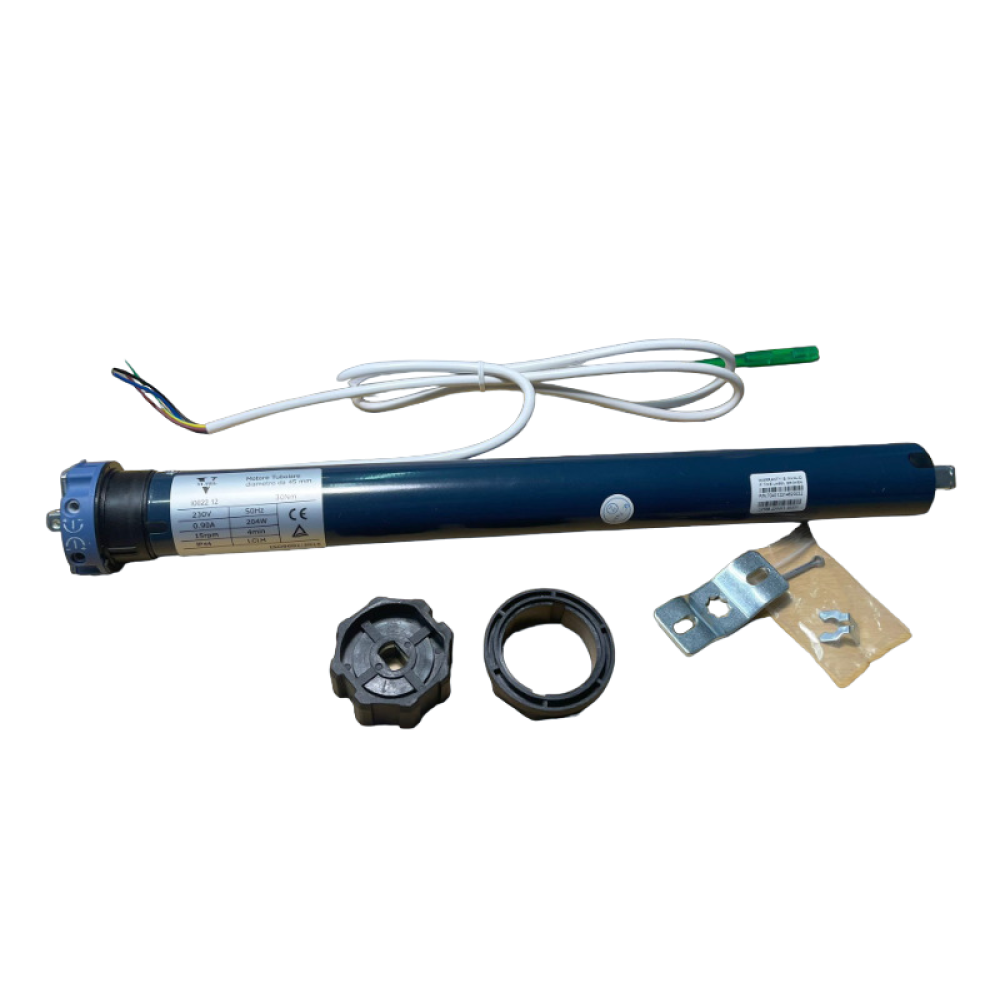

The roller shutter motor kit includes:
- electric tubular motor: used to automate the opening and closing of the shutter;
- roller shutter tube adapter: this component allows the motor to adapt to the internal diameter of the roller shutter tube;
- fixing support: used to stably mount the motor inside the box;
- stop ring: this element fits into the roller shutter tube to prevent the motor from rotating inside the tube;
- power cable: supplies the electrical energy necessary for the motor to operate.

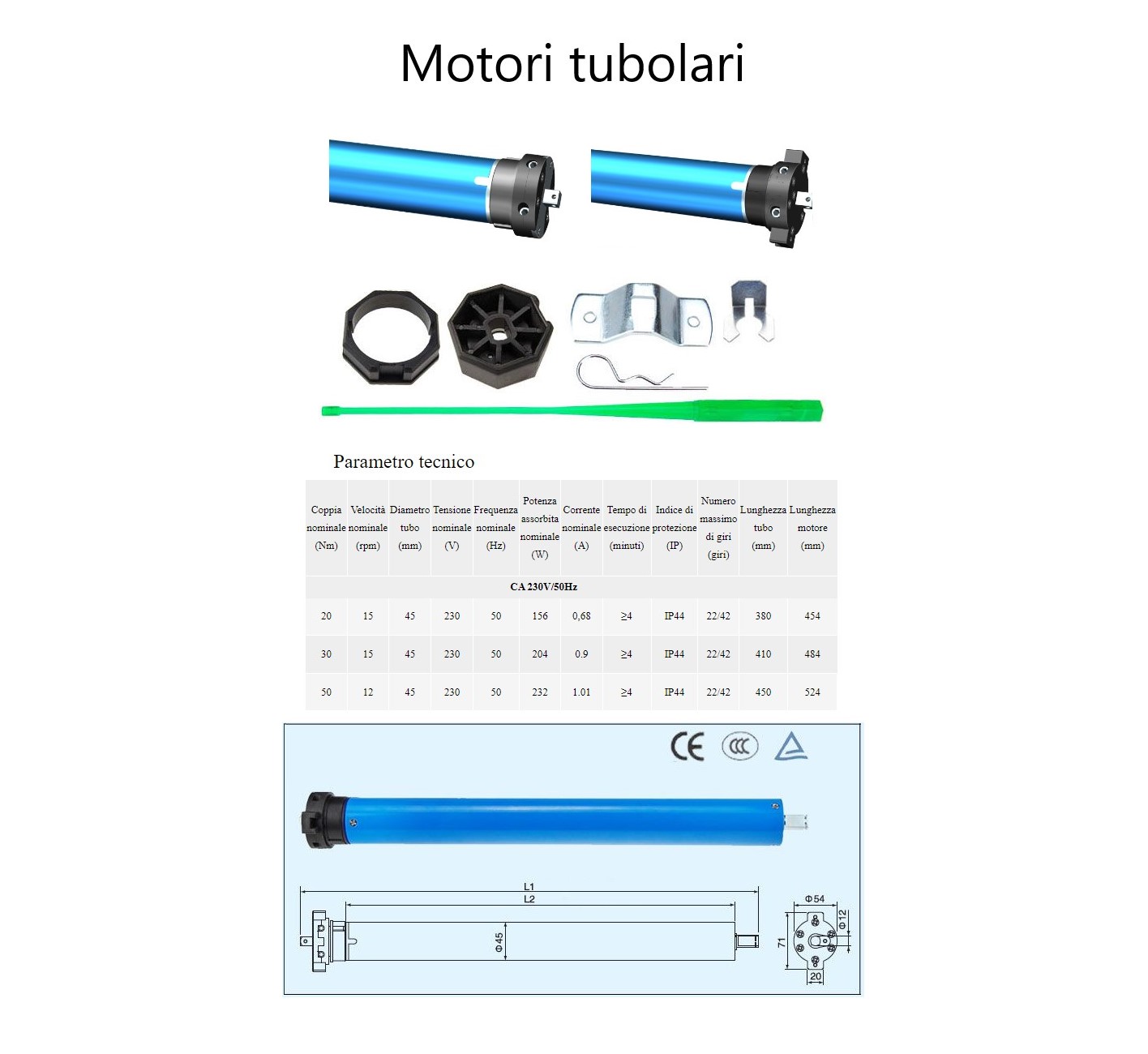

Economic roller shutter motor kit - Technical characteristics
- Nominal Torque (Nm) : available in 20Nm, 30Nm, and 50Nm to suit different sizes and weights of roller shutters.
- Speed (rpm) : 15 for the 20Nm and 30Nm model; 12 for the 50Nm model, ensuring smooth and constant movement.
- Tube Diameter (mm) : compatible with standard 45mm diameter tubes, allowing easy installation in many roller shutter systems.
- Rated Voltage (V) : 230V, ideal for domestic and commercial use.
- Nominal Frequency (Hz) : 50Hz, in line with electrical power standards.
- Power Absorption (W) : 156W for the 20Nm model, 204W for the 30Nm model, and 232W for the 50Nm model, optimizing energy consumption.
- Rated Current (A) : 0.68A for the 20Nm model, 0.9A for the 30Nm model, and 1.01A for the 50Nm model, ensuring energy efficiency.
- Run Time (minutes) : 4 minutes for all models, for safe operation and to prevent overheating.
- Protection Index (IP) : IP44, protects the motor from solid objects larger than 1mm and from water splashes.
- Number of Revolutions (revolutions) : 22/42 for all 3 models.
- Tube Length (mm) : 380mm for the 20Nm model, 410mm for the 30Nm model, and 450mm for the 50Nm model, to suit various installations.
- Motor Length (mm) : 454mm for the 20Nm model, 484mm for the 30Nm model, and 524mm for the 50Nm model, measuring the total size of the motor.
This tubular roller shutter motor is designed to offer you the
best combination of price and performance . With CE certification and safety marking, it is a reliable addition for your home or office. Buy now on Windowo to benefit from our special offers and improve the comfort of your home.
How does a roller shutter motor work?
A tubular motor for roller shutters
fits perfectly inside the roller on which the roller shutter is wound. Once positioned, it is necessary to connect to the home electrical network and proceed with manual adjustment of the limit switches. This operation allows you to completely automate the opening and closing functions of the shutters.
The
unit of measurement "Nm" stands for Newton meter and represents the torque of the motor. A higher value indicates greater motor power, which will therefore be able to lift heavier roller shutters.
Shutter motors at low prices for sale online
Discover our
range of roller shutter motors on Windowo. Choose from the most efficient and reliable models, comfortably from your sofa, and take advantage of our exclusive online offers. We offer high quality solutions at affordable prices, ensuring the best value for money. Buy now and transform your home with the convenience and safety of our roller shutter motors!
