Fixing system with dowels for hinges of the Thermoflix PosaClima shutter
THERMOFIX PosaClima with compass, system for punctual fixing of the shutter hinges

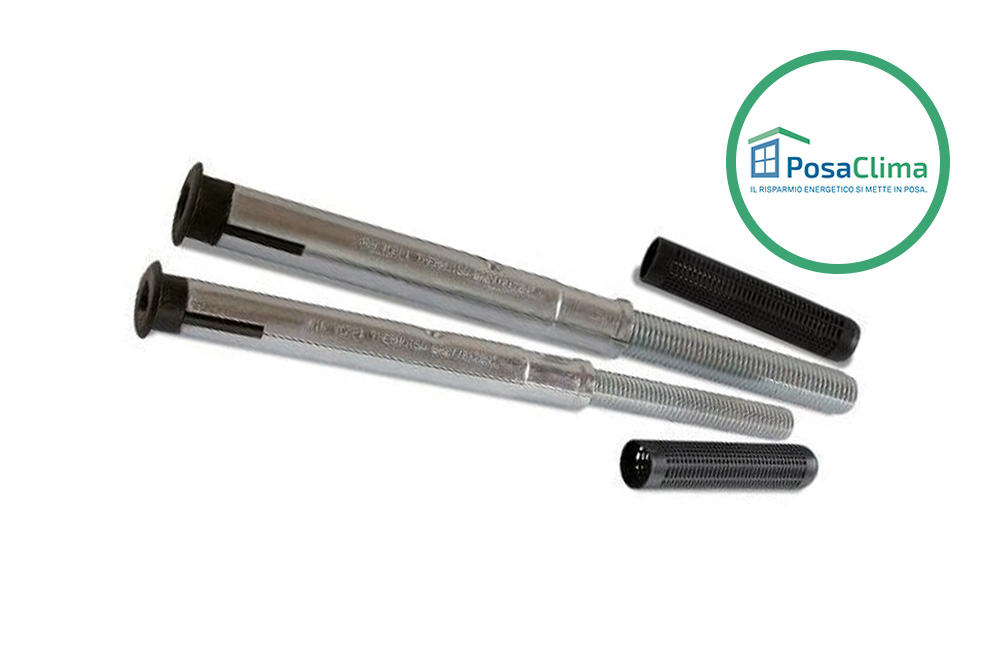

Thermoflix PosaClima is the special bolt for fixing the hinges of the punctual shutter specifically designed for the installation of the hinges on coats up to 14 cm thick (16 cm on compact masonry).
With Thermoflix PosaClima it is not necessary to build expensive counter frames for the shutter before making the insulation: with Thermofix the hinge is in fact installed after the installation of the insulation (and before the finishing plaster).
Dowels for shutter hinges: choose from the available sizes
- Thermofix 16 mm thread M8 with sleeve
- Thermofix 20 mm thread M12 with bush
The minimum order is 1 pack with 12 pieces.
Does the structural coat exist? No, but you can use these plugs to fix your shutters

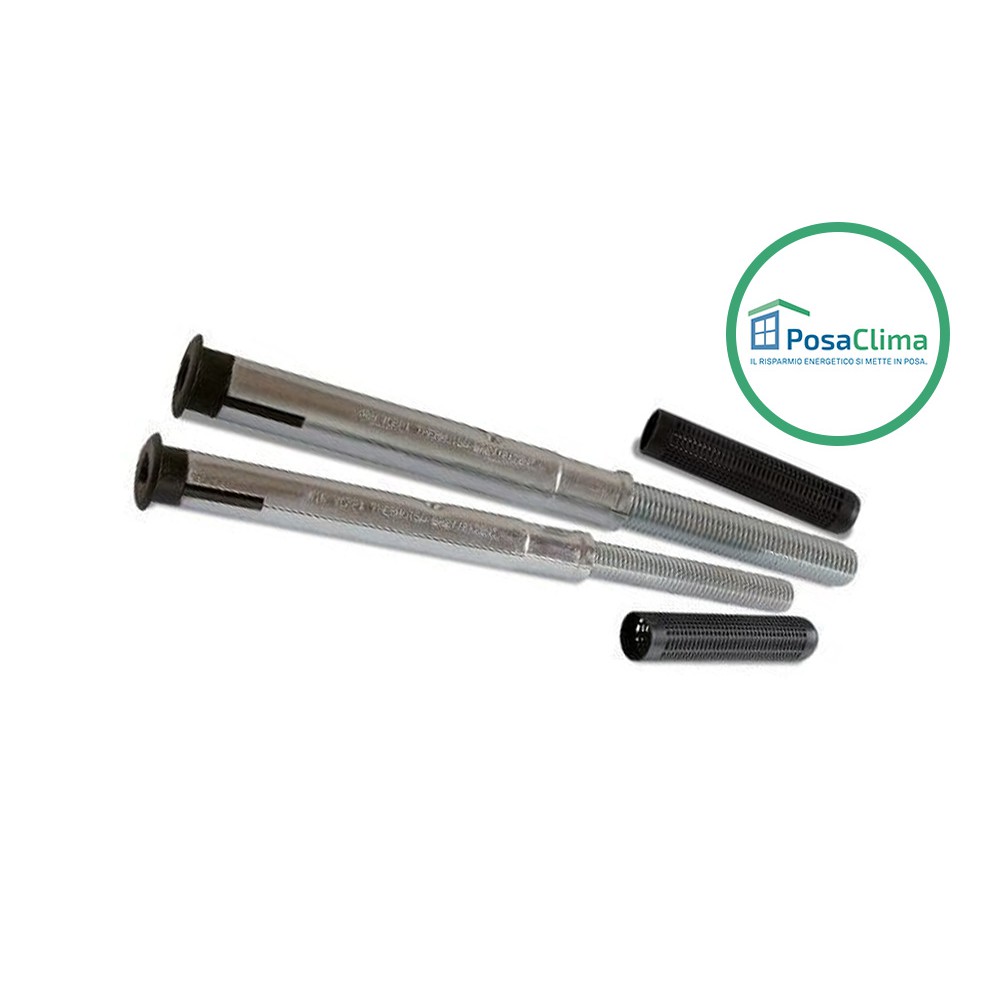

Fixing dowel for hinges and hinges Thermoflix PosaClima consisting of a supporting structure in sheet metal (2 mm thick) and threaded bar (M12 or M16 depending on the model) punched and welded to give an extraordinary load resistance (up to 165 kg per point ).
The supporting structure is coated with a special electrolytic zinc plating for corrosion protection. Inside the supporting structure there is a special polyamide sleeve designed to accommodate accessories with metric thread (M6, M8, M10 or M12 depending on the model).
The sleeve avoids direct contact with the metal structure by eliminating the thermal bridge (certified value of point thermal transmittance χ = 0.012 W / K). System specifically designed for fixing hinges and hinges for coats from 50 to 140 mm (160 mm on compact walls). It can also be used on larger coats by reducing the cutting load.
How does Thermoflix Posaclima work?
- After identifying the fixing position of the hinge / card holder on the wall, first proceed by drilling the wall (with a tip of the required diameter);
- After drilling, always remember to clean the hole with the special manual blower;
- Then insert the mesh bush (only for perforated walls);
- Inject the PosaClima Chimotix or Chimogreenin anchor in sufficient quantity;
- Then proceed with the insertion of Thermofix into the hole;

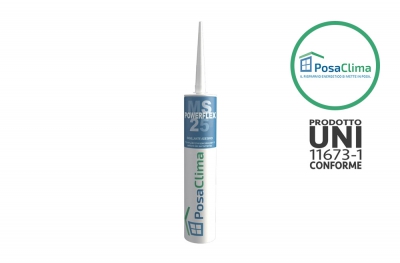

- Finish the job by sealing the polyamide sleeve to the wall with MS Powerflex 25.
Thermoflix PosaClima certifications and performances
Total gusset length
- 217 mm (Thermofix 16 for card holders)
- 240 mm (Thermofix 20 for hinges)
Thread length
- 80 mm (Thermofix 16 for card holders)
- 90 mm (Thermofix 20 for hinges)
Thread diameter
- M6 or M8 (Thermofix 16 for card holders)
- M10 or M12 (Thermofix 20 for hinges)
Hole diameter on the wall
- 16 mm (Thermofix 16 for card holders)
- 20 mm (Thermofix 20 for hinges)
Shear operating loads on solid masonry and thermal insulation
- 90 kg Thermofix 16 coat thickness 50 mm
- 165 kg Thermofix 20 coat thickness 50 mm
- 50 kg Thermofix 16 coat thickness 100 mm
- 117 kg Thermofix 20 coat thickness 100 mm
- 30 kg Thermofix 16 coat thickness 140 mm
- 80 kg Thermofix 20 coat thickness 140 mm
Shear operating loads on perforated masonry and thermal insulation
- 90 kg Thermofix 16 coat thickness 50 mm
- 120 kg Thermofix 20 coat thickness 50 mm
- 50 kg Thermofix 16 coat thickness 100 mm
- 85 kg Thermofix 20 coat thickness 100 mm
- 30 kg Thermofix 16 coat thickness 140 mm
- 62 kg Thermofix 20 coat thickness 140 mm
Tensile working loads on solid masonry and thermal insulation
- 90 kg Thermofix 16
- 90 kg Thermofix 20
Tensile working loads on perforated masonry and thermal insulation
- 60 kg Thermofix 16
- 76 kg Thermofix 20
Maximum coat thickness
- 140 mm (160 in case of compact masonry)
Point thermal transmittance
- χ = 0.012 W / K according to UNI EN ISO 6946 and UNI EN ISO 10211
PosaClima: energy saving takes place
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
