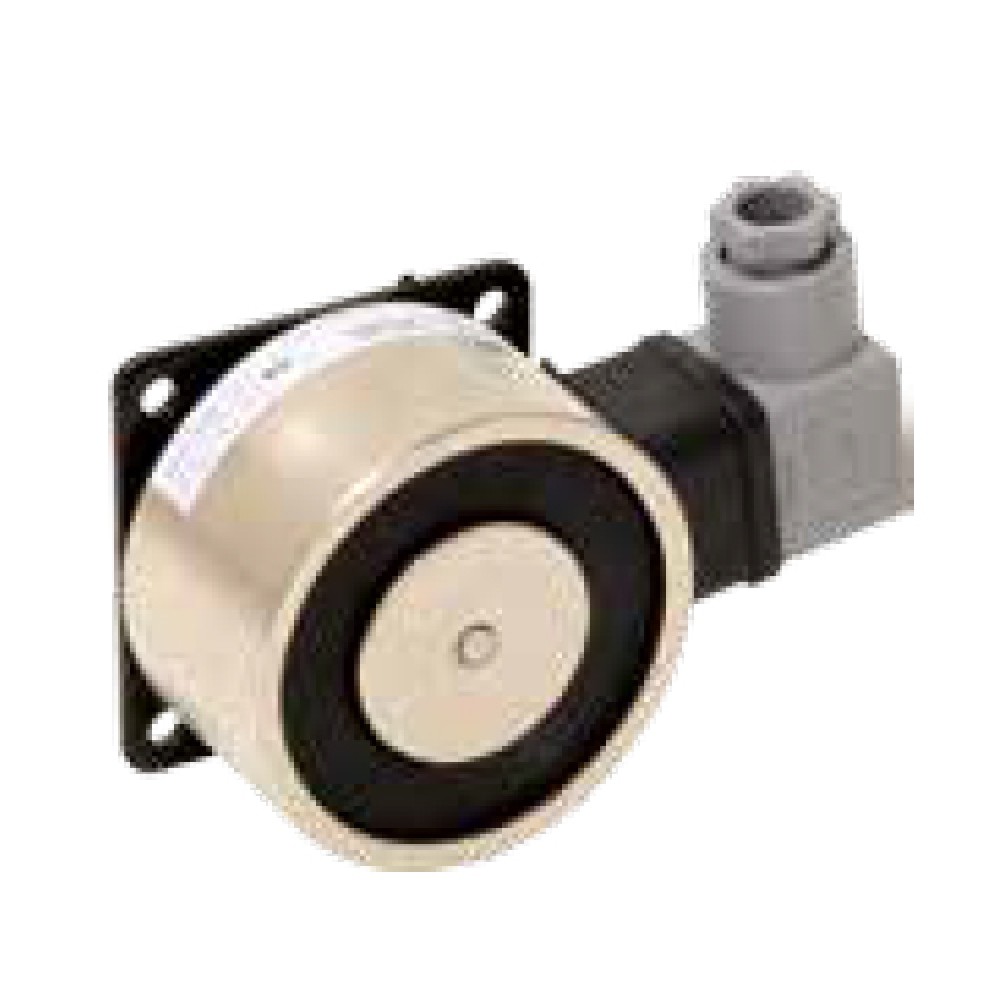

Door Holding Electromagnet for Swing or Sliding Counterweighted Fire Doors 18004 Opera
Use
Door holding electromagnet for swing or sliding counterweighted fire doors
Disponible choices
18004 Holding force: 55Kg
18104 Holding force: 140Kg
Technical info
Cylindrical body and black painted steel base
Magnet base and Armature plate dimensions (mm): 65 x 65 x 3
Diameter mm 70 x 41 (ref. 18104)
Operating voltage: 24 Vdc - Absorbed current: 70 mA
Residual anti-magnetism pin on the electromagnet body
Connector with anti-disturb varistor
18004 Holding force: 55Kg
18104 Holding force: 140Kg
Compliance: EN 1155
On demand
Contact us to add variants:
- 24 Vac power
IMPORTANT
Provided without armature plate.
Buy the armature plate separately in our website. Choose:
- Fixed Armature Plate (Art. 01800Z Opera)
- Swinging Armature (Art. 01805Z Opera).
