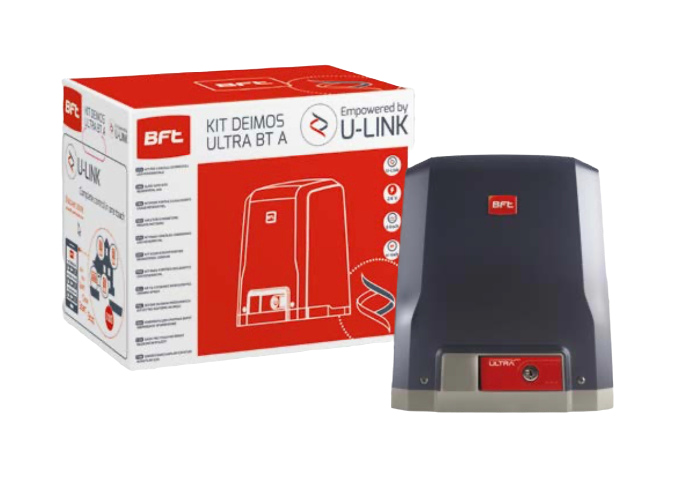

DEIMOS ULTRA BT A600 R925268 00002 Bft - Kit for Automatic Gate - 24V 600Kg
DEIMOS ULTRA BT A600 R925268 00002 Bft is a 24V powered automatic gate kit that can handle up to 600 Kg.
- DEIMOS ULTRA BT KIT A600 ITA;
- Bft Code: R925268 00002;
- 24V kit for sliding gates;
- Up to 600 kg of weight;
- Leaf speed 12 m / min;
- U-Link and magnetic limit switch.
Technical features of the DEIMOS ULTRA BT A600 gate kit
- Control unit: MERAK SL2;
- Board power supply: 230 V;
- Motor voltage: 24 V;
- Power consumption: 70 W;
- Max weight of the gate: 600 kg;
- Leaf speed 12 m / min;
- Limit Switch Type: Magnetic;
- Pinion module: 4;
- Slowdown: YES;
- Lock: Mechanical;
- Release: Lever with personalized key;
- Impact reaction: D-Track;
- Frequency of use: Intensive;
- Degree of protection: IP44;
- Environmental conditions: -20 ÷ 55 ° C.
What does DEIMOS ULTRA BT KIT A600 include?

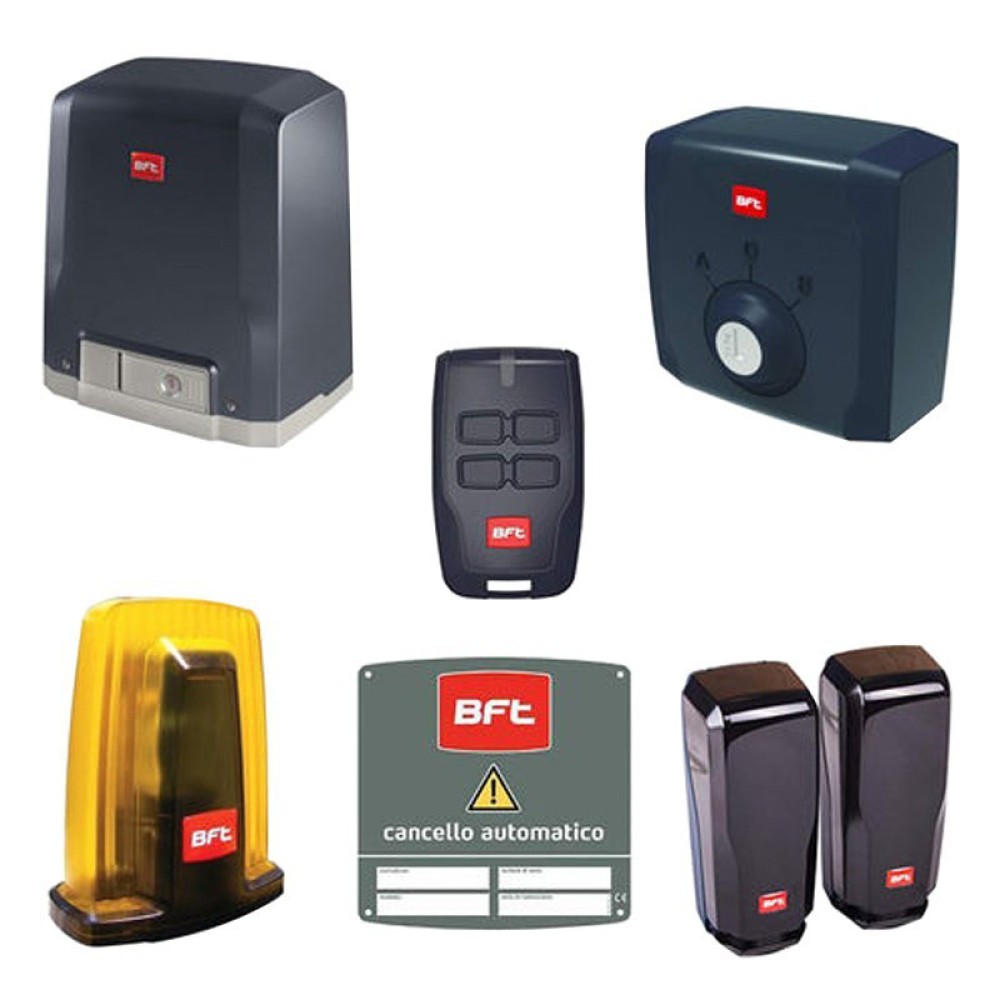

Bft kit R925268 00002 DEIMOS ULTRA BT KIT A600 ITA includes:
- n.1 - Deimos BT A600 - Ultra 24V operator for sliding gates up to 600 Kg - Magnetic limit switch;
- n.1 - Mitto B RCB 04 R1 - Four-channel 433MHz Rolling Code radio control;
- n.1 - Q.Bo Key WM - Key selector with personalized key;
- n.1 - Compacta A20-180 - Pair of photocells adjustable by 180 ° horizontally. Range 20 meters. Power supply 12 - 33Vac / 15 - 35Vdc;
- n.1 - RADIUS LED BT A R1 W 24V - Flashing LED 24V with integrated antenna and smoked gray cover;
- n.1 Cms - Warning sign;
- n.1 Merak - Integrated control unit - Programming on display - U-Link with receiver on board;
- n.1 Clonix 64 - Rolling Code 64 receiver 433MHz users - CH 1 START, CH 2 FREE - Integrated on the control unit.
KIT BFT DEIMOS ULTRA BT A600 - Sliding gate automation 600KG 24V
Complete kit for automation with sliding door BFT DEIMOS ULTRA BT KIT A600 article code R925268 00002.
Gearmotor for sliding gates up to 600 kg in weight. 24V motor for intensive use. Electronics equipped with obstacle detection with BFT D-TRACK technology and the possibility of inserting the batteries for continuous operation in the event of a power failure.
Permanent lubrication with lithium grease.
The 24V technology of Bft ensures optimal performance with a precise regulation of the slowdown in closing and opening. Stopping and immediate reversal of the run in the event of obstacles.
BFT D-TRACK - The push to operate safely
Gate kit with intelligent torque management system, based on the microprocessor technology of Bft control units.
By acquiring data from various indicators, it updates the level of thrust required to perform the maneuver. D-Track makes it easier for the installer to prepare the certifications required by law.
Thanks to this technology, Bft automatic gate devices record variations in force due to, for example, temperature differences or wear, constantly providing the optimal torque. In this way the Bft system guarantees the maximum safety of the system and its perfect functioning, regardless of the climatic conditions, temperature or degree of mechanical wear.
U-Link Bft innovative technology
U-Link, Universal Link , is an exclusive Bft platform that allows you to create technological ecosystems.
In Home Access Automation, it allows you to communicate with all home access automation devices, of any brand.
What is the difference between Deimos ULTRA and standard models?
The ULTRA models, unlike the standard ones, are equipped with a
more advanced electronic control unit, BFT MERAK series , equipped with a display in which it is possible to program by setting the parameters in detail, and with various electronically configurable outputs (operation and photocell logic, ribs, 2nd radio channel output, etc.).
In addition, the DEIMOS ULTRA kits are equipped with
magnetic limit switches .
How is the engine powered? Do you need an external transformer?
No, in fact the motor has an internal 230V - 24V transformer. Therefore the Bft gate motor must be connected to the classic 230V home line.
Bft kit for automatic gate - Made in Italy
For over 30 years, Bft has been designing intelligent and innovative solutions for every
home and building automation need.
The Bft brand satisfies the needs of professionals and end users, with a safe, reliable and complete range of products.
