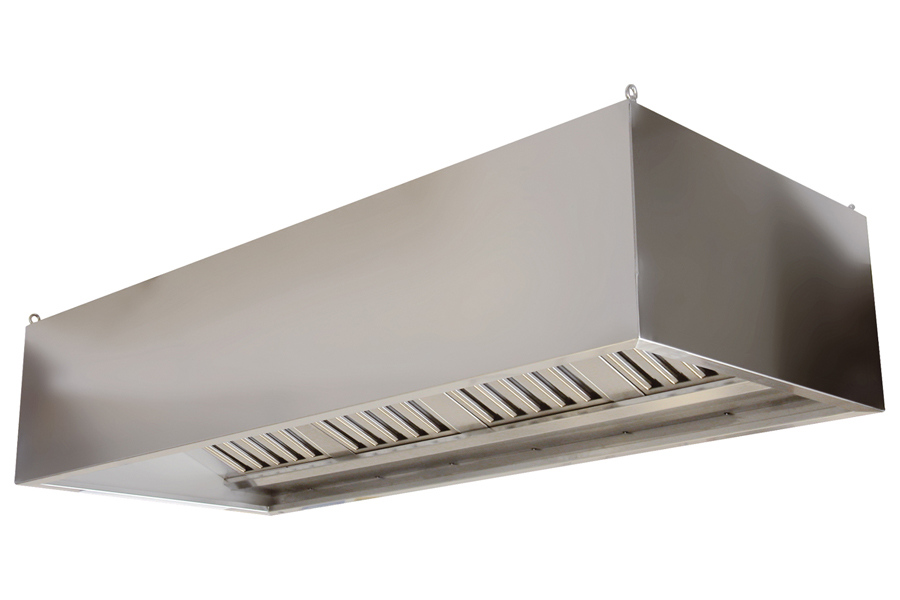

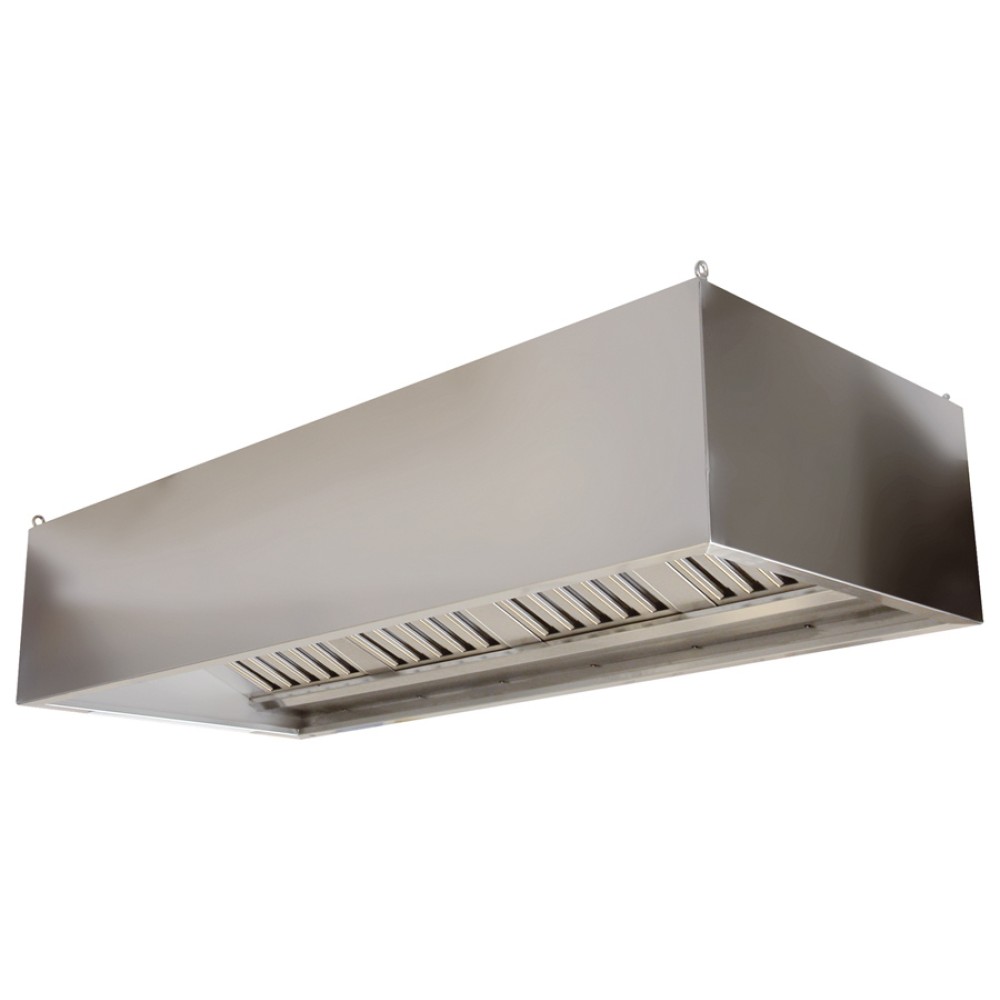

Cubic Wall Hood with Motor 90 cm or 110 cm

Brands: OndaInox

Code: KPM

-20%

€ 786,23 € 982,79

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

Cubic Wall Hood with Motor - Depth 90 cm or 110 cm - Stainless Steel - Made in Italy

Wall-mounted cubic hood with motor and 90 cm or 110 cm depth, made in Italy with fine stainless steel.

The parallelepiped profile of this wall-mounted cubic hood allows greater containment of the fumes and their better expulsion, and is also in line with the classic aesthetics used abroad.

Professional extractor hood designed and built to make the workplace clean and healthy. High performance thanks to the profile that contains the cooking vapours.

Professional cubic hood made entirely of high quality aisi 304 certified stainless steel to achieve maximum durability and comply with international food and hygiene-sanitary standards, with a scotch brite (satin) finish.

Cubic Wall Hood with Motor 90 cm or 110 cm

Wall-mounted cubic hood with motor - Construction features

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm , positioned against the wall;
Construction in AISI 430, Scotch-Brite satin finish . Fully edged, even in the internal parts;
Assembled by electro-welding;
Special executions (execution in AISI 304, assembly by welding), LED strip lighting and larger sizes only on request.

Supplied with the cubic wall hood

Labyrinth filters for AISI 430 stainless steel hoods ;
Centrifugal electric fan 220V single-phase 50/60Hz;
1/2” condensate drain.

Notes on the cubic wall hood

Packaging included in the price;
Hanging kit and flange not included;
The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: KP711 = KP712);
Made in Italy;
Built in compliance with CE standards.

Stainless Steel Wall Mounted Hood with Motor

Cappa Cubica a Parete con Motore - Profondità 90 cm

Cubic Wall Hood with Motor - Depth 90 cm

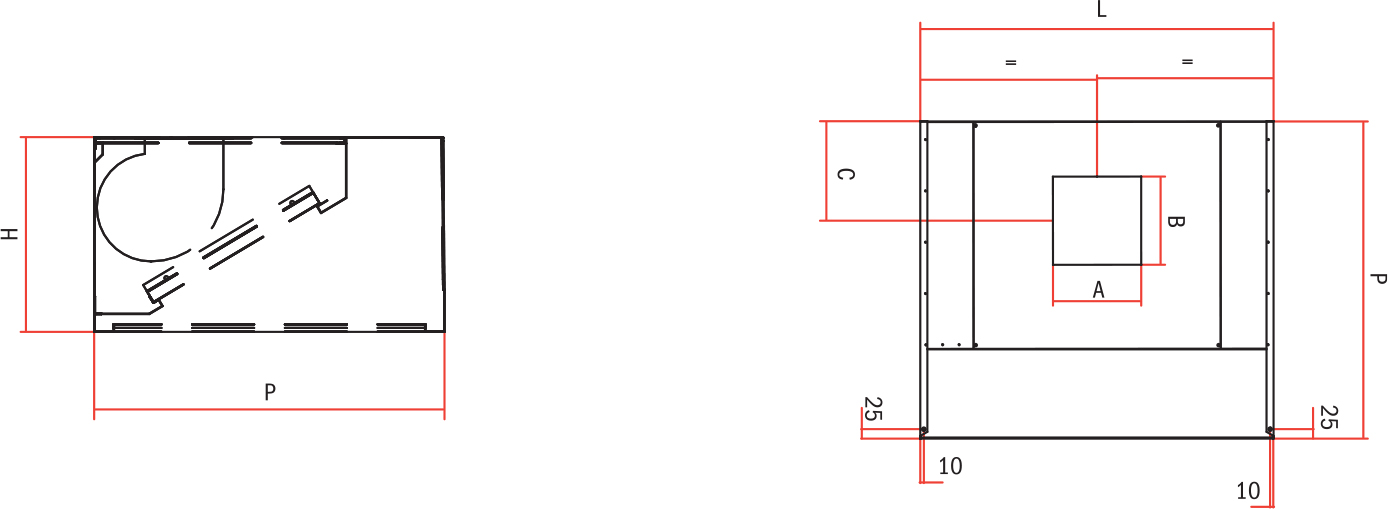

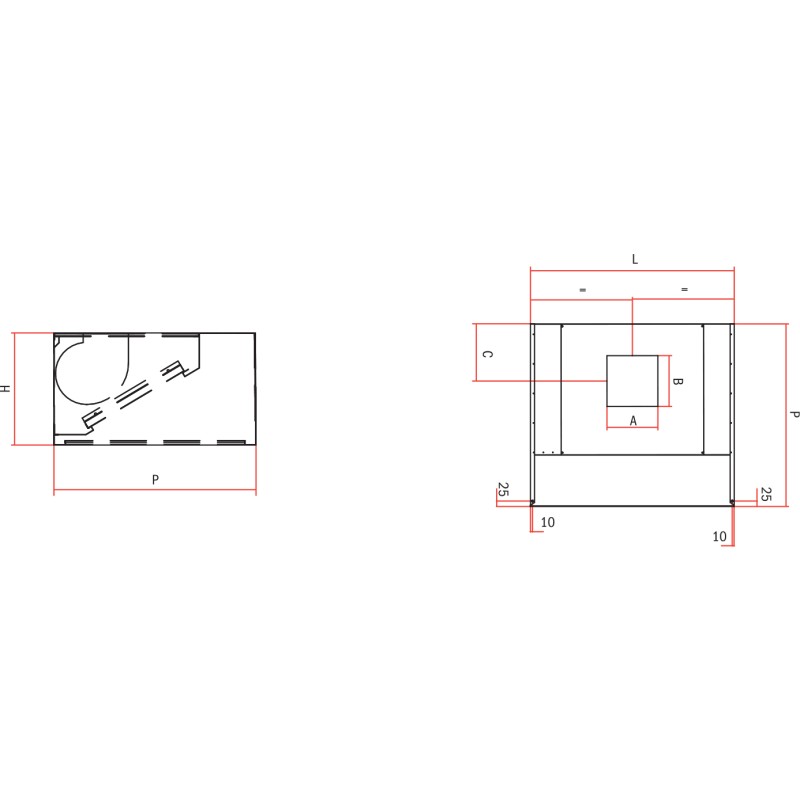

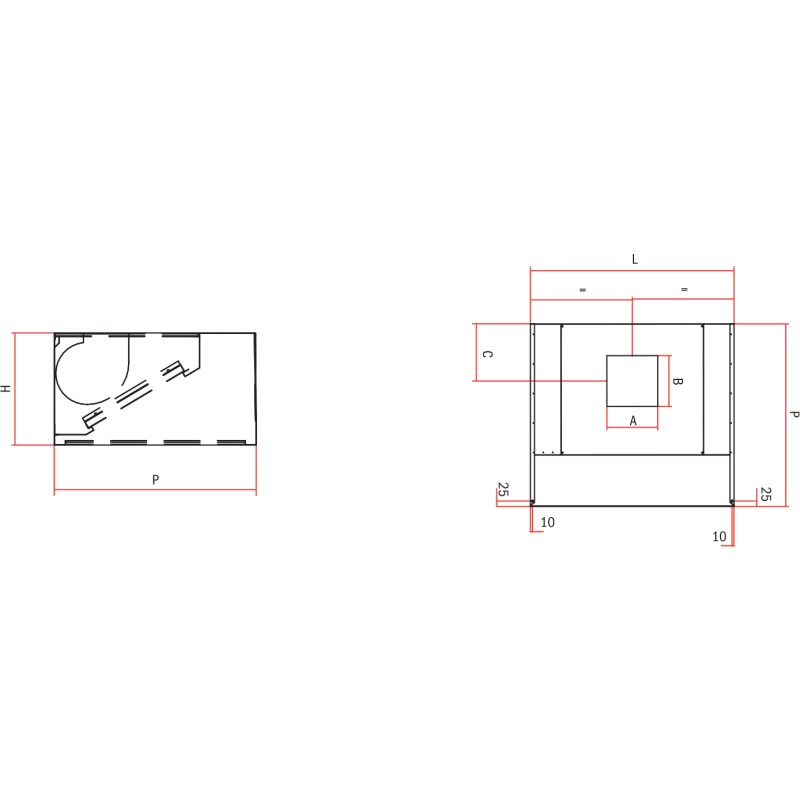

Model	Dimensions PxLxH mm	A x Bmm	C mm	n° Filters	Weight	Motor
KPM 9/10	900x100x500	230x200	245	2c	35	7/7
KPM 9/12	900x120x500	230x200	245	2d	39	7/7
KPM 9/14	900x140x500	230x200	245	3c	47	7/7
KPM 9/16	900x160x500	300x270	215	3c	55	9/9T
KPM 9/18	900x180x500	300x270	215	3d	58	9/9T
KPM 9/20	900x200x500	300x270	215	4c	63	9/9T
KPM 9/22	900x220x500	300x270	215	4c	67	9/9T
KPM 9/24	900x240x500	300x270	215	4d	71	8/9T
KPM 9/26	900x260x500	300x270	215	4d	76	8/9T
KPM 9/28	900x280x500	300x270	215	5d	79	8/9T
KPM 9/30	900x300x500	300x270	215	5d	81	8/9T

Cappa Cubica a Parete con Motore - Profondità 110 cm

Cubic Wall Hood with Motor - Depth 110 cm

Model	Dimensions PxLxH mm	A x Bmm	C mm	n° Filters	Weight	Motor
KPM 11/12	900x120x500	230x200	245	2d	48	7/7
KPM 11/14	900x140x500	300x270	215	3c	57	8/9T
KPM 11/16	900x160x500	300x270	215	3c	65	8/9T
KPM 11/18	900x180x500	300x270	215	3d	69	8/9T
KPM 11/20	900x200x500	300x270	215	4c	73	8/9T
KPM 11/22	900x220x500	300x270	215	4c	77	8/9T
KPM 11/24	900x240x500	300x270	215	4d	81	8/9T
KPM 11/26	900x260x500	300x270	215	4d	85	8/9T
KPM 11/28	900x280x500	300x270	215	5d	89	8/9T
KPM 11/30	900x300x500	300x270	215	5d	97	8/9T
