Cubic Wall Hood Depth 90 110 130 cm Without Motor

Brands: OndaInox

Code: KP

-20%

€ 476,72 € 595,90

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

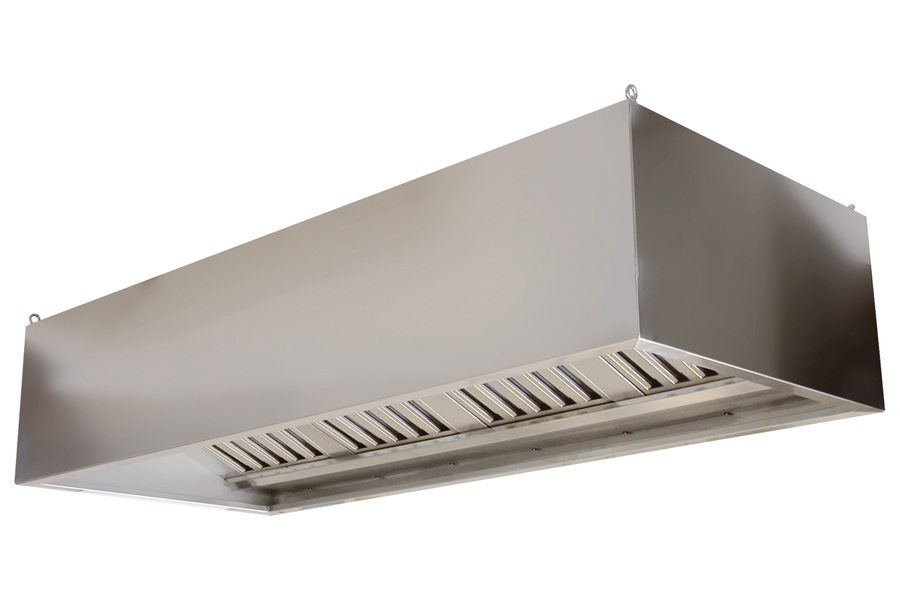

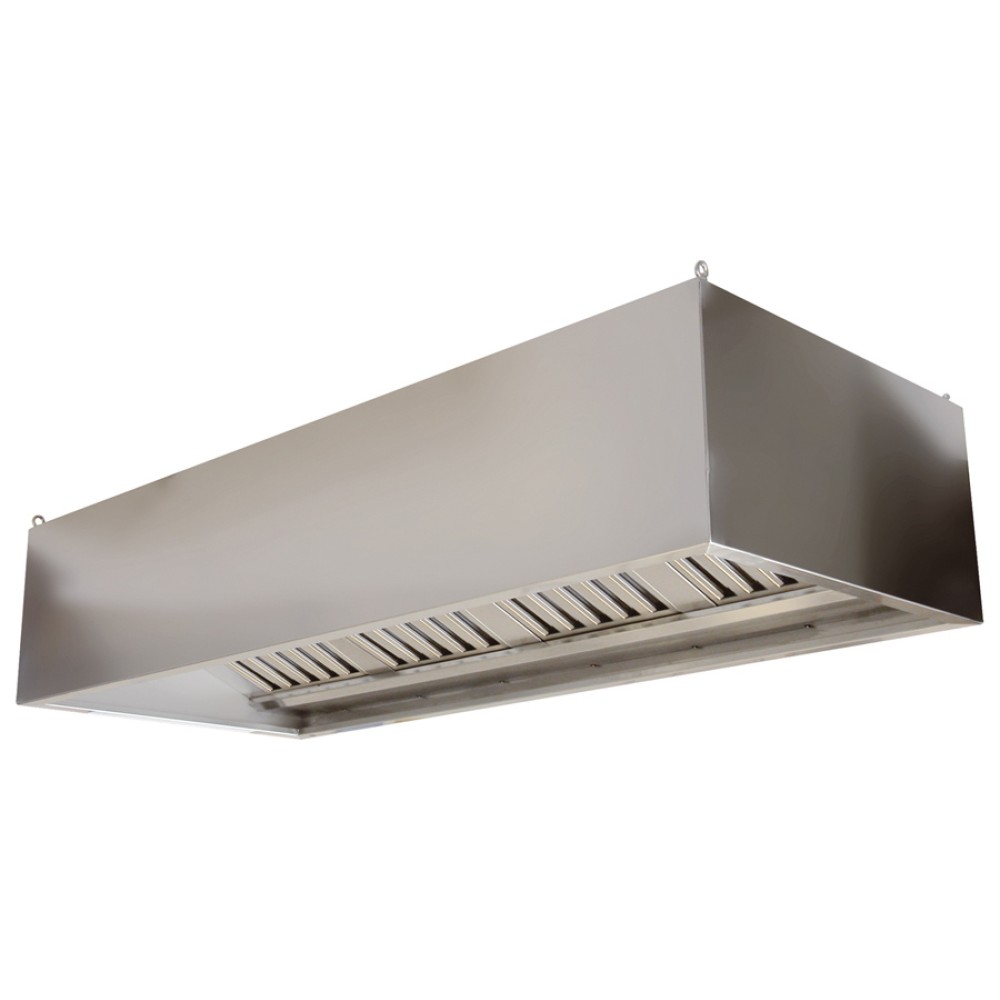

Cubic Wall Hood Depth 90 110 130 cm - Without Electric Fan Motor

Wall-mounted cubic hood with depth measurement to choose between 90 cm, 110 cm or 130 cm.

This cubic wall hood is made in Italy and made of high quality stainless steel .

The parallelepiped profile of the cubic hood allows greater containment of the fumes and their better expulsion, and is also in line with the classic aesthetics used abroad.

cappa cubica a parete

Wall-mounted cubic hood - Construction features

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall;
Construction in AISI 430 , Scotch-Brite satin finish. Fully edged, even in the internal parts;
Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request;
Longer length measurements and LED Strips lighting only on request (contact us if you are interested for a free quote).

Supplied with the cubic wall hood:

Labyrinth grease filters in AISI 430 stainless steel;
1/2” condensate drain.

Notes on the cubic wall hood:

Bubble wrap packaging with polystyrene corners included in the price;
Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: KP711 = KP712).

Cubic Wall Hood Without Electric Fan - Depth 900 mm

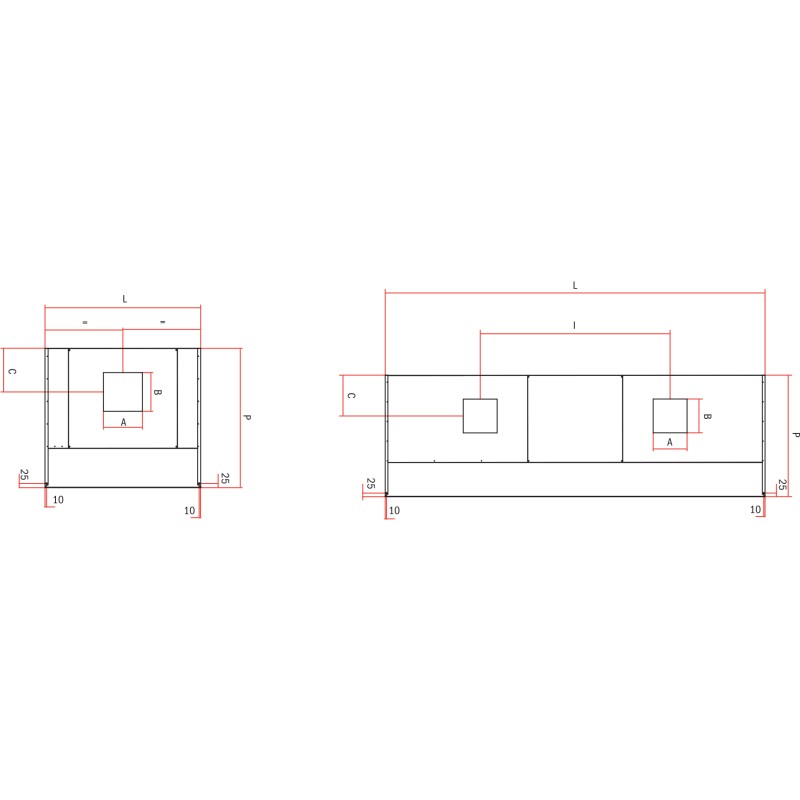

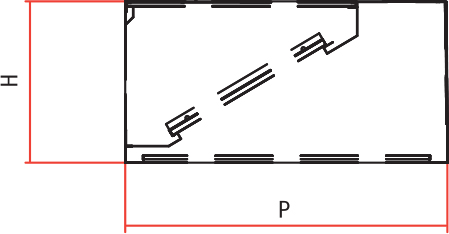

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	LEDs	Scope	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	(4 watts)	(m3/h)	(mm)
KP 9/10	900x1000x450	200x200	300	2c	34	2	1100
KP 9/12	900x1200x450	200x200	300	2d	38	2	1400
KP 9/14	900x1400x450	250x250	300	3c	42	3	1600
KP 9/16	900x1600x450	300x300	300	3c	45	3	1800
KP 9/18	900x1800x450	300x300	300	3d	48	3	2000
KP 9/20	900x2000x450	300x300	300	4c	52	4	2250
KP 9/22	900x2200x450	300x300	300	4c	54	4	2500
KP 9/24	900x2400x450	300x300	300	4d	56	4	2700
KP 9/26	900x2600x450	300x300x20	300	4d	59	5	2950	1300
KP 9/28	900x2800x450	300x300x20	300	5d	62	5	3200	1400
KP 9/30	900x3000x450	300x300x20	300	5d	65	5	3400	1500
KP 9/32	900x3200x450	300x300x20	300	5d	69	6	3650	1600
KP 9/34	900x3400x450	300x300x20	300	6d	72	6	3850	1700
KP 9/36	900x3600x450	300x300x20	300	6d	75	7	4050	1800
KP 9/38	900x3800x450	300x300x20	170	6d	79	7	4300	1900

Cubic Wall Hood Without Electric Fan - Depth 1100 mm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	LEDs	Scope	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	(4 watts)	(m3/h)	(mm)
KP 11/12	1100x1200x450	250x250	300	2d	37	2	1700
KP 11/14	1100x1400x450	250x250	300	3c	40	3	1950
KP 11/16	1100x1600x450	300x300	300	3c	43	3	2200
KP 11/18	1100x1800x450	300x300	300	3d	46	3	2500
KP 11/20	1100x2000x450	300x300	300	4c	50	4	2800
KP 11/22	1100x2200x450	300x300	300	4c	54	4	3100
KP 11/24	1100x2400x450	300x300x2	300	4d	58	4	3400
KP 11/26	1100x2600x450	300x300x2	300	4d	61	5	3600	1300
KP 11/28	1100x2800x450	300x300x2	300	5d	64	5	3900	1400
KP 11/30	1100x3000x450	300x300x2	300	5d	67	5	4200	1500
KP 11/32	1100x3200x450	300x300x2	300	5d	71	6	4500	1600
KP 11/34	1100x3400x450	300x300x2	300	6d	74	6	4700	1700
KP 11/36	1100x3600x450	300x300x2	300	6d	77	7	5000	1800
KP 11/38	1100x3800x450	300x300x2	300	6d	85	7	5300	1900
