Cubic Island Hood in Stainless Steel Without Motor

Brands: OndaInox

Code: KC

-20%

€ 720,66 € 900,82

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

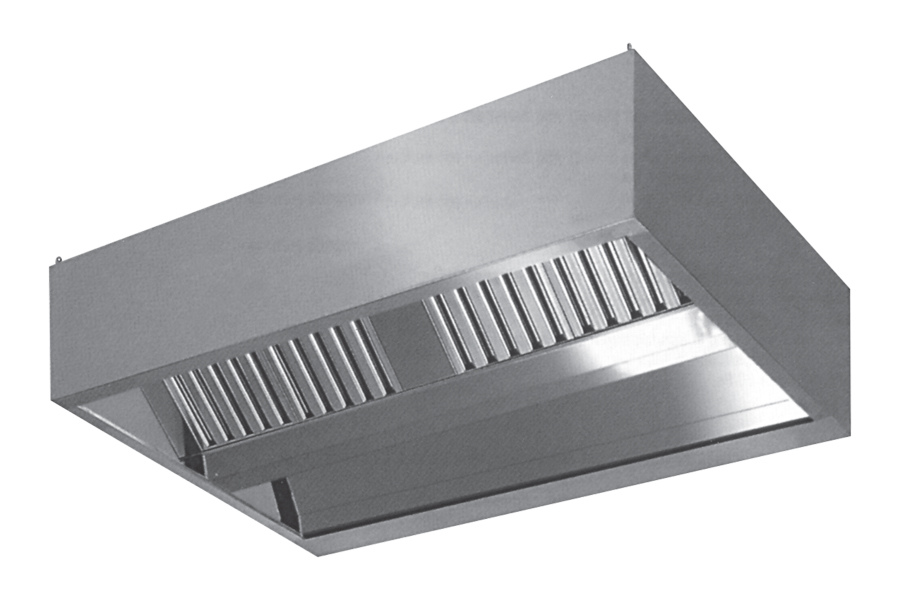

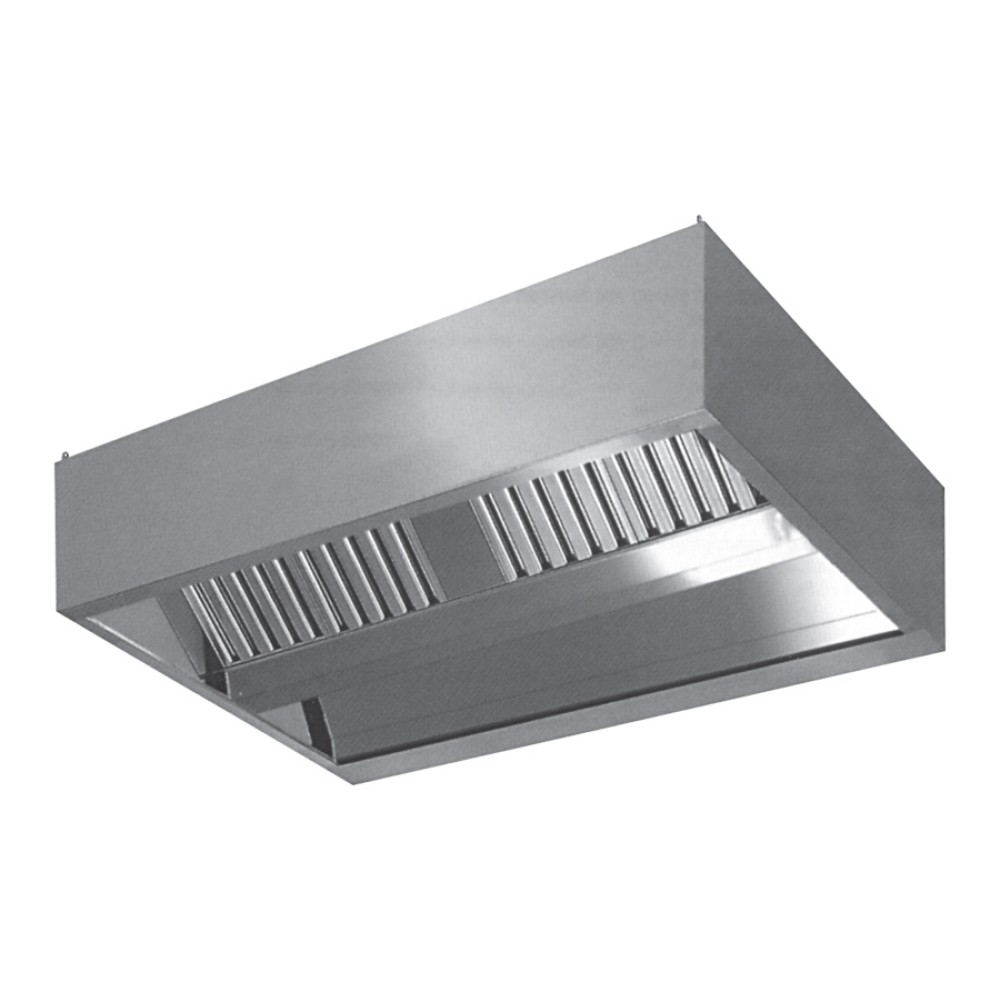

Cubic Island Hood in Stainless Steel - Without Motor

Cubic island hood in stainless steel , version without motor (if you are interested in the version with motor you can find it for sale online on Windowo).

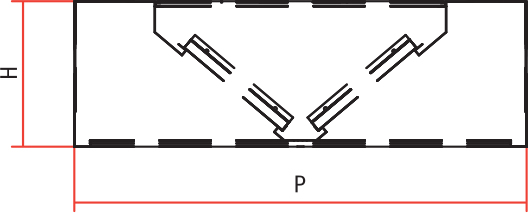

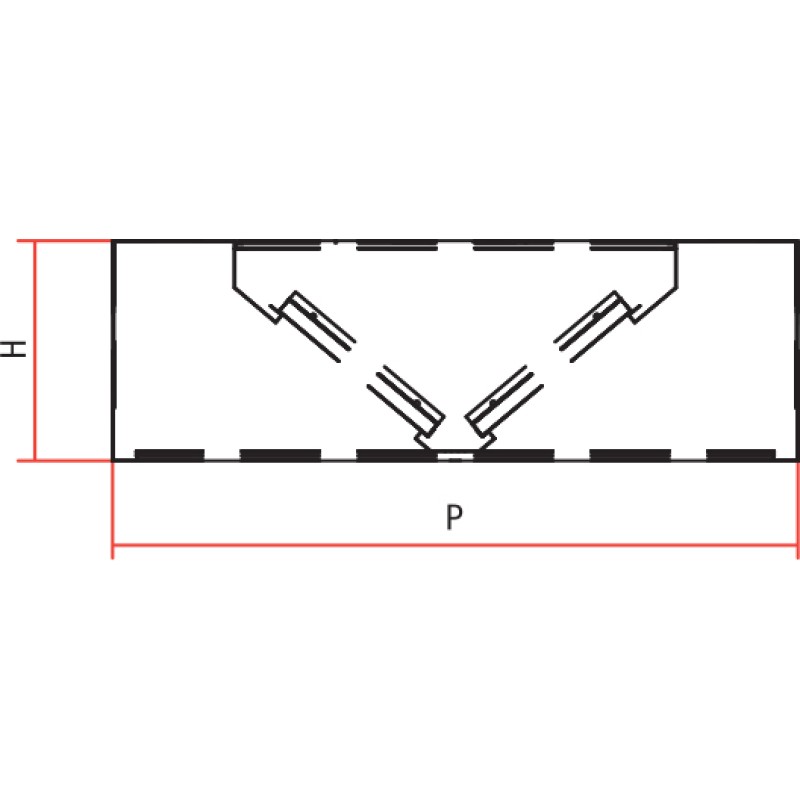

The parallelepiped profile allows greater containment of the fumes and their better expulsion, and is also in line with the classic aesthetics used abroad.

The labyrinth filters allow a filtration of the air from oils and a protection against possible fires.

Cubic island hood in stainless steel - Technical characteristics

The particular profle of the cubic hood is ideal for cooking blocks with a depth of 60-70-90 cm, positioned in the center of the room;
Construction in AISI 430, Scotch-Brite satin finish. Fully edged, even in the internal parts;
Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request.

Supplied with the cubic island hood:

Labyrinth grease filters in AISI 430 stainless steel;
1/2” condensate drain.

Island cubic hood notes:

Bubble wrap packaging with polystyrene corners and wooden cage included in the price;
Hanging kit and flange not included;
The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: KP711 = KP712);
For longer lengths, contact us and we will give you a free quote.

Cappa Cubica a Isola in Acciaio Inox - Senza Motore

Cappa cubica a isola in acciaio inox - Profondità 140 cm

Cubic island hood in stainless steel - Depth 140 cm

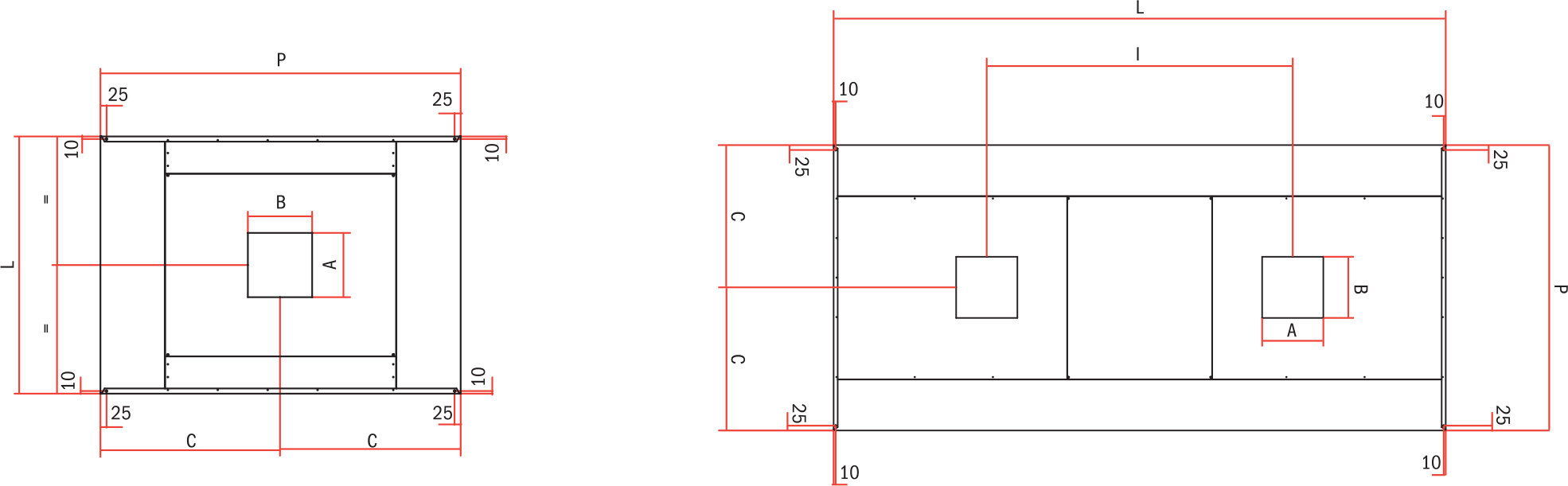

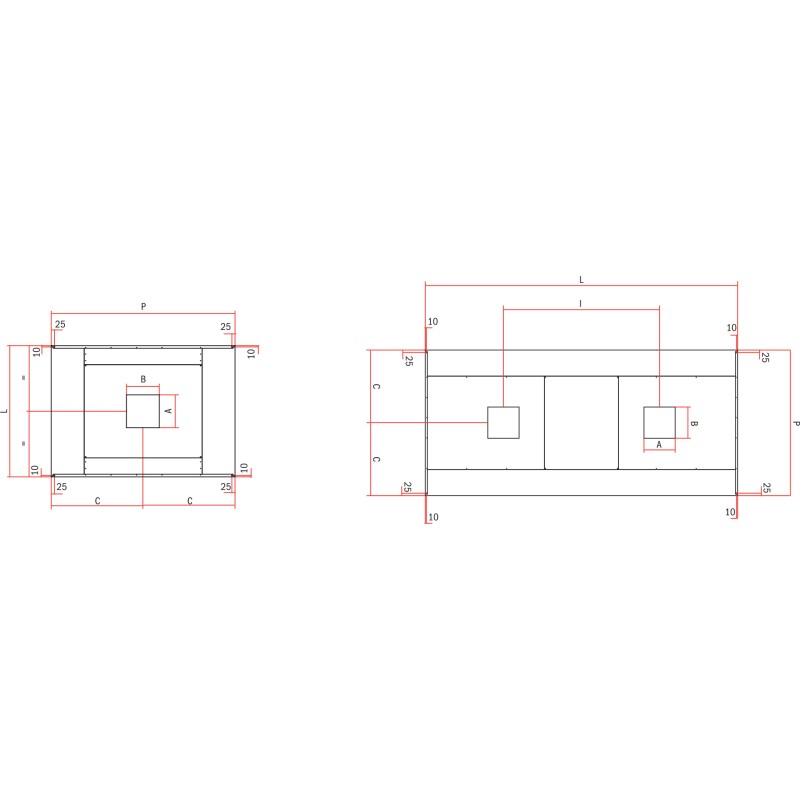

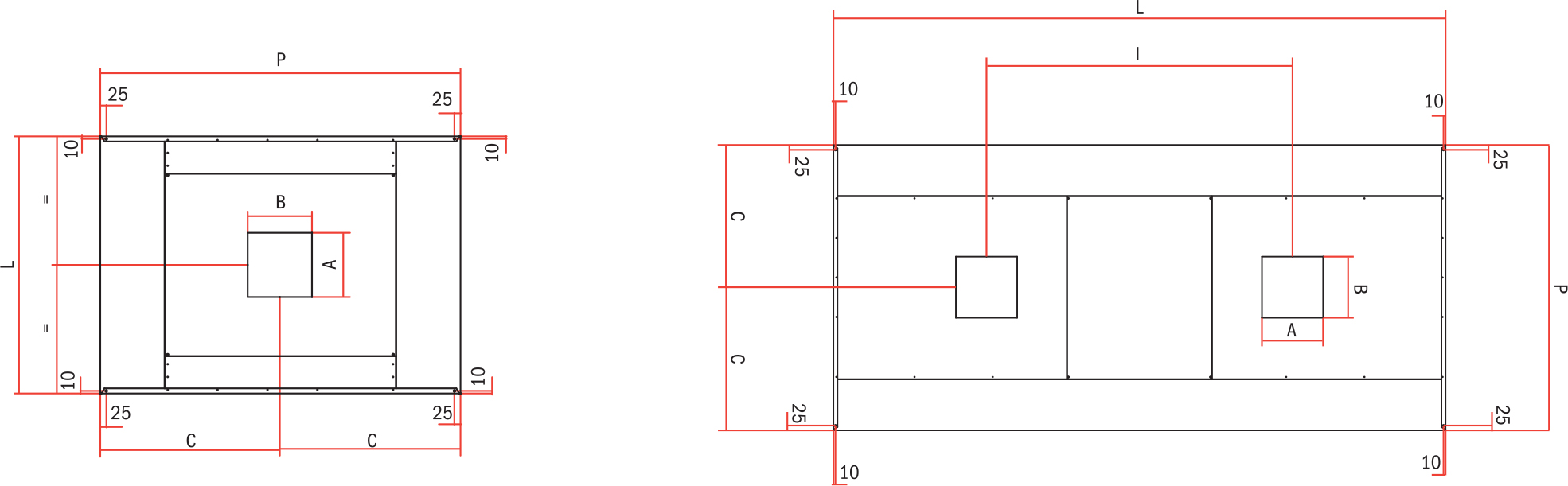

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	*Flow rate (m3/h)**	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	*Flow rate (m3/h)**	(mm)
KC 12/14	1400x1200x450	250x250	700	4b	60	2100
KC 14/14	1400x1400x450	250x250	700	4b	64	2500
KC 14/16	1400x1600x450	300x300	700	6a	68	2800
KC 14/18	1400x1800x450	300x300	700	6b	72	3200
KC 14/20	1400x2000x450	300x300	700	8a	76	3500
KC 14/22	1400x2200x450	400x300	700	8a	80	3950
KC 14/24	1400x2400x450	400x300	700	8b	84	4200
KC 14/26	1400x2600x450	400x300	700	8b	88	4600
KC 14/28	1400x2800x450	300X300X2	700	10b	ninety two	4900	1400
KC 14/30	1400x3000x450	300X300X2	700	10b	96	5300	1500
KC 14/32	1400x3200x450	300X300X2	700	10b	100	5600	1600
KC 14/34	1400x3400x450	300X300X2	700	12b	104	6000	1700
KC 14/36	1400x3600x450	300X300X2	700	12b	108	6400	1800
KC 14/38	1400x3800x450	300X300X2	700	12b	120	6700	1900

Cappa cubica a isola in acciaio inox - Profondità 180 cm

Cubic island hood in stainless steel - Depth 180 cm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	*Flow rate (m3/h)**	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	*Flow rate (m3/h)**	(mm)
KC 18/12	1800x1200x450	300x300	900	4d	64	2750
KC 18/14	1800x1400x450	300x300	900	6c	68	3200
KC 18/16	1800x1600x450	300x300	900	6c	72	3650
KC 18/18	1800x1800x450	400x300	900	6d	76	4050
KC 18/20	1800x2000x450	400x300	900	8c	80	4550
KC 18/22	1800x2200x450	400x300	900	8c	84	5000
KC 18/24	1800x2400x450	300X300X2	900	8d	88	5450	1200
KC 18/26	1800x2600x450	300X300X2	900	8d	ninety two	5900	1300
KC 18/28	1800x2800x450	300X300X2	900	10d	96	6350	1400
KC 18/30	1800x3000x450	300X300X2	900	10d	100	6800	1500
KC 18/32	1800x3200x450	300X300X2	900	10d	106	7250	1600
KC 18/34	1800x3400x450	300X300X2	900	12d	112	7700	1700
KC 18/36	1800x3600x450	300X300X2	900	12d	116	8200	1800
KC 18/38	1800x3800x450	300X300X2	900	12d	123	8600	1900

Cappa cubica a isola in acciaio inox - Profondità 220 cm

Cubic island hood in stainless steel - Depth 220 cm

Model	Dimensions WxLxH	A x B	c	n° Filters	Weight	*Flow rate (m3/h)**	THE
Model	(mm)	(mm)	(mm)	n° Filters	(kg)	*Flow rate (m3/h)**	(mm)
KC 12/22	2200x1200x500	300x300	1100	4d	66	3300
KC 22/14	2200x1400x500	300x300	1100	6c	72	3900
KC 22/16	2200x1600x500	400x300	1100	6c	79	4450
KC 22/18	2200x1800x500	400x300	1100	6d	82	5000
KC 22/20	2200x2000x500	400x300	1100	8c	86	5550
KC 22/22	2200x2200x500	400x300	1100	8c	90	6100
KC 22/24	2200x2400x500	300X300X2	1100	8d	94	6660	1200
KC 22/26	2200x2600x500	300X300X2	1100	8d	102	7200	1300
KC 22/28	2200x2800x500	300X300X2	1100	10d	109	7800	1400
KC 22/30	2200x3000x500	300X300X2	1100	10d	111	8300	1500
KC 22/32	2200x3200x500	300X300X2	1100	10d	115	8850	1600
KC 22/34	2200x3400x500	300X300X2	1100	12d	120	9450	1700
KC 22/36	2200x3600x500	300X300X2	1100	12d	123	10000	1800
KC 22/38	2200x3800x500	300X300X2	1100	12d	131	10500	1900
