Cremone Bolt Giesse Prima - Window Handle - Ambidextrous Bidirectional - Opening for Door
Giesse Prima cremone bolt , version for sash, suitable for nodes of the type C001, C002, C003, C004, C005, C006, C007, C008, C009, C010, C012, C013, C014, C015, C016, C017, P001, P002, P004 , P005, P006, P007, P008, P009, P010.
We recommend reading the PDF "
Nodi Tipo Battente C ", which describes the nodes and the series/systems to which this article is adapted (it can be found in the "Documents" section of the product sheet).
Giesse cremone bolt: what are the functions?
Ambidextrous cremone bolt , for open joint systems, with 90° rotation and positioning click on opening and closing.
It maintains the functional characteristics of the "Euro" cremone bolt with a different aesthetic line.
Finishes of the Giesse Prima cremone bolt:
Silver, Bronze, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Technical features - Giesse Prima cremone bolt:
The use of quality die-cast materials and the adoption of the Giesse painting system guarantee high mechanical qualities as well as uniformity of colors and strong resistance to abrasion.
The Euro cremone bolt has 104mm and 84mm center distances, but can easily be adapted for 98mm center distances.

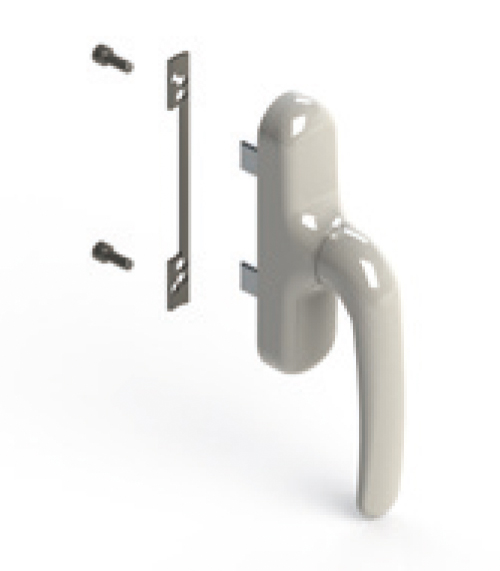

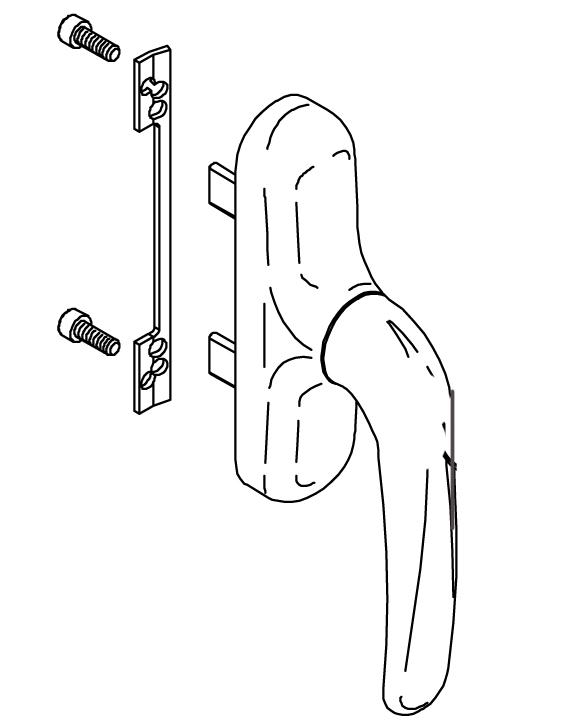

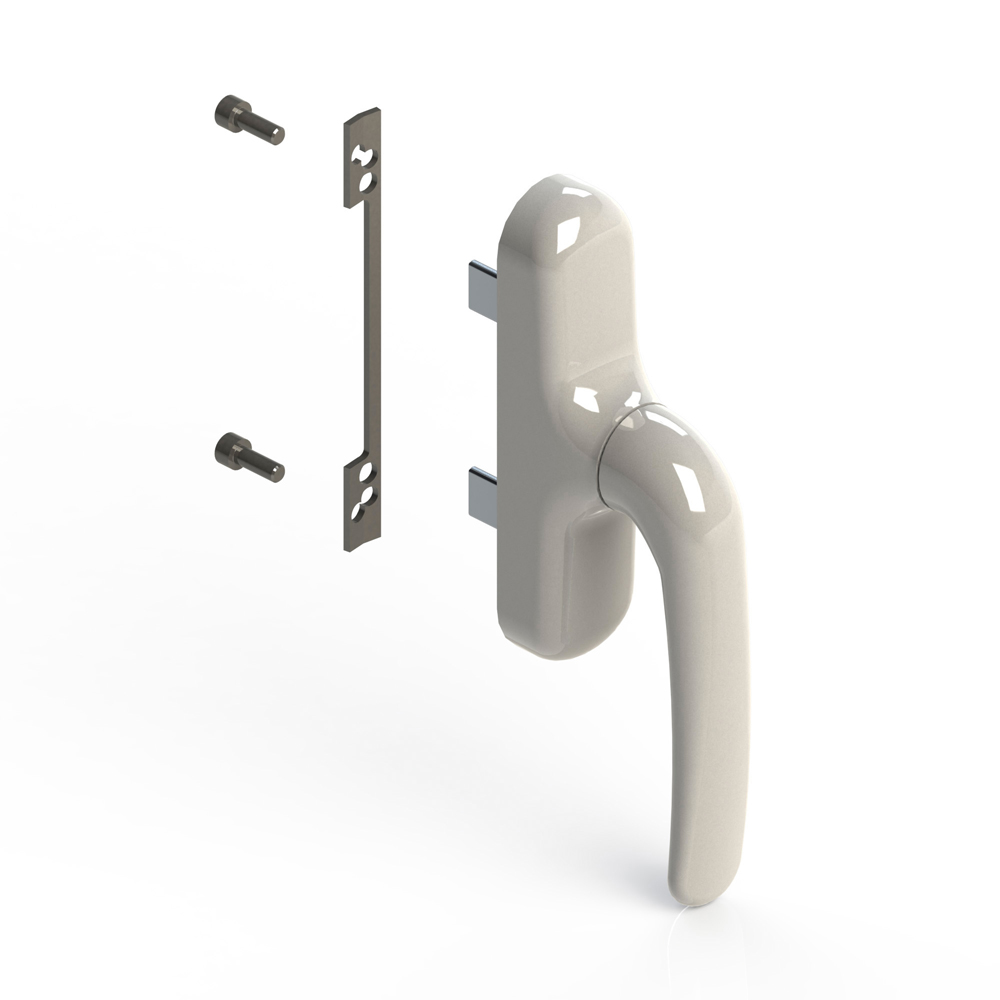

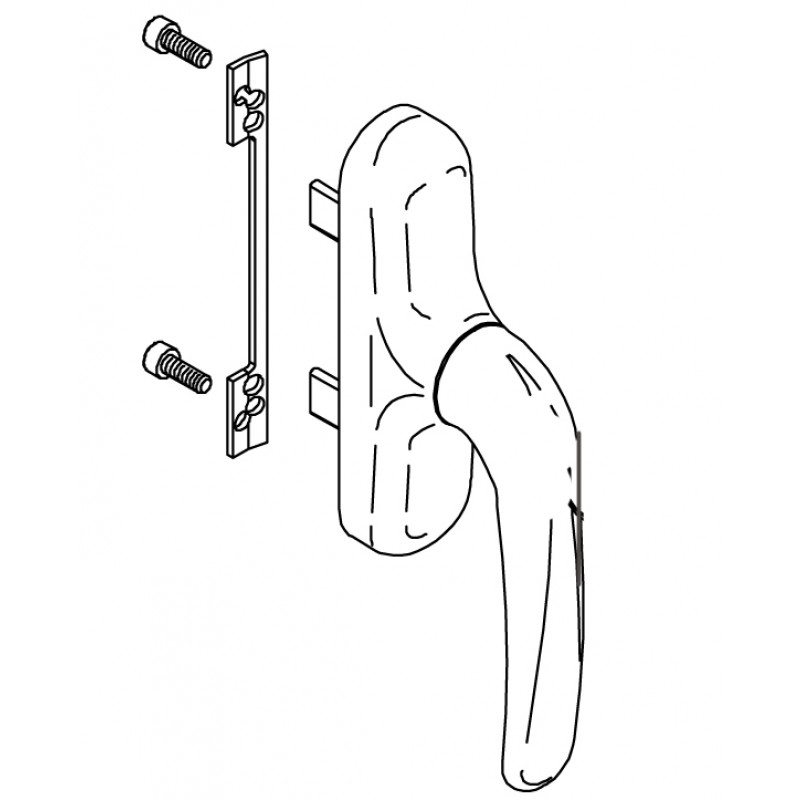

Equipment - Cremone bolt for Giesse Prima window:
- 1 fixing plate
- 2 TCCE M5x14 screws
Giesse Prima cremone bolt materials:
- Die-cast aluminum handle;
- Cremonese case, gear;
- Racks and slides in die-cast zamak;
- Inner sheath and base in Hostaform;
- Steel spring;
- Screw and fixing plate in stainless steel.
ATTENTION: More information on the product is contained in the PDF attached to the product sheet.
What is a cremone window handle?
A
window handle is useful for closing and opening a window. It differs from the window handle due to the different mounting architecture. In fact, the cremone bolt is equipped with a particular mechanism under the plate.
