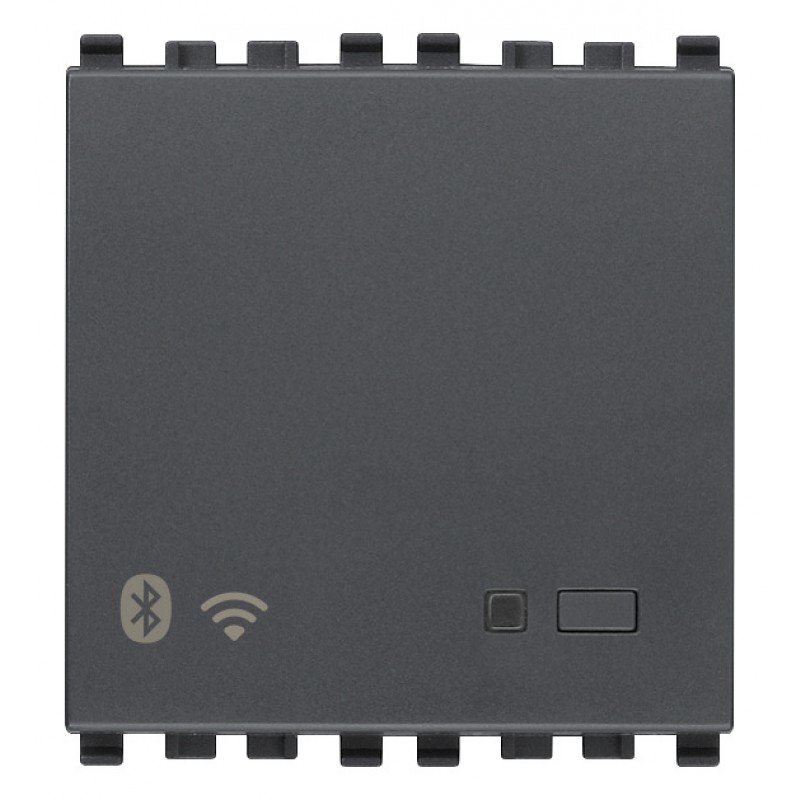

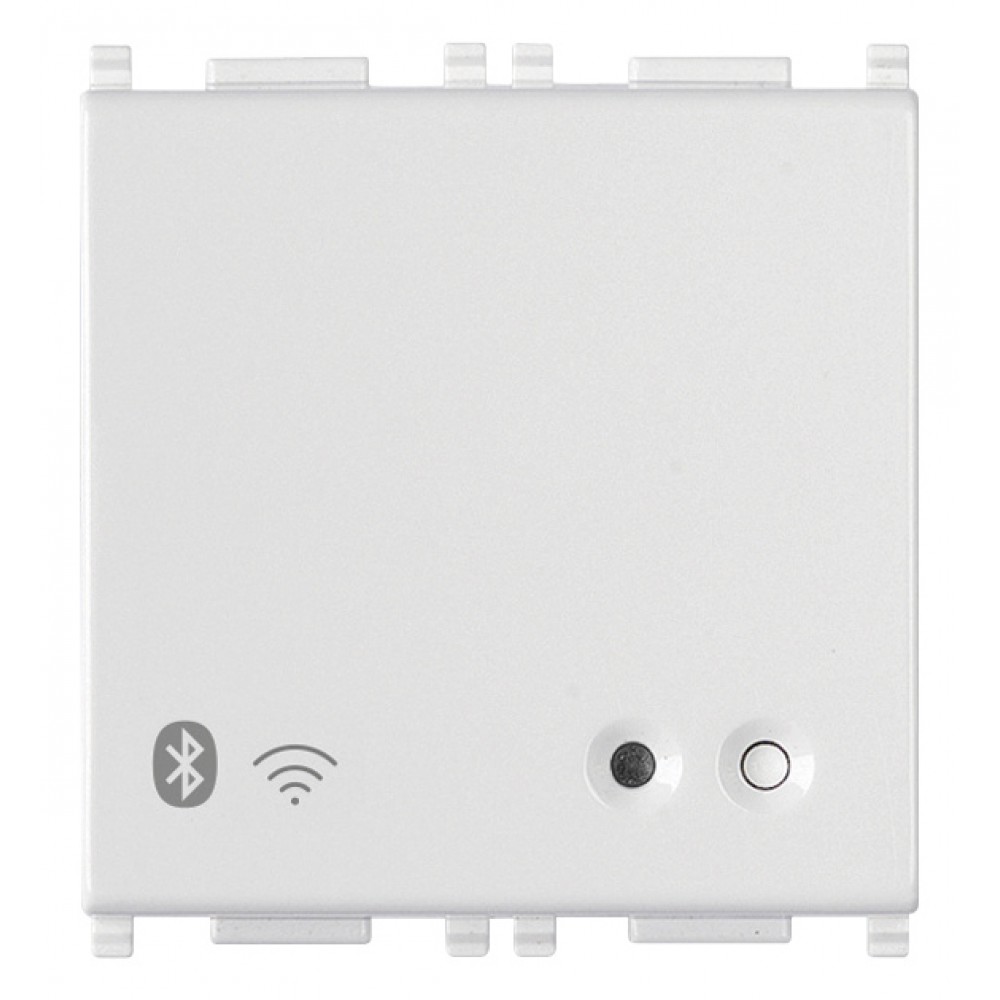

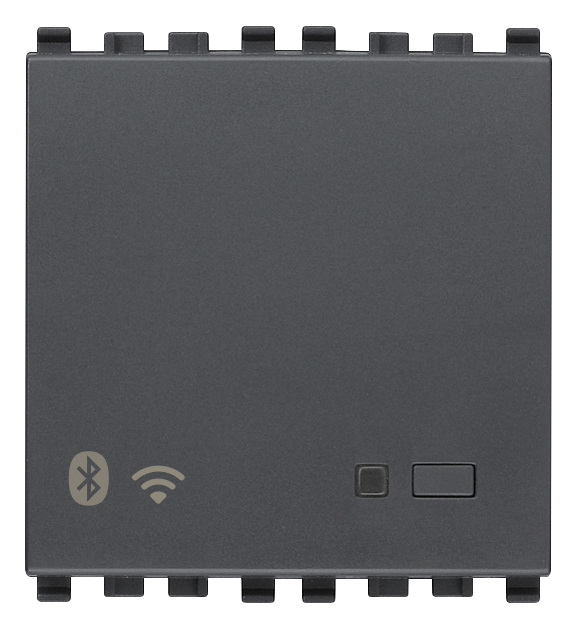

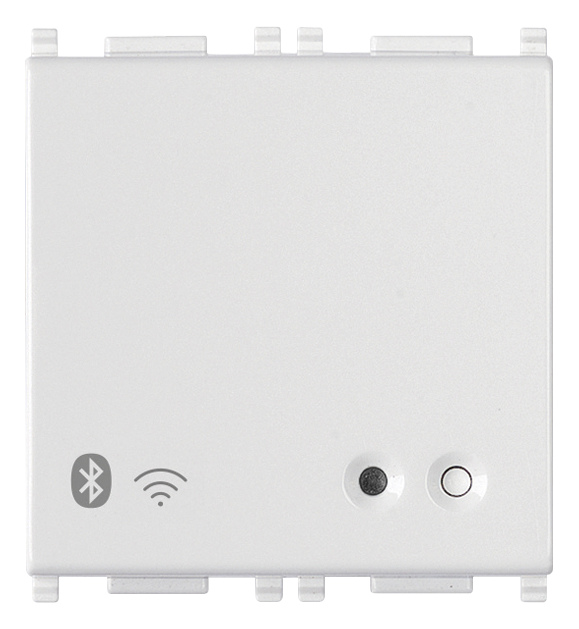

Connected Gateway Vimar 2 Modules - Plana, Idea, Arkè, Eikon Civil Series - White or Silver
Gateway connected 2 Vimar modules for various
civil series :
Plana code 14597, Idea code 16497, Arkè code 19597, Eikon code 20597 .
Vimar gateway color to choose from white or silver gray.
IoT Bluetooth Wi-Fi gateway for integration, configuration, supervision of VIEW Wireless, via Cloud and App for smartphones, tablets, power supply 100-240 V 50/60 Hz, white - 2 modules This connected Vimar device allows the user to supervise via the View app and
Alexa, Google Assistant and Siri voice assistants. In fact, the gateway is a Bluetooth technology Wi-Fi device that allows dialogue with wireless devices to allow configuration, supervision, system diagnostics and its integration with voice assistants.
It is the main device that manages the Bluetooth technology Mesh network and through the View Wireless App receives the system configuration via Bluetooth technology. The presence of wifi connectivity is necessary to allow connection to the cloud for supervision
(local and remote) and for integrations with Alexa voice assistants, Google Assistance Siri. It is also compatible with Apple Homekit.
The gateway is equipped with a
front button for configuration / reset and RGB LED for signaling the status of the device.
Features Gateway Connected 2 Vimar Modules
- Nominal supply voltage: 100-240 V ~, 50/60 Hz;
- Power dissipated: 0.9 W;
- Transmitted RF power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz;

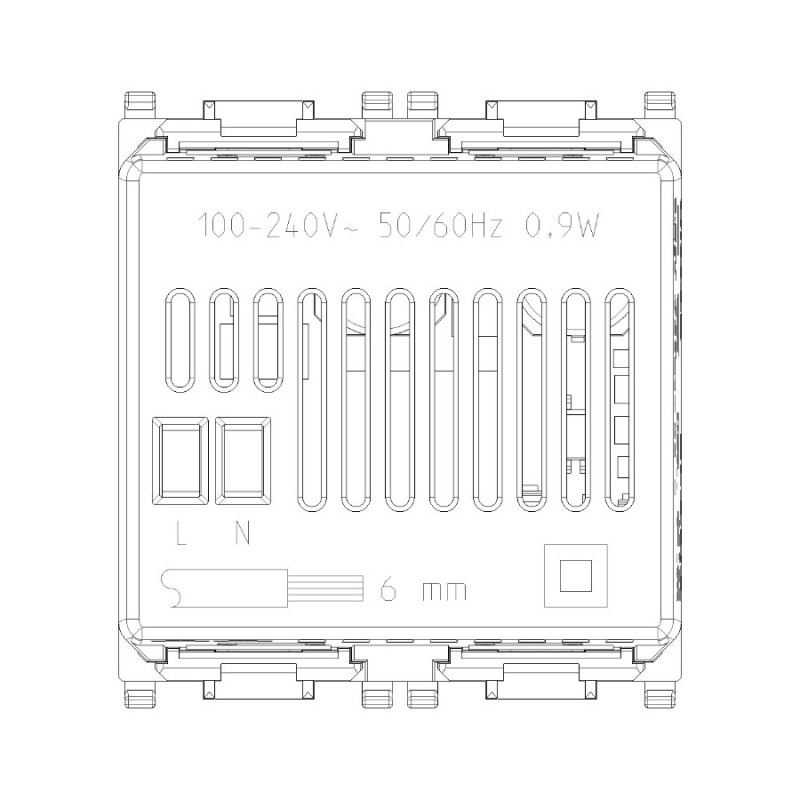

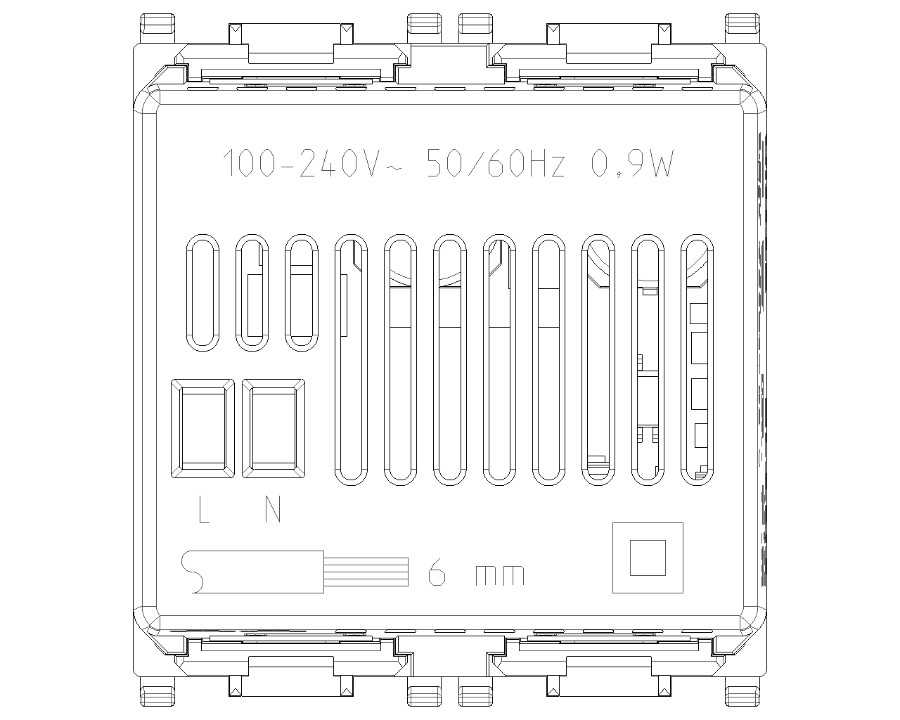

- Terminals: 2 (L and N) for line and neutral;
- 1 front button for configuration and reset;
- RGB LED that indicates the status of the device;
- Operating temperature: -10 ÷ +40 ° C (for indoors);
- Degree of protection: IP20;
- Configuration from App View Wireless;
- Can be controlled from App VIEW and Alexa, Google Assistant and Siri voice assistants;
- Class II device.
Technical data Gateway Vimar 2 Modules Wiring Devices
- Group: bus systems for plants;
- Class: interface for system lines;
- EIB / KNX bus system: No;
- KNX radio bus system: No;
- Radio bus system: Yes;
- LON bus system: No;
- Powernet bus system: No;
- Other bus systems: others;
- Two way radio: Yes;
- Version: Bluetooth interface;
- Mounting Type: Recessed;
- Width in subdivision units: 2;
- Disassembly protection: No;
- With LED indicator: Yes;
- Updatable: Yes;
- Operating voltage: 220v;
- Protocol: others;
- Depending on the provider: No;
- Display: No;
- Web server: Yes;
- Radio interface: Yes;
- IR interface: No.
Connected device: Gateway for Civil Series Vimar online prices
- Vimar is the Italian company that produces home automation and electrical equipment : connected domestic ranges, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
- The Vimar Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
