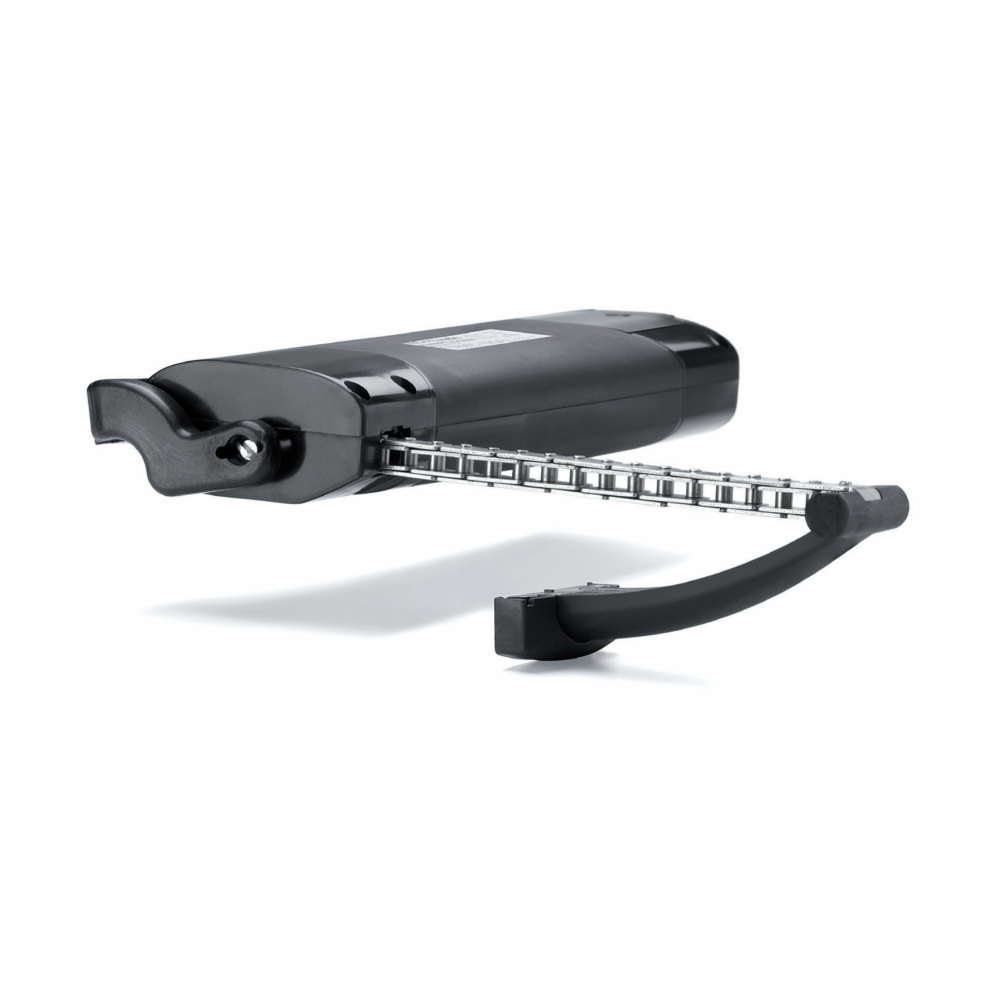

Smart Chain Actuator 110V Comunello Mowin Black Grey or White

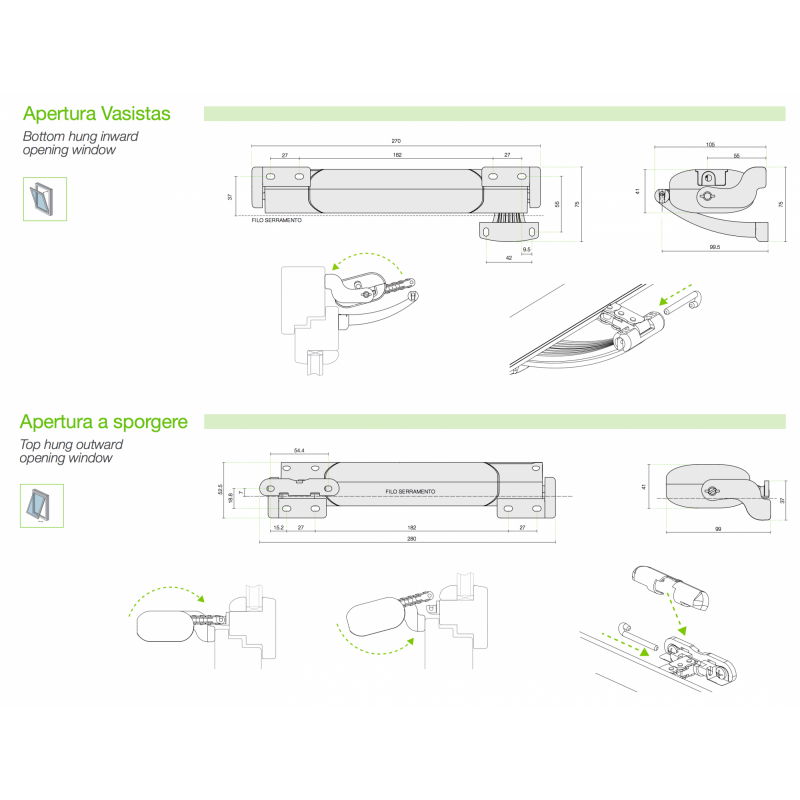

Chain actuator for opening and closing top-hung outward windows, shed, skylights and bottom-hung inward windows in wood, PVC and aluminium.
The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Smart actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.
Package contents: chain actuator provided with electric supply cable, support brackets, fixing brackets for top-hung and bottom-hung windows, drilling template included, multi-lingual user’s guide.
Technical features:
- Model: Smart 110V;
- VAC power supply: 110VAC;
- Service: S2 4min;
- Thrust force: 200N;
- Tension force: 250N;
- Idle translation speed: 16 mm / s;
- Degree of protection: IP20;
- Double insulation CA: Yes;
- VAC Power consumption: 0,29 A;
- Power: 22 W;
- Operating temperature: -5 ° / + 50 °;
- Strokes available: 180-380 mm;
- Stroke setting: by dip-switch combination;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Included cable: 0.5 m;
- Dimensions: 265x79x41 mm.

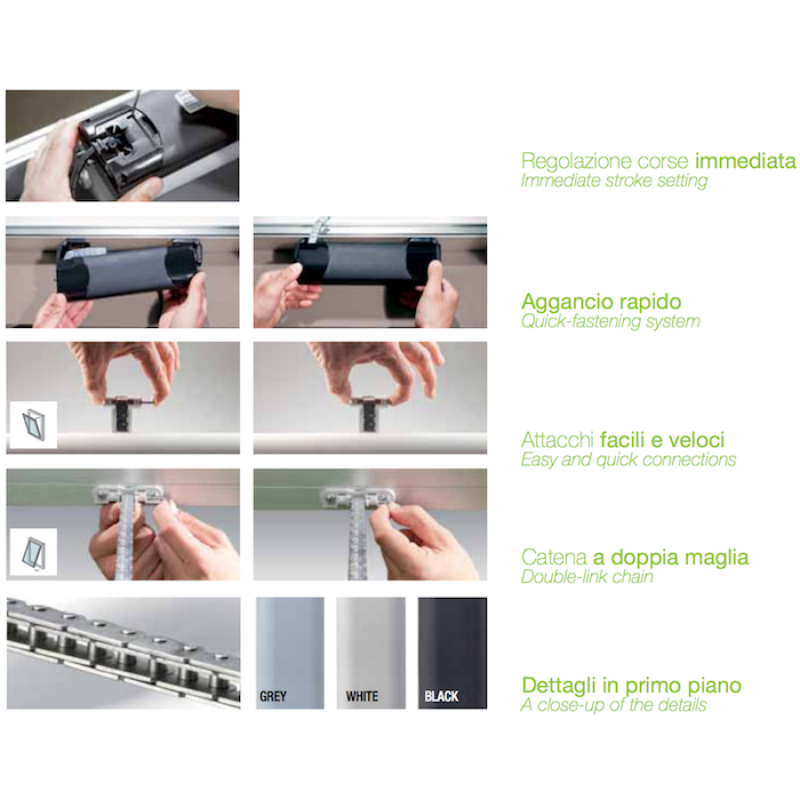

Immediate stroke setting - Easy and quick connections.
Double-link chain - A close-up of the details.
Comunello Mowin
The Mowin® project comes out of Comunello’s 45 years experience in mechanical opening systems for doors, windows and gates. The guarantee of high quality and durability associated with all Comunello products continues in the brand new Mowin® mechanical actuators, which, when combined with the fanatical attention was also devote to the development of electronic parts and programming, enable us to offer products that are stable and yet extremely flexible, suitable for a broad range of applications for windows, domes, skylights, brise soleil blades, awnings and roller shutters. Contemporary styling that reflects the utmost attention to detail means that the Mowin® series of products have exactly what it takes to assume a benchmark role also in the field of home automations.
Window automation: a new challenge in the consolidation of our position as a top player with a high class Italian touch.
