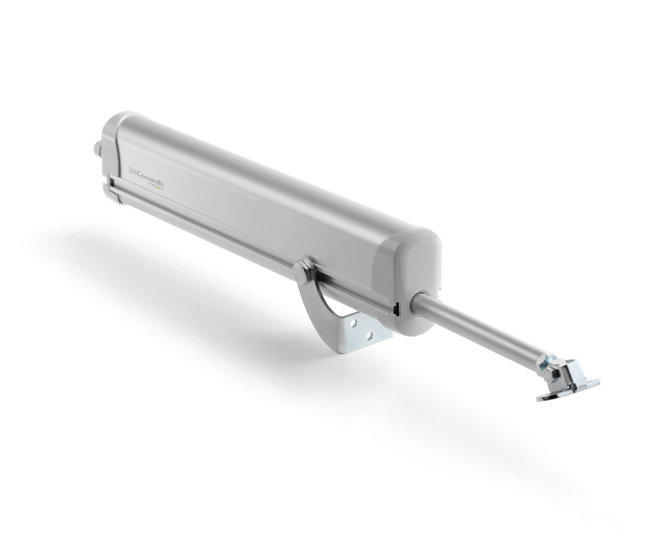

Spindle Actuator Raywin R20 200N 24V Comunello Mowin

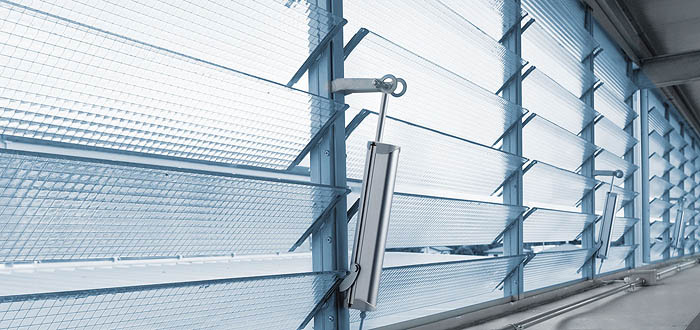

Spindle actuator for opening and closing top-hung outward windows, skylights, solar shading and domes.
The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Raywin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.
Package contents: rod type actuator provided with electric supply cable, anchor bracket and adjusting screws, fixing bracket for top-hung windows and domes and multi-lingual user’s guide.
Technical features:
- Model: RAYWIN R20 24V;
- Electrical power supply: 24 Vdc;
- Operation: S2 4min;
- Thrust force: 200N;
- Tension force: 200N;
- Stroke speed unloaded: 7 mm/s;
- Protection class: IP44;
- Double insulation: Low voltage;
- Power consumption: 0,7 A;
- Power: 41 W;
- Operating temperature: - 5 ° / + 50 °;
- Strokes available: 105 / 180 / 300 mm;
- Open limit switch: on impact;
- Closed limit switch: on impact;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: Yes (max 30 actuators);
- Synchronization: No;

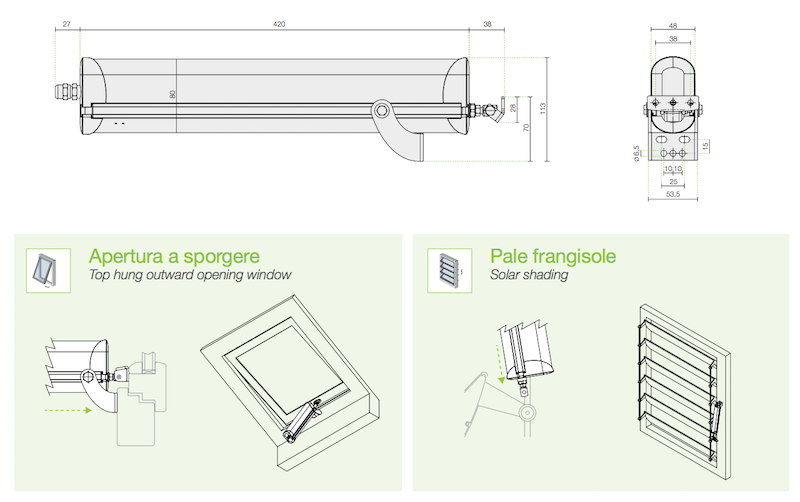

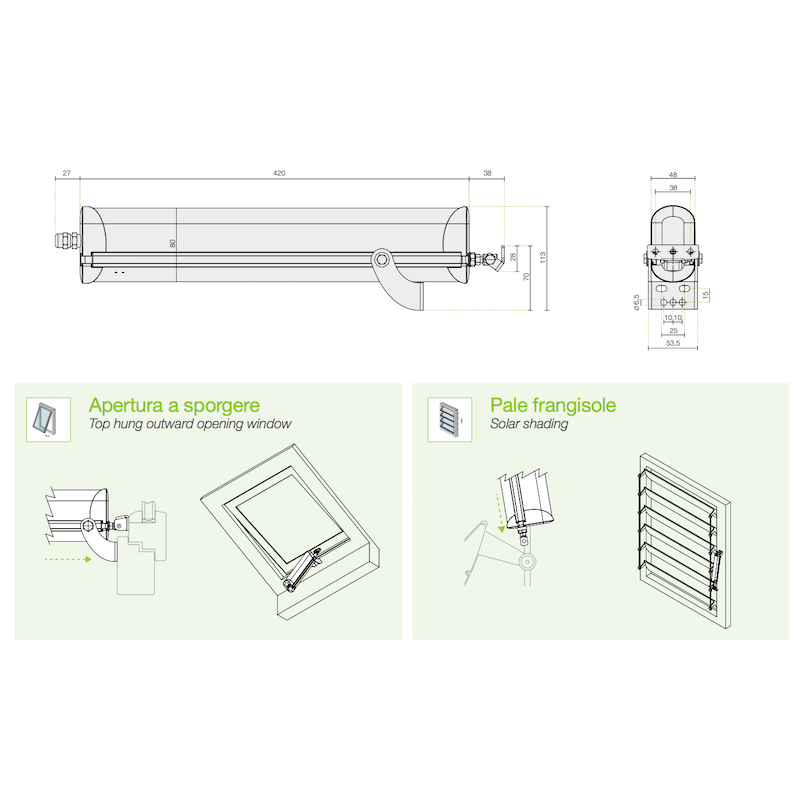

- Dimensions: 400/600x84x48 mm.

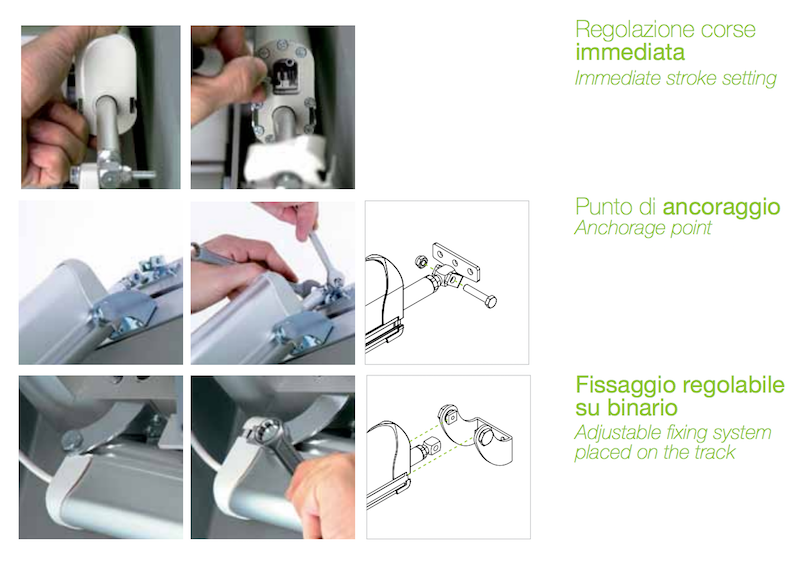

Immediate stroke setting - Anchorage point
Adjustable fixing system placed on the track.
